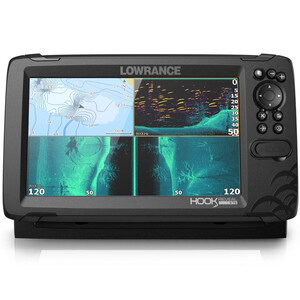

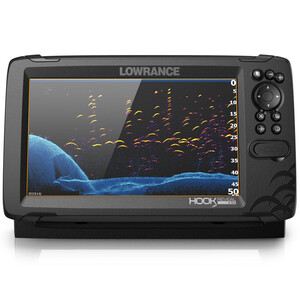

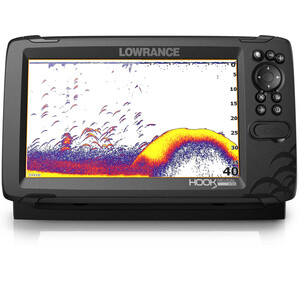

Hook Reveal 9 Tripleshot Chartplotter Fishfinder Combo
- Delivery & Returns
- Questions & Answers
The new HOOK Reveal range of fishfinder/chartplotter combination units features – FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display
Another new feature for the HOOK Reveal models is Genesis Live real–time mapping. Map uncharted areas and create your own contour charts down to 1/2 –foot contours.
Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. The TripleShot models offer High CHIRP, SideScan and DownScan Imaging™, also you can cover more water in less time with double the sonar coverage of other fishfinders.
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™
- Preloaded worldwide basemap
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
- Improved sonar performance in deep water
- Resolution: 800 x 480
- Screen Brightness: >1000 NITS
- Screen Size and Type: 9" (228 mm) SolarMAX Display
- Viewing Angles: 80° top/bottom, 85° left/right
- Power Consumption, typical: 1.25A @ 13VDC with backlight on full
- Recommended Fuse Rating: 5A
- Supply Voltage:12v DC (10.8-17VDC)
- Waterproof rating: IPX7 with card door closed
- Cartography included: C-Map World Base Map
- Cartography supported: C-MAP MAX N, MAX N+ , Navionics +
- External Storage: Micro SD Card(32 gb Max)
- GPS:1 Hz GPS GLONASS WAAS EGNOS MSAS
- Sonar: Integrated: CHIRP Broadband DownScan
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
- Compass Safe Distance - 300mm
- Dimensions (WxHxD): 277.3 mm x 175.2 mm x 112.3 mm
- Mounting Type: Gimbal Bracket Front Dash Flush Mount
- Weight: 0.86 kg
- Warranty Period: 1 Year
In The Box
- Hook Reveal 9
- Corner clips
- Mounting bracket
- Power cable
- Fuse and fuse holder
- Tripleshot transom mount transducer with 6m cable
