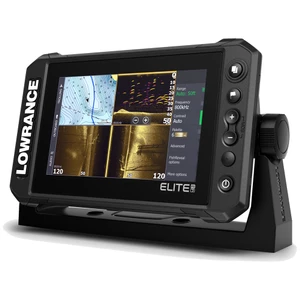

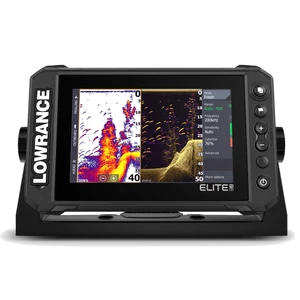

Lowrance Elite FS 7 Chartplotter & Fishfinder

SPECIAL OFFER - Buy select Chartplotter Fishfinders and get a C-map Discover Central/West Europe continental chart for less than half price. Discount applied at checkout. Offer Whilst Stocks Last.

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.

• CHIRP Sonar with FishReveal™
• ActiveTarget™ Live Sonar ready
• Active Imaging 3-in-1 ready
• FishReveal™
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP® Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Radar compatible
• AIS compatible

Find More Fish with Proven Lowrance Sonar

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

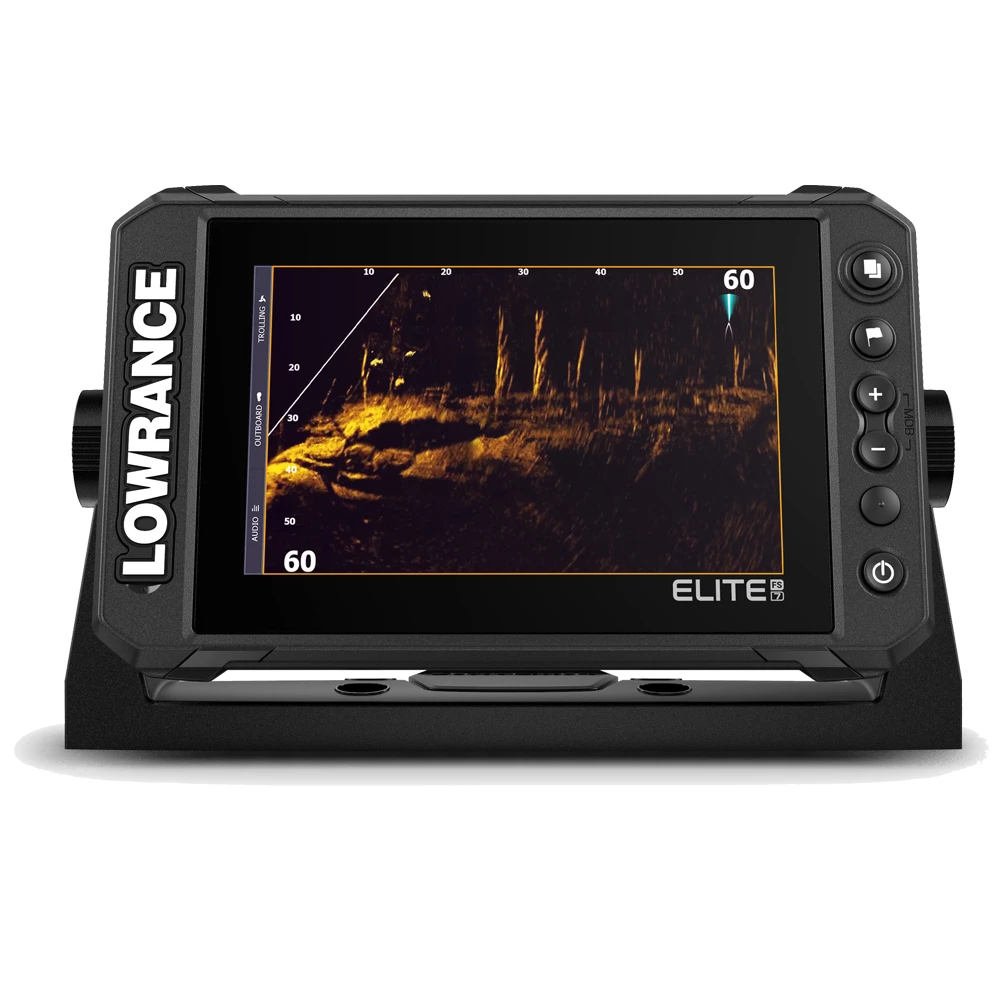

Target Fish Live with New ActiveTarget™ Live Sonar

Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Multitude of Chart Options

Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP®, Navionics® and more.

Specifications

• Cartography included: C-MAP ROW Basemap
• Cartography supported: C-MAP (MAX N, MAX N+, Reveal, Discoverer) & C-MAP Genesis: Navionics (Gold, NAV+ Platinum+)
• Resolution 800x480
• External Storage: 1 micro SD card up to 32GB
• Screen Brightness >1200 nits
• Size and Type 7.00" (178mm) WVGA color TFT LCD
• Viewing Angles 50° top60°bottom70° left/right
• Power Consumption, typical: 2.0A @ 13VDC with backlight on full
• Recommended Fuse Rating: 3A
• Supply Voltage: 12v DC (10.8-17VDC)

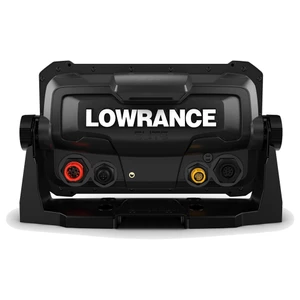

• Connections: NMEA 0183 (with optional Cable Sku 210107), NMEA 2000, Ethernet, Bluetooth, WiFi
• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail

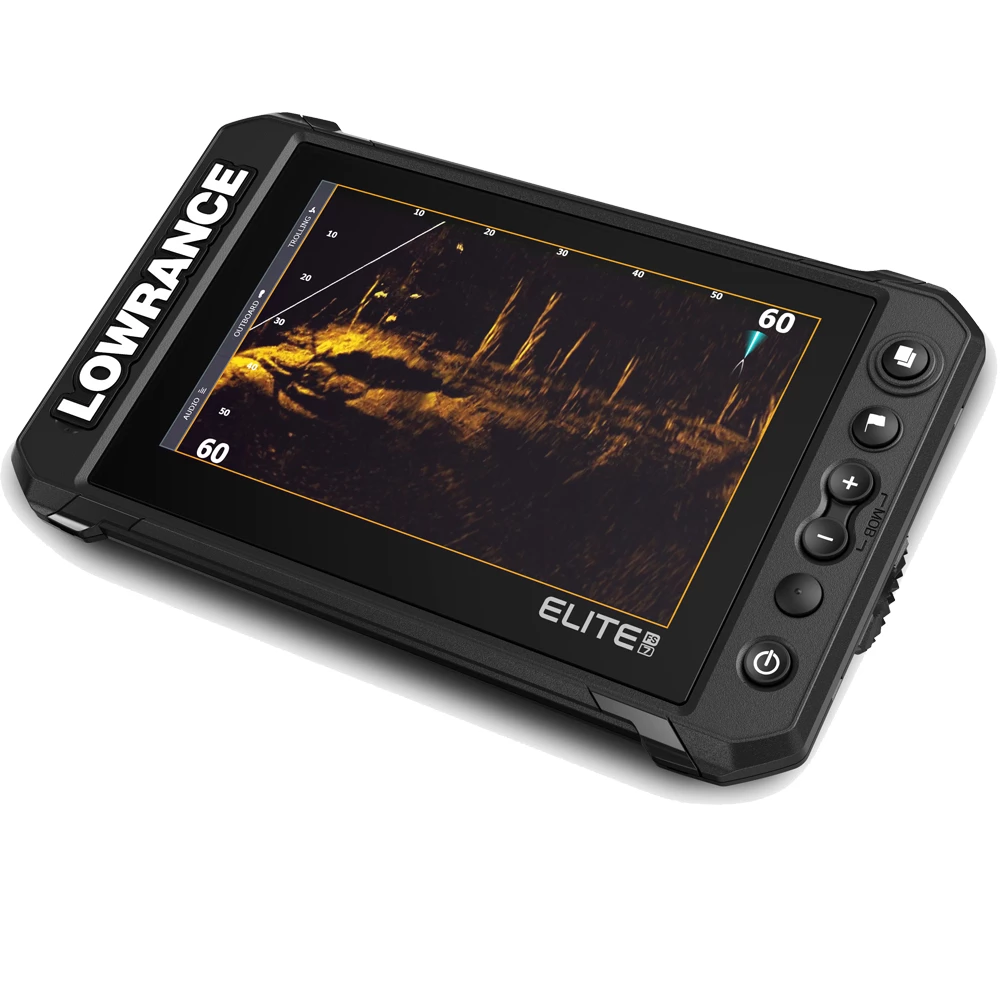

• Mounting Type: Gimbal Bracket or Dash Flush Mount
• GPS Receiver Channels: 16
• GPS Position Accuracy: 20m
• GPS Time to First Fix: 30s
• GPS Update rate: 10 Hz
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Waterproof rating: IPX7 with card door closed
• Compass Safe Distance: 12" (300mm)
• Weight: 1.90 lbs (0.90 kg)
• Dimensions (on bracket & with cable in rear): 265.6W x 162.4 H x108.4D mm
• Dimensions (no bracket): 237.8W x 147.4H x 108.4D mm

In The Box

• Elite FS unit
• Gimbal bracket kit
• Quick start manual
• User manual
• Flush mount template
• Sun cover
• Power cable

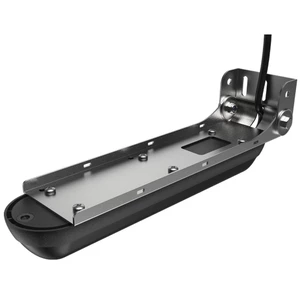

• Active imaging 3in1 transducer ( 3 in 1 model)
• HDI skimmer transducer (HDI model)
