Elite-5 Ti Combo with TotalScan Transducer
Elite-5 Ti Combo with TotalScan Transducer
Lowrance

Elite-5 Ti Combo with TotalScan Transducer

Catalogue Code: 210372
£ 499.95 In Stock
Save £ 330.04 RRP £ 829.99
See Product Description Add to Wish List
  • Order now for dispatch next working day
  • Ask a question
Optional Extras Tick to add optional extras to your basket
9 pin transducer extension cable 10ft
9 pin transducer extension cable 10ft £74.95 Save £7.05 RRP £82.00
NMEA 2000 Backbone Kit
NMEA 2000 Backbone Kit £69.95 Save £12.05 RRP £82.00

View all 5 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
Description

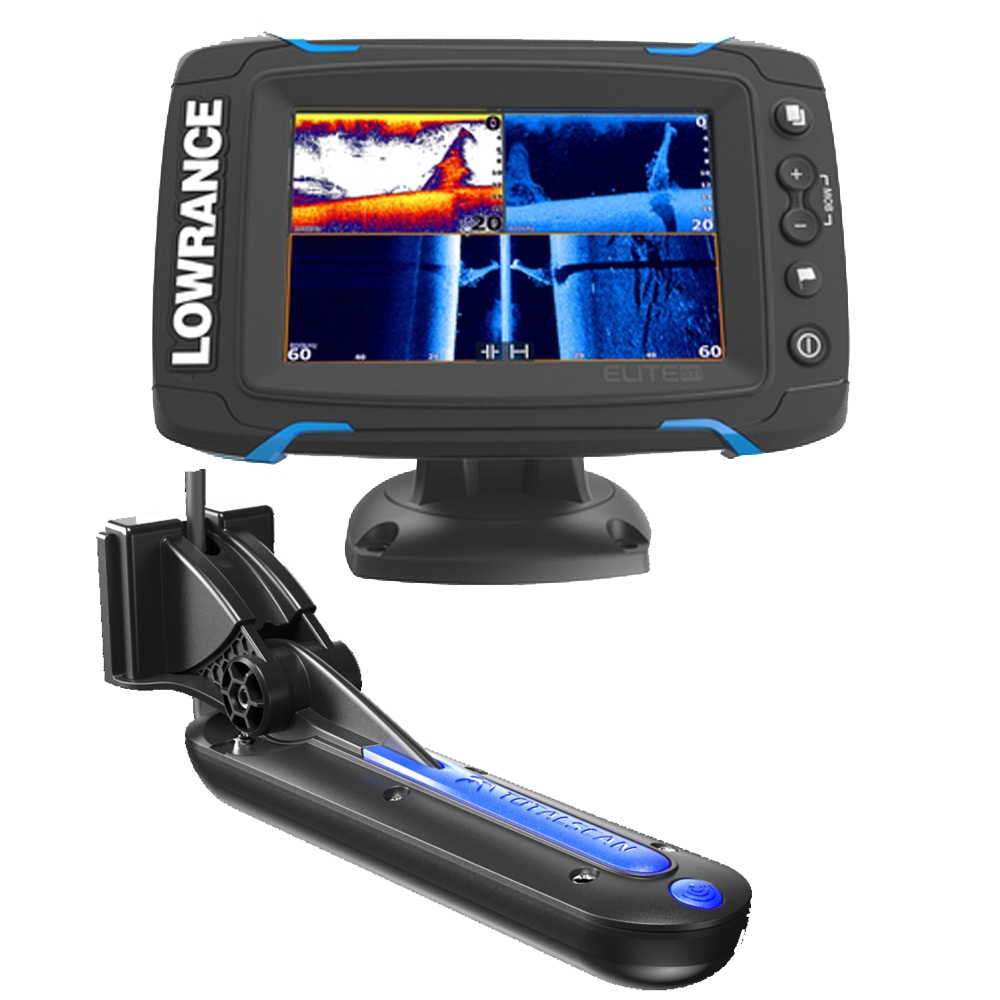

Lowrance Elite-5 Ti Combo with TotalScan Transducer

The Lowrance® Elite-5Ti is a touchscreen fishfinder/chartplotter that matches high-end functions and features with powerful performance - all at an affordable price.



Sporting a five-inch, high-resolution touchscreen display, the Elite-5 Ti has your sonar needs covered with StructureScan® HD compatibility and support for Low/Mid/High CHIRP and 83/200 /455/800kHz frequencies. It has a built-in GPS antenna and trusted Lowrance navigation features, allowing you to navigate with ease. The Elite-5 Ti also features integrated Bluetooth® and wireless connectivity that not only allows you to download software updates directly to the unit, but gives you the capability to download Insight Genesis custom maps to the unit - for immediate use - directly from the water.


Key Features



  • High resolution display
    Lowrance-exclusive, high-resolution, 5-inch, LED-backlit color display

  • Easy-to-use touchscreen
    Touchscreen provides fast, fingertip access to all Elite-5 Ti features

  • CHIRP Sonar, StructureScan® and DownScan Imaging™
    Top-of-the line sonar technologies provide the best possible view of the underwater environment beneath your boat. StructureScan requires optional TotalScan transducer.

  • TrackBack™
    Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint

  • Internal GPS antenna
    Highly accurate, built-in GPS antenna

  • Optional chart upgrades
    Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N.

  • Built-in wireless connectivity
    Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners

  • microSD card slot

  • Quick Release bracket



Specifications




  • Operating voltage: 12Vdc

  • Screen resolution: 480x480 pixels

  • Waterproof: IPX7

  • Size: 134Hx176Wx62D mm

  • Waypoints: 3000.Routes: 100

  • NMEA0183:1 Port

  • Depth Alarm Yes

  • EchoSounder Frequencies 83/200 kHz + 455/800 kHz

  • Sonar Max Power : 500W

  • Shallow Alarm: Yes

  • Max Depth DownScan Imaging at 455 kHz: Max 300 ft / 91 m

  • CHIRP Sonar High Range/200 kHz: 1,000 ft / 305 m CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m

  • GPS Antenna: Built in 10Hz GPS/GLONASS



In the box




  • Elite 5 Ti display

  • Mounting bracket

  • TotalScan™ Skimmer Mid/High 83/200 455/800 Transducer

  • Operating and installation manual

  • Flush mount template

  • Power cable with fuse holder and fuse
