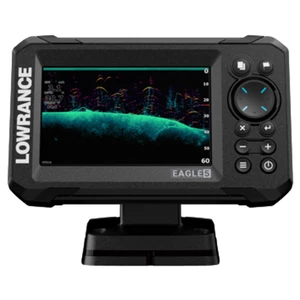

Lowrance Eagle 5 Chartplotter Fishfinder Combo

SPECIAL OFFER - Buy select Chartplotter Fishfinders and get a C-map Discover Central/West Europe continental chart for less than half price. Discount applied at checkout. Offer Whilst Stocks Last.

Eagle® was born to make fishing as simple and enjoyable as possible.

Easy to use and quick to install, Eagle features the newly designed SplitShot™ HD sonar with FishReveal™ technology and autotuning for a quick and optimal set up.

A new IPS screen provides higher resolution and visibility from all angles, even with polarized sunglasses. Whilst detailed C-MAP® charting, along with Genesis Live, allows you to quickly discover and navigate to the best fishing spots.

With truly eagle-like vision, it really is so easy to find and see fish.

Enhanced Sonar

The newly designed SplitShot™ HD offer improved clarity, depth, and sensitivity, leading to better performance under the surface. And FishReveal™ on DownScan and CHIRP makes it easier than ever before to tell the fish from the weeds.

• Enhanced SplitShot™ HD transducer
• Autotuning sonar
• Detailed C-MAP® charts feat. Genesis® Live
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging color palettes
• Available with or without a Splitshot Transducer

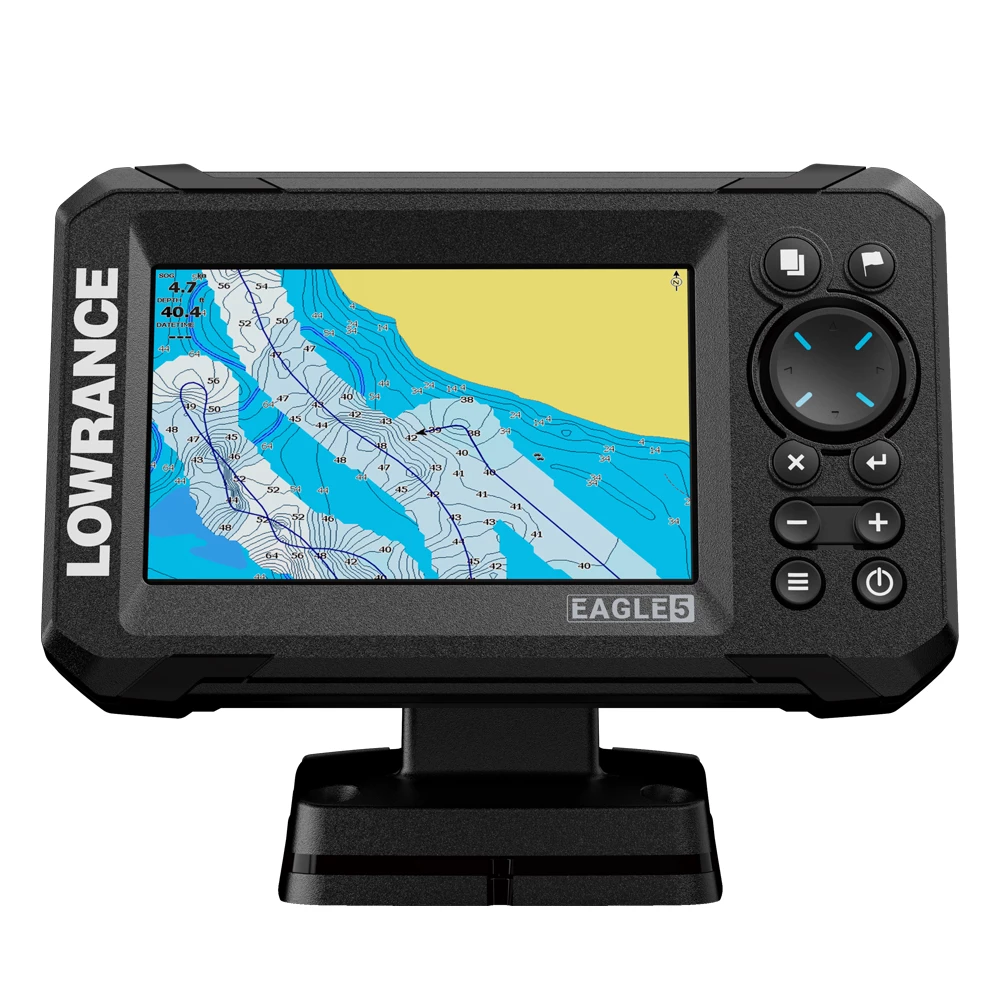

Mapping

Eagle comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™. With the ability to create custom ½-foot contour maps of your local lake or uncharted water – in real time - with Genesis Live, you have all the detail you need to discover and navigate to the best fishing spots, faster.

Designed to Fish

With a new, rugged and modern design built exclusively for anglers, by anglers, Eagle features a new IPS screen for improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight. A new range of imaging colour palettes lets you adapt the display for changing conditions. And the new 4x model provides total flexibility with portrait orientation and true-scroll sonar.

Connect & Cast

Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself. Plus, an improved twist-locking connector allows for easy and reliable installation and removal, making Eagle a great portable solution for any type of fishing.

Lowrance Eagle® 5 Specifications

Display

• Resolution: 800 x 480
• Screen Brightness: 1000 NITS
• Size and Type: 5" IPS Display
• Viewing Angles: 80° top/bottom, 80° left/right

Electrical

• Power Consumption, typical: 280 mA @ 12 V DC with backlight on full
• Recommended Fuse Rating: 3A
• Supply Voltage: 12v DC (10.8-17VDC)
• Humidity: 60°C, 95% relative humidity (RH) for 48 hours

Environment

• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Waterproof rating: IPX7 with card door closed

GPS

• Correction: SBAS
• Time to First Fix: 45s

MFD

• Cartography included: Worldwide basemap chart (Not suitable for Navigation)
• Cartography supported: C-MAP® DISCOVER™ & NAVIONICS+
• External Storage: 1 slot (microSD® 32 GB maximum)
• Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
• Compass Safe Distance: 300mm

Physical

• Dimensions: (W x H x D): 182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 (4.35")
• Mounting Type: Gimbal bracket or dash mount
• Weight: 0.46 kg (1.01 lb)

In The Box

• Eagle 5 Display

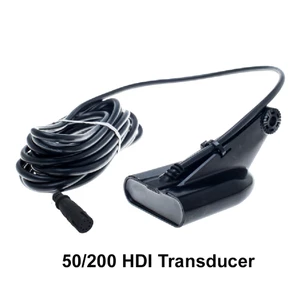

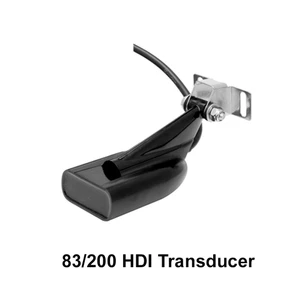

• SplitShot HD Transducer (only with Splitshot model)
• Bullet/SplitShot™ Transom Bracket
• Power Cable, with fuse and connectors
• Eagle 5 Bracket and mounting hardware
