ActiveTarget Live Sonar System
- Delivery & Returns
Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.
Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.
ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- View the water column 18 degrees side-to-side and 135 degrees top-to bottom.
- Use for seeing fish and structure directly in front of the transducer
- Know the depth of the fish and structure to target your next cast.
- View the water column 18 degrees side-to-side and 135 front-to-back.
- Use for vertical fishing to see what is below the transducer.
- What your lure and fish movements in real time.
- Put the lure in front of the fish and watch it strike.
- View the water column 135 degrees side-to-sie and 18 degrees top-to bottom.
- Use to scan large areas for fish and structure
- Search for schooling fish and know the direction of your next cast
- Connectivity: Ethernet
- Power Consumption, typical: 1.5A @ 13.8VDC
- Recommended Fuse Rating: 3A
- Supply Voltage: 10.8 VDC - 31.2 VDC
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Waterproof rating: IP67
- Dimensions (W x H x D) Module:(219.3mm x 192.1mm x 72.9mm: Transducer: 149.8mm x 82.4mm x 58.0mm
- Weight Module: 1.86 kg: Transducer: 1.21 kg
In the Box

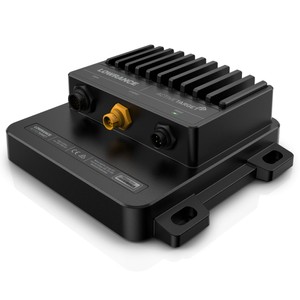

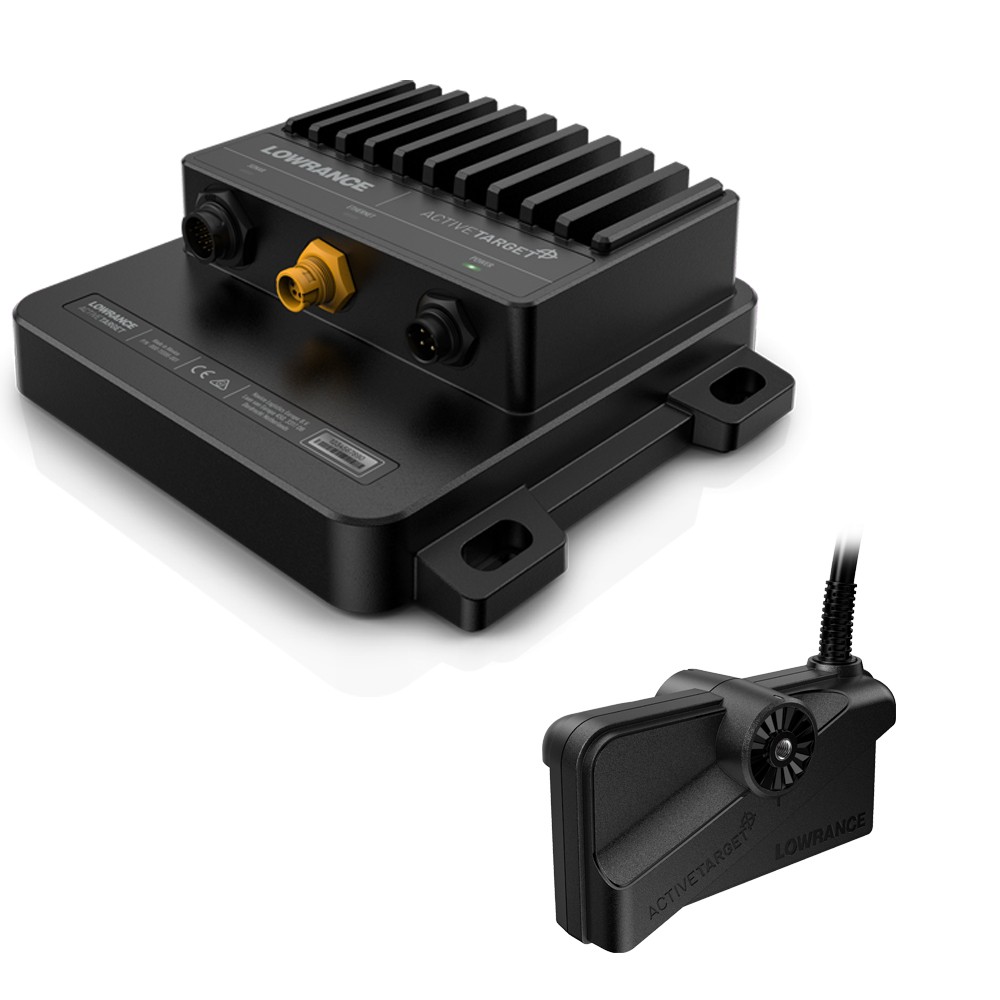

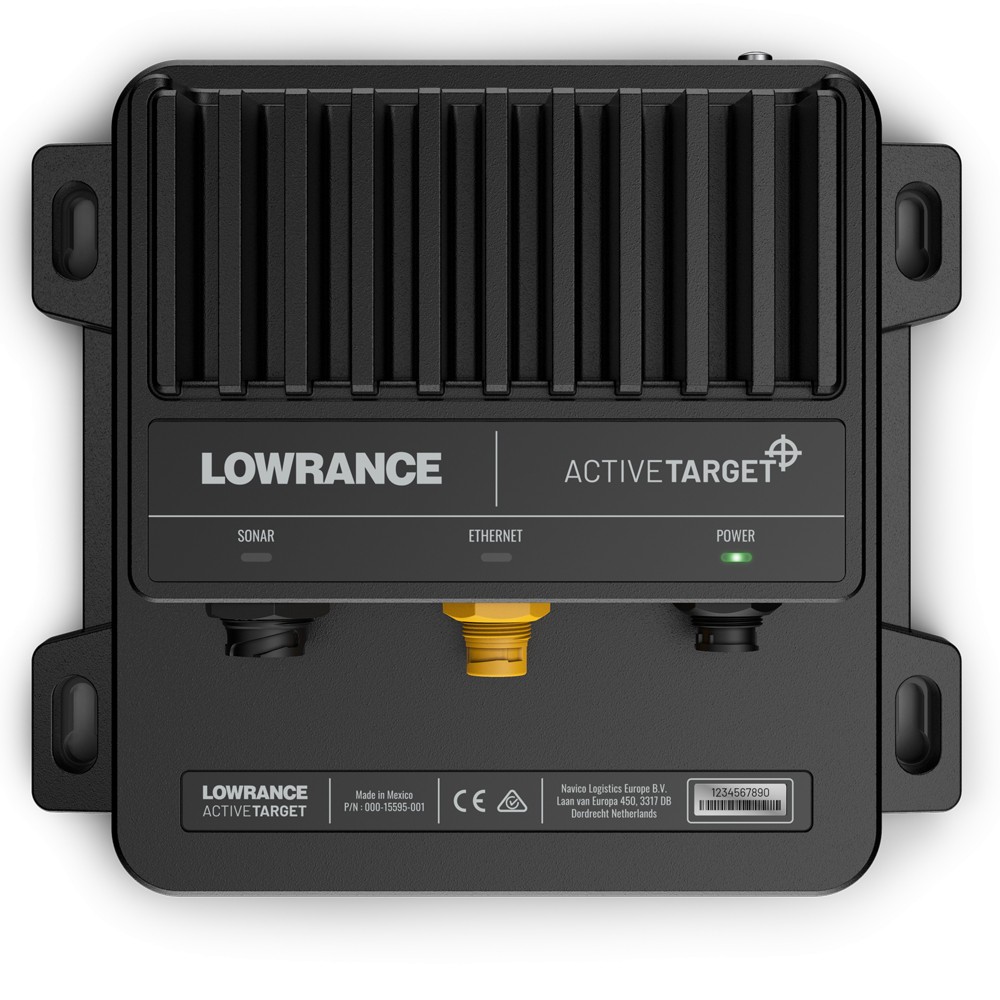

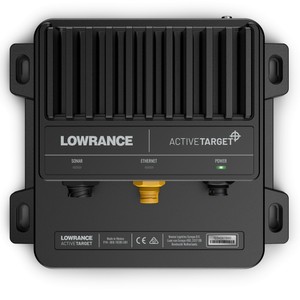

- ActiveTarget Module

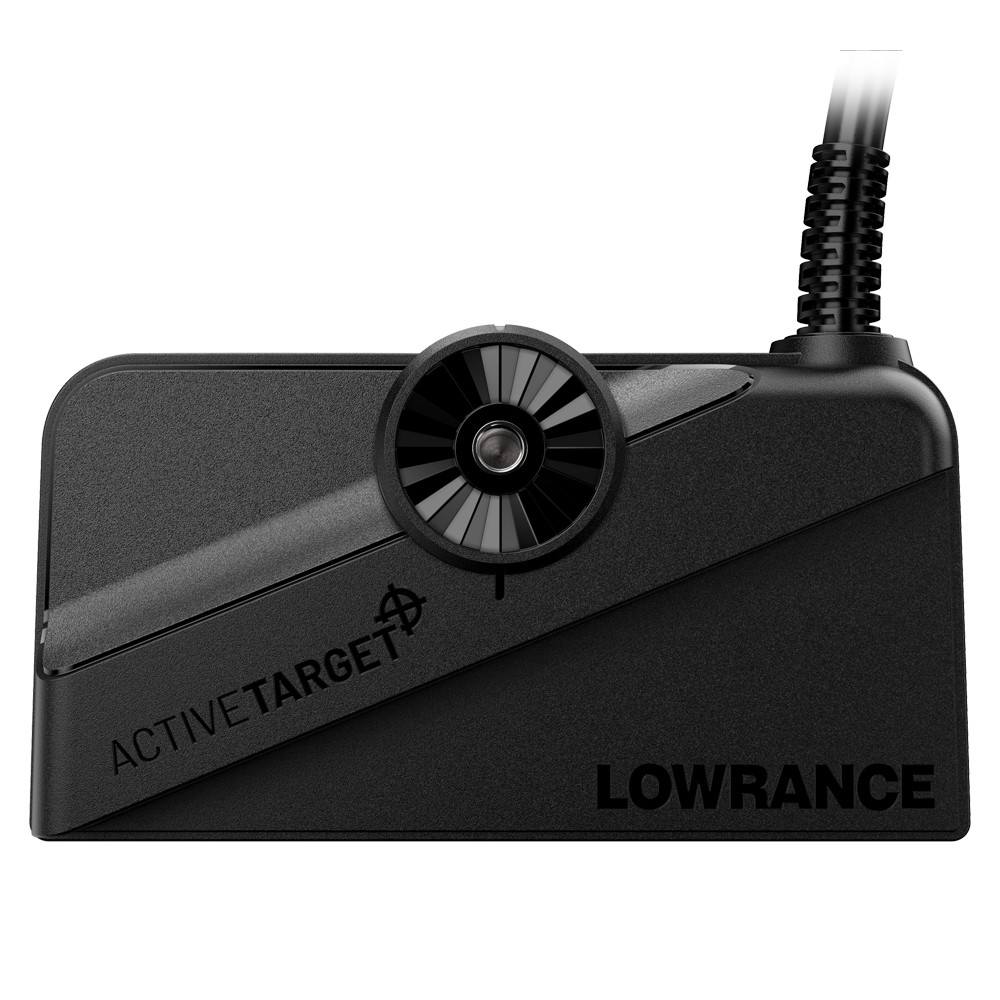

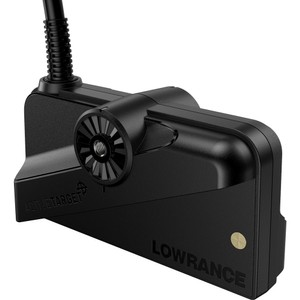

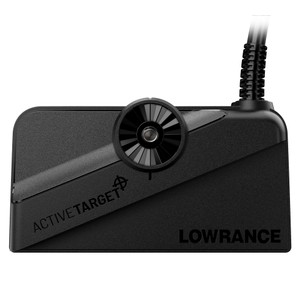

- ActiveTarget Transducer with 25ft Cable
- Shaft Mounting Hardware (Forward/Down/Scout Views)
- Trolling Motor Mount (Forward/Down Views)
- Trolling Motor Mount (Scout View)
- 15ft Ethernet Cable
- 4-Pin Power cable
- User Manual
