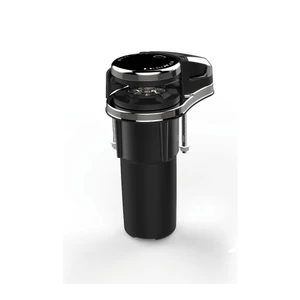

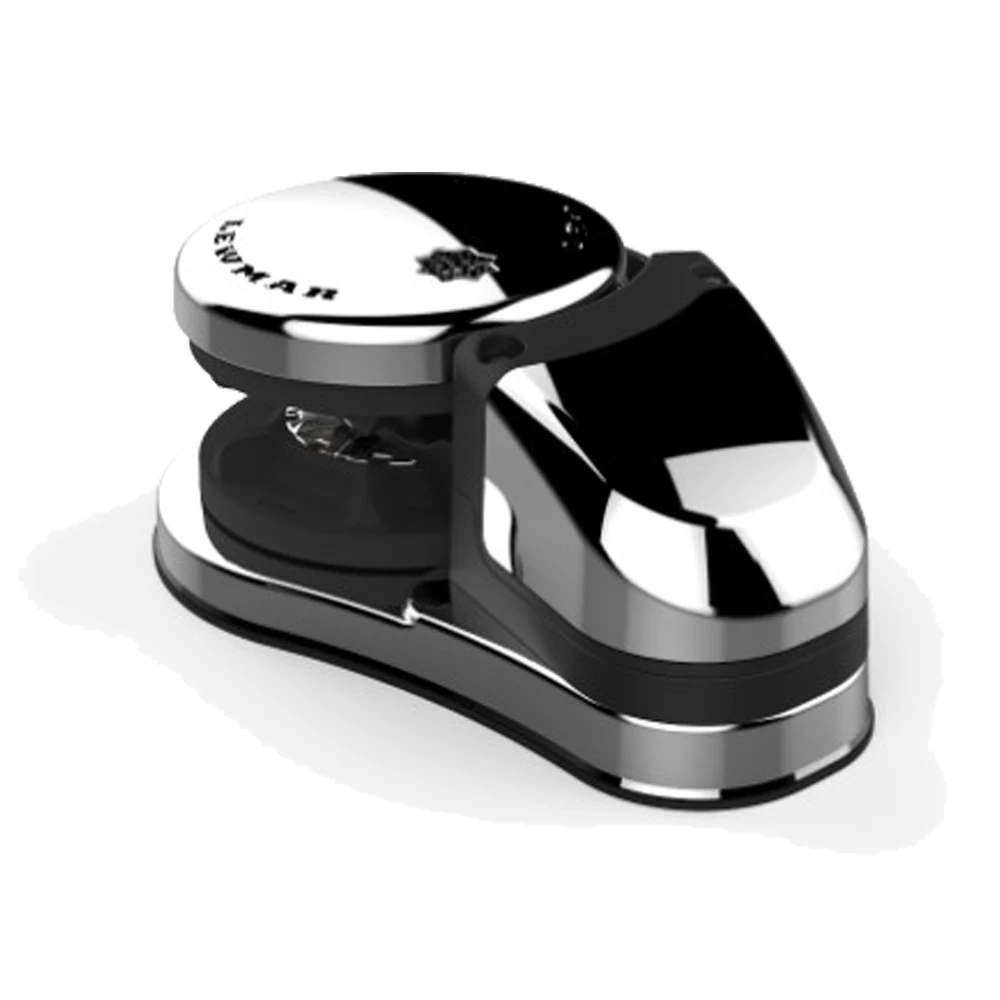

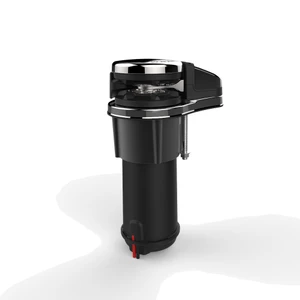

VX1L 800W Vertical Windlass
- Delivery & Returns
The VX1L is compact and simple to install, without compromising performance and freeing up space below decks. The VX1L offers a maximum pull of 920kg, providing strong performance and robust design for boats up to 36ft. The VX1L consists of a cast aluminum core with composite outer and finished in a stainless steel
Featuring Hybrid Polymer Gypsy
Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together
with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures a smooth
operation, while still offering the long-life durability of the traditional metal gypsy
The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation,
while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode
such as with a conventional gypsies
- Rope/chain gypsy accepts 8mm DIN766 chain and 12-16mm rope
- Max pull: 920 Kg
- Working load: 230Kg
- Max line speed: 21m/min
- Nominal current: 105A
- Circuit breaker: 70A
- Weight: 8Kg
- Size: Deck unit (mm) 201L x 132W x 79H
- Motor depth below deck: 208mm
- Manual clutch release
- Stylish stainless steel & composite construction
- Same footprint as Lewmar V700 model
In The Box
- Deck unit & motor gearbox
- Rocker switch
- Circuit breaker
