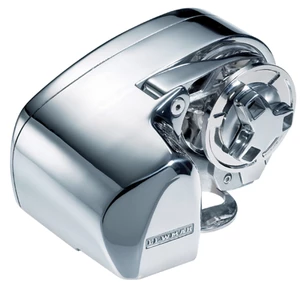

Lewmar Pro-Series 1000 Windlass Kit 12V 8mm

INCLUDES FREE WIRED REMOTE CONTROL (P/NO 841230) - ITEM WILL BE ADDED AT THE CHECKOUT STAGE AUTOMATICALLY

The Lewmar Pro‑Series 1000 is a durable stainless‑steel windlass designed for cruising yachts and motorboats up to 12 m. Built with a 100% 316 stainless steel housing, control arm and stripper, it delivers reliable rope‑and‑chain handling for regular anchoring. Powered retrieval is supported by a built‑in manual recovery system, giving reassurance if electrical power is unavailable.

The rope/chain gypsy accepts 8 mm DIN766 chain and 14–16 mm three‑strand rope, making it suitable for a wide range of cruising setups. With fast line speed, strong pulling power and a compact footprint, the Pro‑Series 1000 is a practical upgrade for boats that anchor frequently.

Lewmar Part No: 6657011198‑311

Key Features

• 316 stainless steel housing, control arm and stripper
• Rope/chain gypsy — 8 mm DIN766 chain, 14–16 mm 3‑strand rope
• Manual recovery system — Backup operation in an emergency
• Fast line speed — Up to 32 m/min
• Typical max pull: 454 kg
• Working load: 113 kg
• Compact footprint: 245 × 178 × 146 mm
• Suitable for boats up to 12 m (38 ft)
• Supplied with switch, solenoid, circuit breaker and fixings

Technical Specifications

• Motor: 12 V, 700 W
• Typical max pull: 454 kg
• Max line speed: 32 m/min
• Normal line speed: 27 m/min
• Working load: 113 kg
• Normal current draw: 50 A
• Circuit breaker: 70 A (slow‑blow)
• Dimensions: 245 × 178 × 146 mm

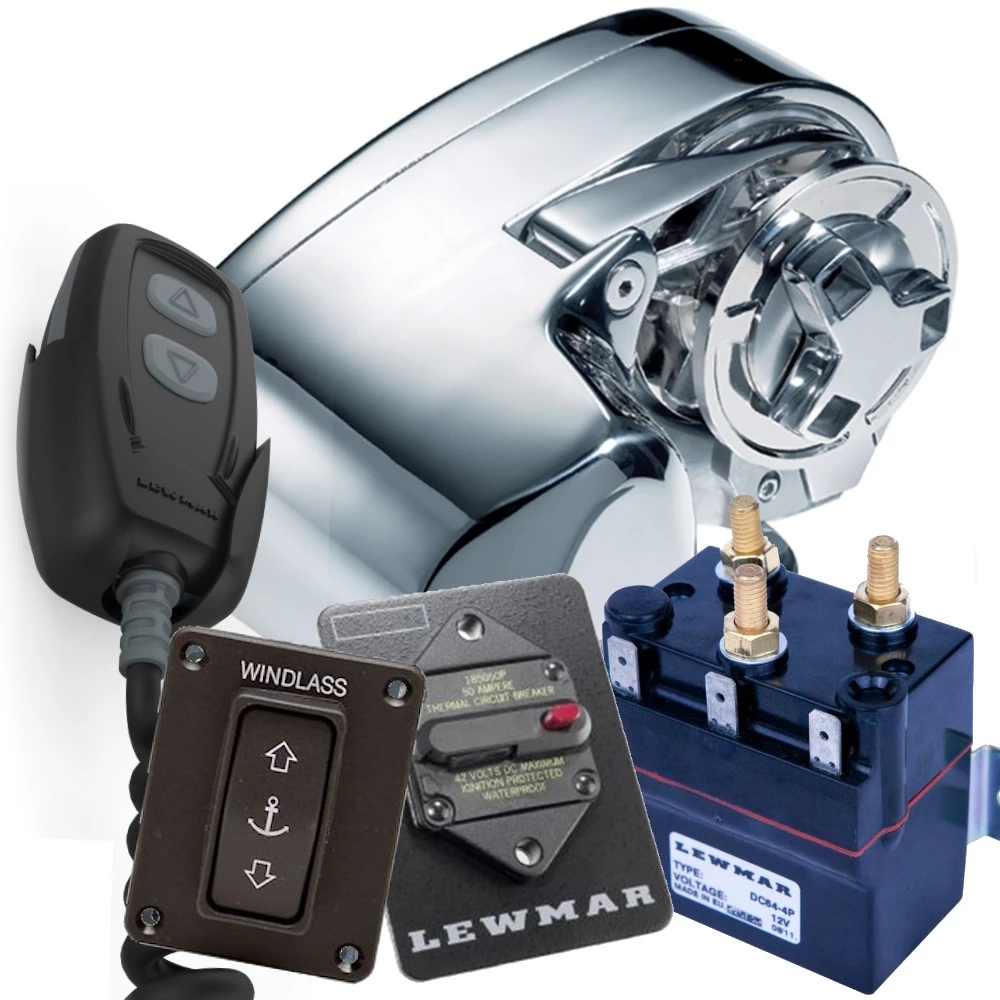

In the Box:

• Pro‑Series 1000 windlass
• Gasket
• Fixing studs
• Spanner/clutch lever
• Toggle switch
• Solenoid (68000939)
• Circuit breaker
• Documentation
• 39
• Circuit Breaker
• Documentation

Download Lewmar Pro-Series /Fish Windlasses Product Manual here.

Please Note: This Product Manual covers a number of different Pro-Series models, please make sure that you select the correct information for your Windlass.

Who is the Lewmar Pro‑Series 1000 Windlass Kit 12V for?

The Lewmar Pro‑Series 1000 Windlass Kit 12V is designed for cruising yachts and motorboats up to 12 m that need a strong, stainless‑steel windlass for regular anchoring. It suits owners looking for powered retrieval, reliable rope‑and‑chain handling and a compact unit with a manual recovery option.
