Lewmar Medium Profile Hatch
- Get it on Wednesday, 11th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
- This is a special order product and may experience shipping delays. Please call our Mail Order team to confirm delivery lead time.
- Ask a question
- Description
- Videos
- Availability
- Delivery & Returns
- Reviews
LEWMAR SPECIAL OFFER - Free Lewmar Hatch Cover with popular Lewmar Low, Medium and Ocean Hatches. Select your free Lewmar hatch cover here. While stocks last.

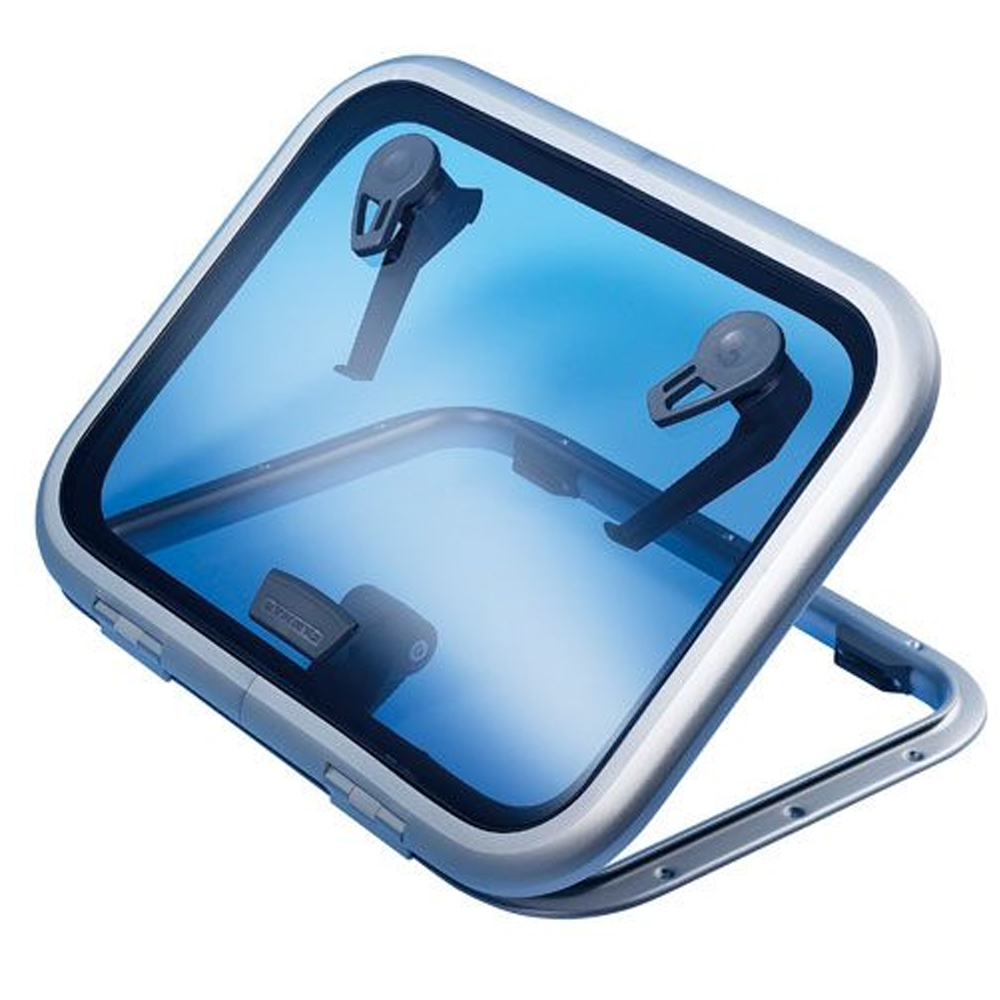

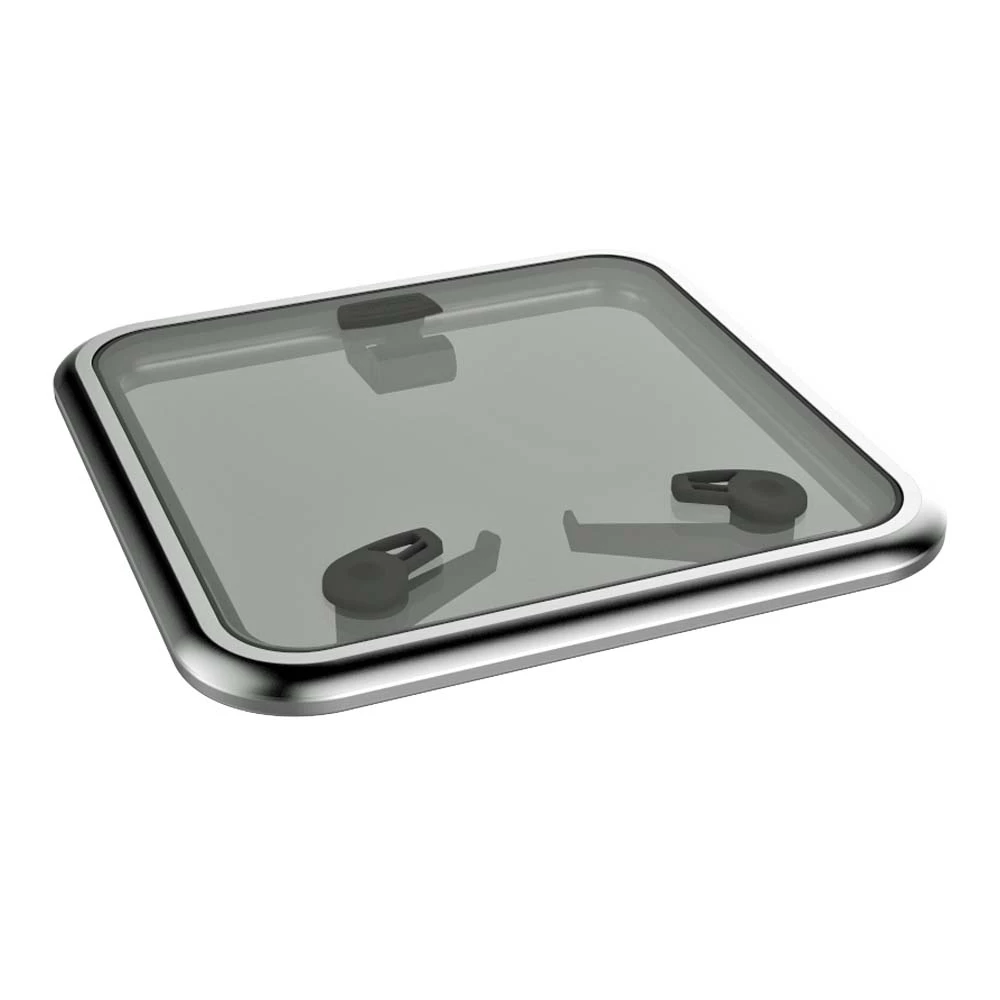

Lewmar Medium Profile Hatch - A robust hatch with elegant styling that is suited to both yacht and powerboat installation.
Fitted with a thicker 12mm thick acrylic and constructed with a sturdy anodised aluminium frame, the medium profile hatch is ideal as a foredeck hatch for larger offshore yachts.
They have two internal locking handles and also two external handles that allow hatch to be opened from the outside (when internal handles are unlocked). The lid is self supporting between 30 and 90 degrees and also opens to 180 degrees for easy access.
Lewmar's unque sealing system features split frame lid design allows simple acrylic and seal replacement.
Features and Specifications
- Outside handles allow hatch to be open from on deck if it not locked
- Friction levels hold the hatch lid open up to 95°
- Anodised aluminium frame for corrosion resistance
- Acrylic colour: smoke grey
- Certified for installation on Deck, Coachroof, Cockpit and Transom (CE Area 2A)

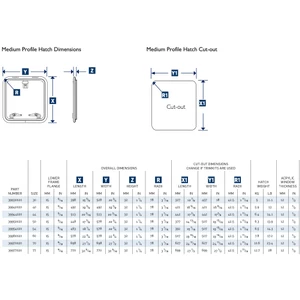

Available Sizes
Size 30 (P/No. 850866)
- Cut out size 327x457 Radii 42.5mm*
- Overall size 397x527 Radii 78mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 5kg
- Cut out size 442x442 Radii 42.5mm*
- Overall size 513x513 Radii 78mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 6.4kg
Size 50 (P/No. 851479)
- Cut out size 377x507 Radii 42.5mm*
- Overall size 448x578 Radii 72.5mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 6.3kg
Size 54 (P/No. 850867)
- Cut out size 392x507 Radii 42.5mm*
- Overall size 463x578 Radii 78mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 6.5kg
Size 60 (P/No. 850865)
- Cut out size 507x507 Radii 42.5mm*
- Overall size 578x578 Radii 78mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 7.8kg
Size 70 (P/No. 851480)
- Cut out size 627x627 Radii 42.5mm*
- Overall size 698x698 Radii 72.5mm
- Height from deck: 32mm
- Lower frame flange depth 15mm
- Hatch Weight 10.6kg
* Cut-out size changes if Trimkits are used
