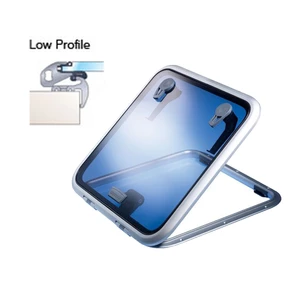

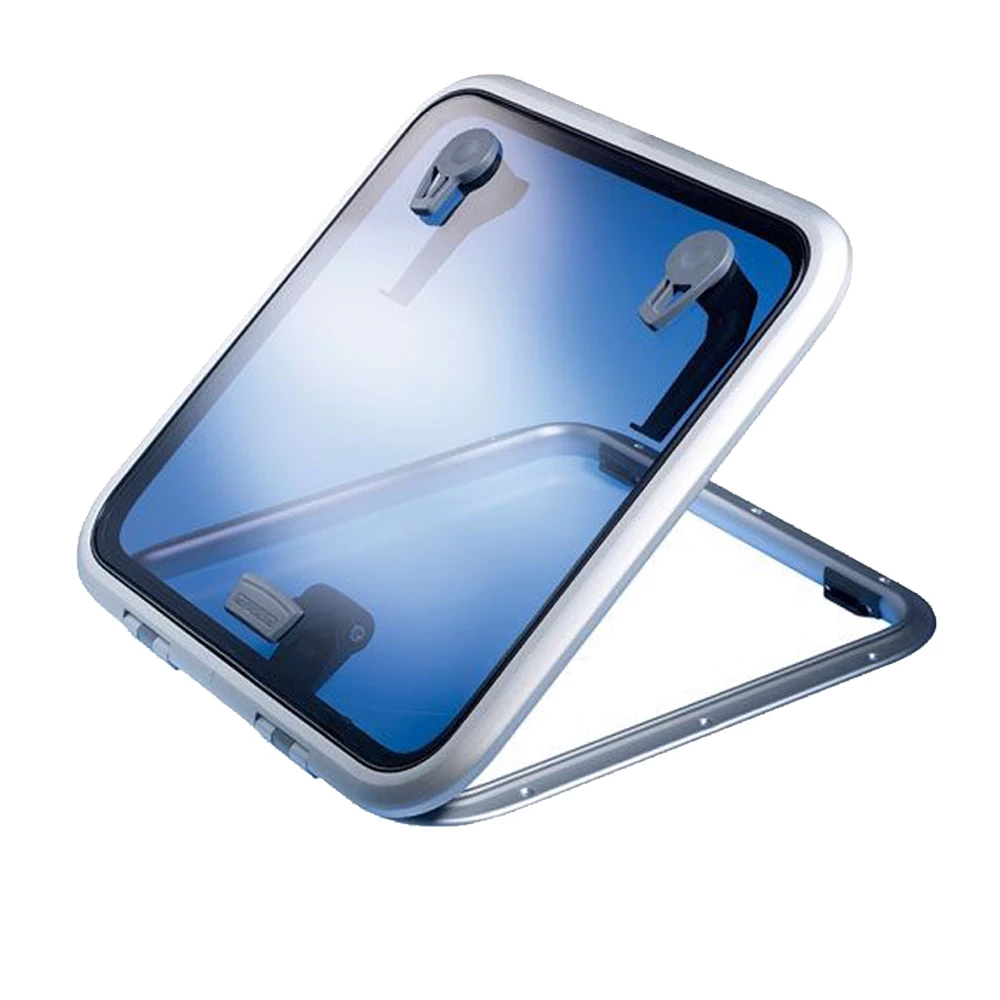

Lewmar Low Profile Hatches

Low Profile Hatches by Lewmar have been styled in a way that leaves it looking subtle and sleek, ideal for use on a powerboat. The smaller ventilation hatches are suitable for any deck location on a sailing boat, while the larger sizes sizes can be used as a foredeck hatch on smaller to mid-size yachts.

Sizes 44 and above meet the minimum size requirements for ISO 9094 escape hatches.

All are silver anodised frames and grey smoked acrylic.

Features

  • Outside handles allow the hatch to be opened from on deck if it is not locked
  • Opens up to 180°
  • Friction levers hold the lid open in any position up to 95°
  • Anodised frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling
  • Doesn’t require deck recess to install
  • Unique sealing system allowing easy acrylic replacement
  • Acrylic thickness: 8mm

Check out the Lewmar Low Profile Hatch guide

Available in a range of sizes

  • Code: 851490 - Size 00
    • Overall Size: 281x281mm
    • Cut Out: 211x211mm
    • Height: 25mm
  • Code: 851485 (Lewmar code 39903030) - Size 03
    • Overall Size: 246x301mm
    • Cut Out: 176x231mm
    • Height: 25mm
  • Code: 851491 - Size 10
    • Overall Size: 330x330mm
    • Cut Out: 260x260mm
    • Height: 25mm
  • Code: L39920030 - Size 20
    • Overall Size: 417x272mm
    • Cut Out: 347x202mm
    • Height: 25mm
  • Code: 851069 - Size 30
    • Overall Size: 527x397mm
    • Cut Out: 457x327mm
    • Height: 25mm
  • Code: 851486 (Lewmar Code 39940030) - Size 40
    • Overall Size: 491x491mm
    • Cut Out: 421x421mm
    • Height: 25mm
  • Code: 851070 - Size 44
    • Overall Size: 512x512mm
    • Cut Out: 442x442mm
    • Height: 25mm
  • Code: 851487 (Lewmar Code 39950030) - Size 50
    • Overall Size: 447x557mm
    • Cut Out: 377x507mm
    • Height: 25mm
  • Code: 851488 (Lewmar Code 39954030) - Size 54
    • Overall Size: 462x577mm
    • Cut Out: 392x507mm
    • Height: 25mm
  • Code: 851071 - Size 60
    • Overall Size: 577x577mm
    • Cut Out: 507x507mm
    • Height: 25mm
  • Code: 851489 (Lewmar Code 39965030) - Size 65
    • Overall Size (mm): 560x560min/675max (tapered shape)

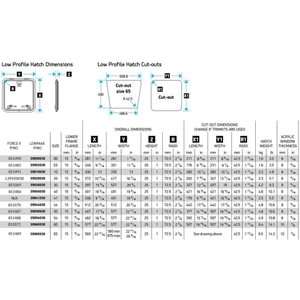

    • Cut Out: see drawing in images
    • Height: 25mm
