HX1 800W Horizontal Windlass
HX1 800W Horizontal Windlass
Lewmar

HX1 800W Horizontal Windlass

Catalogue Code: 841026
£949.95 In Stock
Save £165.92 RRP £1,115.87
See Product Description Add to Wish List
  • Get it on Tuesday, 18th January if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Chain Counter
Chain Counter £324.95 Save £32.89 RRP £357.84

View all 7 optional extras

  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

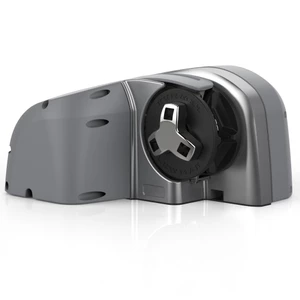

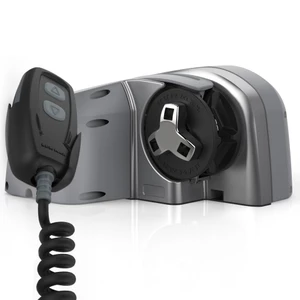

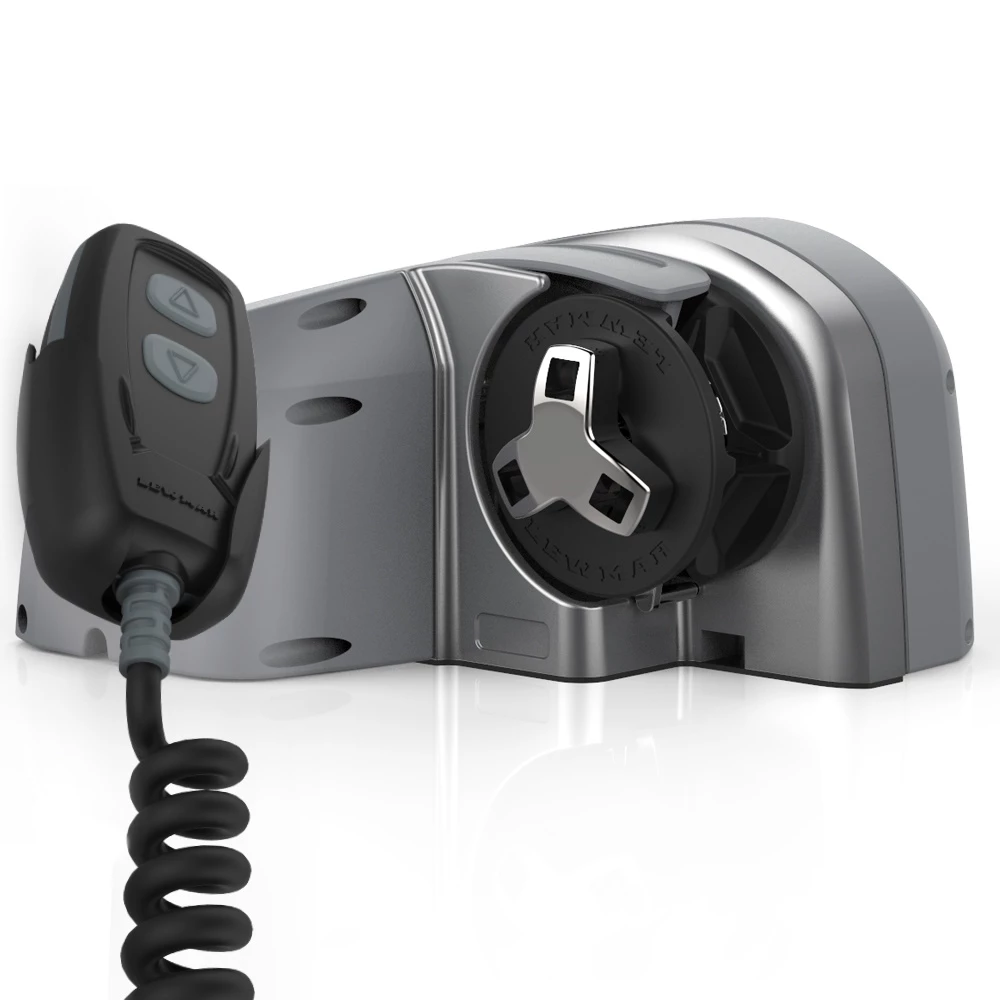

Lewmar HX1 800W Horizontal Windlass

A strong and reliable horizontal windlass, using the latest inline motor and epicyclical gearbox. HX also features a strong and durable anodized aluminium chassis designed to withstand years of use.
The new HX1 is available in Gypsy only, Gypsy drum, & free fall is available with the addition of a conversion kit to the HX gypsy only models.

Featuring Hybrid Polymer Gypsy

Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together
with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures a smooth
operation, while still offering the long-life durability of the traditional metal gypsy
The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation,
while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode
such as with a conventional gypsies

Lewmar Part No: 69140033

Specifications:

  • 8mm 5/16 DIN 766 Gypsy
  • Motor power: 800W
  • Voltage: 12 VDC
  • High efficiency epicyclical gearbox
  • Sealed waterproof unit requires minimum maintenance; (IP67 Rated)
  • Anodized aluminium chassis with a choice of polymer or anodized aluminium covers
  • IP67 rated as standard
  • Max Pull: 1065kg
  • Working load: 266kg
  • Max Line Speed: 21m/min
  • Normal current draw: 105A
  • Weight: 9kg



In the Box:

  • Windlass
  • Solenoid
  • Rocker Switch
  • Circuit Breaker
  • Documentation



Download Product Manual here.

Please Note: This Product Manual covers a number of different HX models, please make sure that you select the information for your Windlass.

Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

Store Availability Telephone
Force 4 Chandlery Cardiff Not currently in stock - available to ship to store by 28th January 2022 02920 787190
Concession & collection point Chichester Not currently in stock - available to ship to store by 24th January 2022 01243 773788
Force 4 Chandlery Chichester Not currently in stock - available to ship to store by 25th January 2022 01243 773788
Force 4 Chandlery Deacons 02380 402182
Force 4 Chandlery Lymington Not currently in stock - available to ship to store by 27th January 2022 01590 673698
Nailsworth (Head Office) 0345 130 0710
Force 4 Chandlery Port Hamble Not currently in stock - available to ship to store by 25th January 2022 02380 454858
Force 4 Chandlery Plymouth 01752 548301
Force 4 Chandlery Poole Not currently in stock - available to ship to store by 27th January 2022 01202 723311
Force 4 Chandlery Poole Quay Not currently in stock - available to ship to store by 27th January 2022 01202673056
Force 4 Chandlery Southampton Not currently in stock - available to ship to store by 27th January 2022 02380 632 725

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Christmas Delivery

If you are ordering a gift for Christmas please make sure your order is placed before the below dates to ensure delivery in time

  • UK Channel Islands - Thursday 16th December
  • UK Highlands & Islands (Inc. Shetland etc) - Monday 20th December
  • Standard UK Mainland (Excluding H & I) - Tuesday 21st December
  • Next Day/Special Delivery - Wednesday 22nd December, 12 midday

* Providing items are in stock. Excludes personalised items. External factors beyond our control may delay your orders.



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options. We are currently only able to offer an Airmail service for orders under 2kg

UK Standard Delivery

  • UK Mainland 0 - 1Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days
  • UK Mainland 1 - 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 1Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 1Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 1 - 20Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 20Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £24.00
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected] This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
Re Lewmar HX1 800W Vertical windlass - this has the option of converting to a gypsy with drum. The drum kit is part no 66100124. Can you tell me how much the drum kit costs, and how long to get it? I assume the windlass is in stock? raoul hewitt

Yes, this Windlass is currently in stock. The L66100124 VX1 DRUM KIT retails for £98.95 inc vat and would take approximately 4-5 weeks to order in for you. If you wish to place an order, please do so via our order line on 0345 1300 710.


29/08/19

Can you give the exact dimensions of this windlass? Jeremy
We have added the manual to the extra images above, which has a technical drawing on page 20. 14/10/20.
