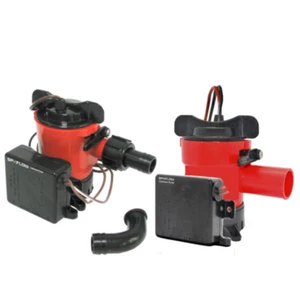

Johnson Ultima Combo Automatic Submersible Bilge Pump -

The Johnson Pump Ultima Combo brings together two proven technologies in one reliable, automatic bilge pump.

The cartridge bilge pump — a trusted Johnson Pump design — is paired with the electronic Ultima Switch for fully automatic, fit-and-forget bilge protection. Unlike traditional float switches, the Ultima Switch uses patented Mirus field effect detector cells to sense water presence through micro-electrical fields. The detector cells are completely sealed, never contact the water directly and are unaffected by oil or debris.  This helps in eliminating the corrosion and false triggering that plague conventional float switches.

Available in five capacities across both 12V and 24V to suit a wide range of vessels.

Key Features

• Ultima Switch automatic operation - Patented Mirus field effect technology detects water presence without physical contact. Sealed detector cells won't corrode or be affected by oil or bilge debris.
• Cartridge pump design - Compact, all-in-one motor and impeller unit with stainless steel shaft (SS2343) for long-term reliability and easy servicing.
• Tool-free maintenance - No need for complete disassembly. The pump casing can remain attached to the boat and hoses during servicing, saving significant time and hassle.
• Dura-Port discharge ports - 500, 800 and 1000 GPH models include both straight and 90° smooth elbow Dura-Port fittings to eliminate stress cracking from over-tightened hose clamps. (12V models only — 24V models do not include Dura-Port connection.)
• Removable check valve - Included as standard on 500, 800 and 1000 GPH models.
• Water-cooled motor - Keeps running temperatures low for extended service intervals and long pump life.
• Extremely energy efficient - High flow rates with low amperage draw across all models.
• ISO 8849 certified - Meets the international standard for marine bilge pumps.
• Available in 12V and 24V - 12V models available in 500, 800, 1000 and 1250 GPH. 24V models available in 1000 and 1250 GPH.

Technical Specifications

500 GPH 12V — Force 4 P/N: 830890-9200

• Flow Rate - 500 GPH / 33 litres per minute
• Voltage - 12V DC
• Amperage - 2.5A
• Fuse Size - 5A
• Discharge Connection - ¾"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.40kg
• Manufacturer P/N - 32-1450UC-01
• Includes - Dura-Port (straight & 90°), removable check valve

800 GPH 12V — Force 4 P/N: 830890-9202

• Flow Rate - 800 GPH / 44 litres per minute
• Voltage - 12V DC
• Amperage - 3.0A
• Fuse Size - 5A
• Discharge Connection - ¾"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.40kg
• Manufacturer P/N - 32-1550UC-01
• Includes - Dura-Port (straight & 90°), removable check valve

1000 GPH 12V — Force 4 P/N: 830890-9204

• Flow Rate - 1000 GPH / 50 litres per minute
• Voltage - 12V DC
• Amperage - 3.2A
• Fuse Size - 5A
• Discharge Connection - ¾"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.40kg
• Manufacturer P/N - 32-1650UC-01
• Includes - Dura-Port (straight & 90°), removable check valve

1250 GPH 12V — Force 4 P/N: 830890-9205

• Flow Rate - 1250 GPH / 60 litres per minute
• Voltage - 12V DC
• Amperage - 3.0A
• Fuse Size - 5A
• Discharge Connection - 1⅛"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.45kg
• Manufacturer P/N - 32-1750UC-01
• Includes - Dura-Port (straight & 90°), removable check valve

1000 GPH 24V — Force 4 P/N: 830890-9209

• Flow Rate - 1000 GPH / 50 litres per minute
• Voltage - 24V DC
• Amperage - 3.2A
• Fuse Size - 5A
• Discharge Connection - ¾"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.40kg
• Manufacturer P/N - 32-1650UC-01-24
• Note - Does not include Dura-Port connection

1250 GPH 24V — Force 4 P/N: 830890-9210

• Flow Rate - 1250 GPH / 60 litres per minute
• Voltage - 24V DC
• Amperage - 3.0A
• Fuse Size - 5A
• Discharge Connection - 1⅛"
• Dimensions - H112 x D108 x W85mm
• Weight - 0.45kg
• Manufacturer P/N - 32-1750UC-01-24
• Note - Does not include Dura-Port connection

Download Johnson Ultima Combo Bilge Pump Instruction Manual here.
