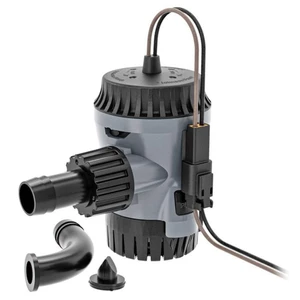

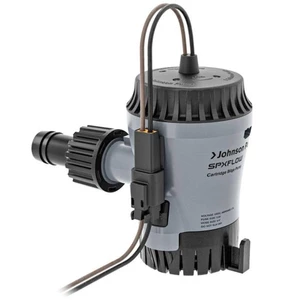

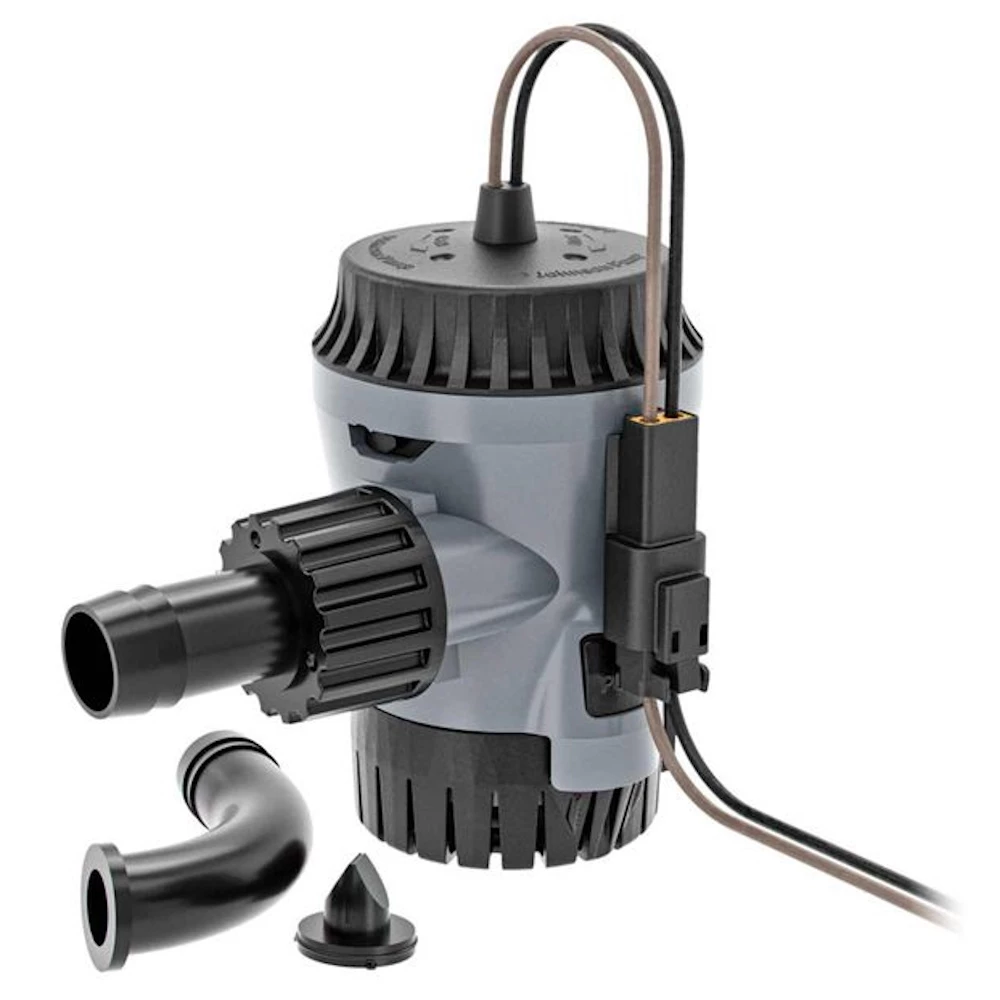

Johnson Aqua Void Bilge Pump Grey

Johnson Aqua Void cartridge bilge pump features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation and it's convenient and efficient. The Aqua Void bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance your boating experience. Get the Aqua Void today!

Available in 2 sizes:

500GPH 12V

Johnson 10-13626-01 features easy to install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps include a straight and a 90º smooth elbow Dura-Port and a removeable check valve.

• Limited 3-Year Warranty
• 500 GPH Capacity
• Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design

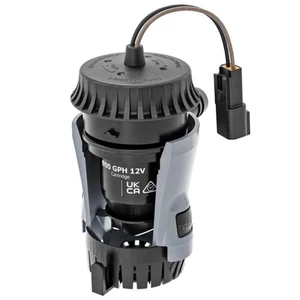

• Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/impeller unit with stainless steel 316 shaft
• No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses
• Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Moulded T-Slot - Easy Installation with Switches
• Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation

Specifications:

• Flow Rate - 2280 LPH (600 US GPH), 1560 LPH (410 US GPH) at 1m head, 960 LPH (250 US GPH) at 2m head
• Materia - ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft
• Outlet - 19mm (3/4") ID Hose
• Supplied With Straight Dura-Port, 90° Smooth Elbow Dura-Port & Check Valve
• Primary Construction - Plastic
• Automatic Bilge Pumps - No
• Hose Size - 19mm / 3/4"
• Maximum Recommended Head - 3 Metres (9.8 Feet)
• Replaces - Volvo Penta 21662681, 21662682 & Johnson L450 32-1450-01
• Wire Size - 16 Gauge (1.3mm2)
• Voltage - 12V DC
• Amps - 2.7A
• Fuse - 3.5A
• Approvals - ISO 8849 Marine
• Height - 119mm (4.69")
• Width - 133mm (5.24")
• Weight - 0.32kg (11.2 oz)
• Diameter - 69.8mm (2-3/4")

800GPH 12V

Johnson 10-13626-05 features easy to install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps include a straight and a 90º smooth elbow Dura-Port and a removeable check valve.

• Limited 3-Year Warranty
• 800 GPH Capacity
• Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design
• Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/impeller unit with stainless steel 316 shaft
• No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses
• Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Include both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Moulded T-Slot - Easy Installation with Switches
• Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation

Specifications:

• Flow Rate Description - 3000 LPH (795 US GPH), 2100 LPH (560 US GPH) at 1m head, 1560 LPH (405 US GPH) at 2m head
• Material - ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft
• Outlet - 19mm (3/4") ID Hose
• Supplied With Straight Dura-Port, 90° Smooth Elbow Dura-Port & Check Valve
• Primary Construction - Plastic
• Automatic Bilge Pumps - No
• Hose Size - 19mm / 3/4"
• Maximum Recommended Head - 4.4 Metres (14.4 Feet)
• Replaces - Johnson L550 32-1550-01
• Wire Size - 16 Gauge (1.3mm2)
• Voltage Description - 12V DC
• Amps Description - 3.7A
• Fuse - 5A
• Approvals - ISO 8849 Marine
• Height - 119mm (4.69")
• Width - 133mm (5.24")
• Weight - 0.36kg (12.6 oz)
• Diameter - 69.8mm (2-3/4")
