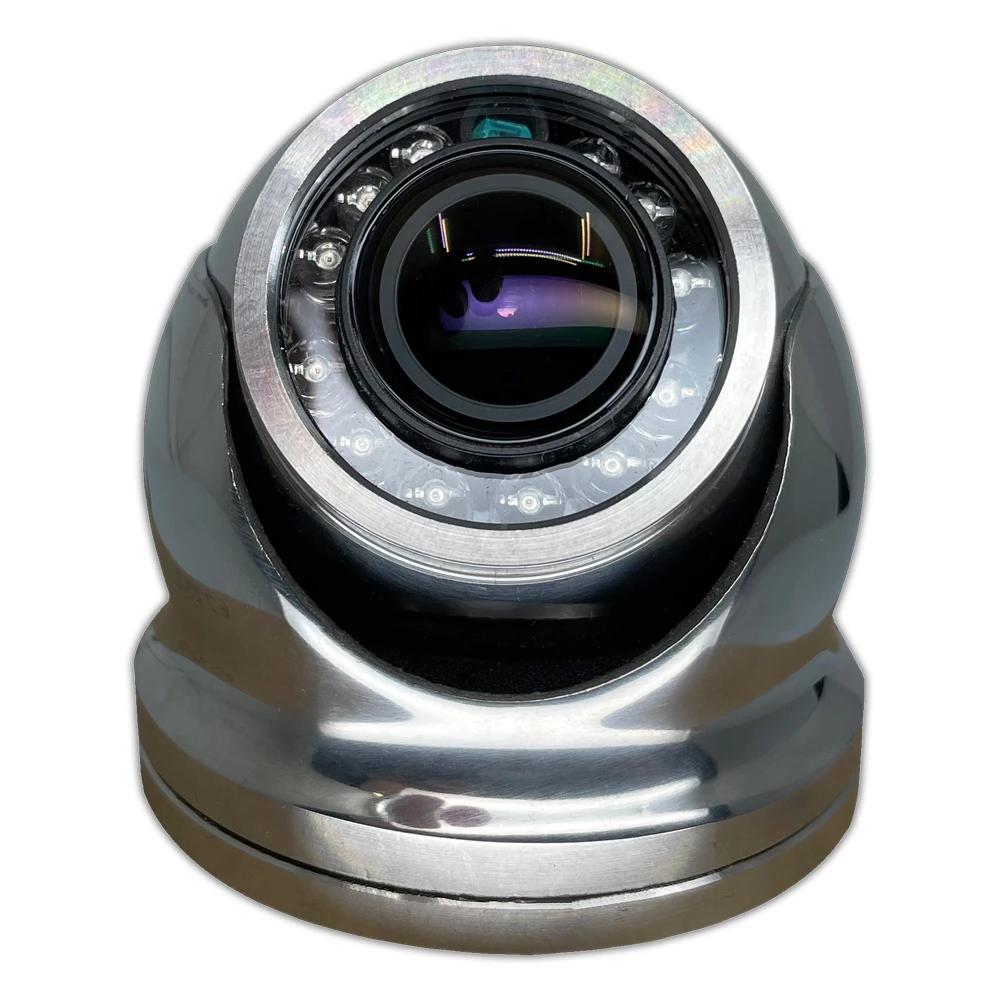

Iris S060 Stainless Steel Static Dome Camera

High quality video from a stylish and rugged camera that is designed for the harsh marine environment. Perfect for deck/engine room monitoring or a docking/reversing camera. Available in analogue or IP versions. Compatible with chart plotters that have a composite/analogue video input.

• Analogue version compatible with all Chart Plotters supporting Composite/Analogue Video
• IP Version compatible with Raymarine Lighthouse 2/3 chart plotters
• NEW Marine Grade 316 Stainless Steel Rugged Corrosion Free Case
• Features 4-in-1 Video Format Camera Module (CVBS / TVI / CVI / AHD)
• Available in High Polish (standard), Brushed or Custom Paint Finish
• Analogue (CVBS / Composite Video) Resolution 1000TVL
• Set to TVI for 1080P HD Resolution in Real Time (No Network Latency)
• Built In Infra Red LED Illumination (10m Range)
• Extremely Low Power Consumption
• IP66 Environmental Protection

Iris’s SX60 range of miniature marine grade stainless steel cameras are available in multiple formats and deliver the highest quality video and to suit your application.

The IRIS-S060 features a multi-format 4-in-1 camera module (CVBS, TVI, CVI, AHD) designed for maximum compatibility with most marine chart plotters, digital recorders and monitors.

The IRIS-S060 can be set to output analogue video (CVBS), or a range of Analogue Hi-Def formats (HD-TVI, HD-CVI, AHD) providing up to 1080P high-definition resolutions in real-time. When used with an IRIS HD switcher or HVR or our TVI to HDMI convertor, the IRIS-S060 can be connected to HD TVs and MFD’s with digital inputs.

The cameras are shipped as standard with a 3.6mm lens offering 80° HFOV, with wide-angle 2.1mm lens (120° HFOV) and ultra-wide-angle 1.8mm lens (180° HFOV) options available.

The S060’s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels and passenger’s vessels, whilst fitting in equally as well with the high-end aesthetic of luxury vessels and mega yachts.

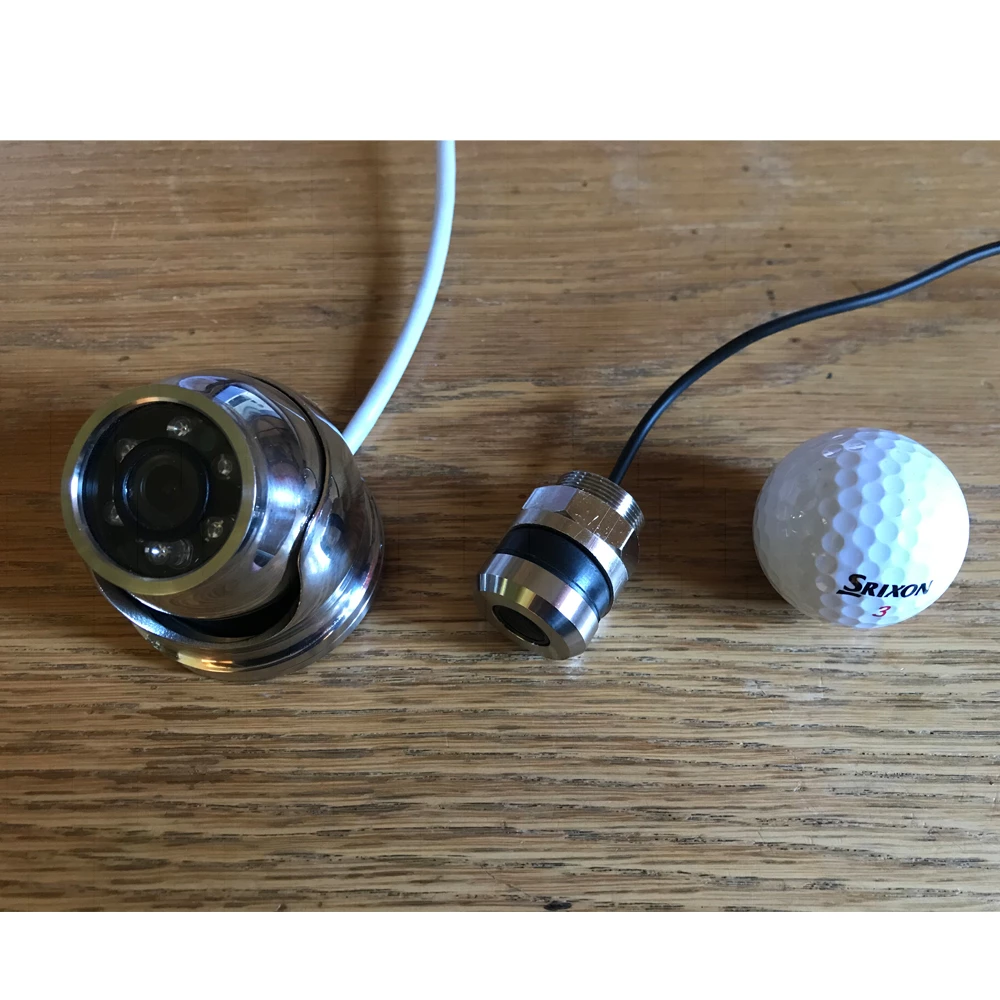

Measuring only 58mm high by 60mm in diameter, the S060 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells.

Whether you need high quality and rugged camera as part of your on-board surveillance system, for the engine room, deck and companionway monitoring or as a robust and stylish docking or backup camera, our IRIS-SX60 range of cameras is the perfect solution

Specifications

• Sensor: Analogue - 1/3” Sony CCD Sensor: IP -  1/4” CMOS Sensor
• Resolution: Analogue - 1000 TVL: IP -  Variable - 1920x1080P (2MP) Max
• Interface: Analogue – BNC: IP - RJ45 10/100 Base T Ethernet
• Video Processing: Analogue - 1VP~P CVBS Composite Video 75Ω: IP - H.264 Codec / Dual Stream
• Protocols / Video Format: Analogue - PAL / NTSC Selectable :IP - TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
• Onvif: IP - Profile S v2.4
• Bit rate: IP - VBR / CBR 32kbps ~ 8Mbps
• Illumination: 6 x 850nm Infra-Red - 10 meter Range
• Lens / Field of View: 3.6mm Standard (80°HFOV) / 2.8mm Option
• Mirroring: Analogue - Horizontal & Vertical - Configure via OSD Menu: IP - Horizontal & Vertical - Configure via Browser
• Automatic Gain Control: Supported / Multiple Levels
• Compatibility: Analogue - All MFD’s with Composite Video Input, TV via AV Input: IP - Raymarine / Axiom (LH2 or higher), Furuno Timezero v4.1 and higher. PC based systems, MFD’s with digital (HDMI / DVI) Input, MFD’s via IRIS NVR/HVR, IE Browser
• Operating Temperature: -30 ~ +60°C
• Connections: Analogue - Video: BNC 75Ω Female Connector / DC Power Socket: IP - Water Resistant RJ45 Socket / Non PoE with DC Power Socket
• Material: 316 Stainless Steel
• Power: Analogue - 12VDC < 200mA Max: IP -  PoE IEEE802.3af / 12VDC <200mA Max.
• Weight & Dimensions: 0.420Kg / 59.5mm ø x 52.93mm H
• Environmental: IP66

Click here for Dimensional Drawings

Click here for the Manufacturers Data Sheet

Click here for the User Manual
