Icom IC-M510E VHF Radio With AIS Receiver
- Get it on Wednesday, 11th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
- This is a special order product and may experience shipping delays. Please call our Mail Order team to confirm delivery lead time.
- Ask a question
- Description
- Videos
- Availability
- Delivery & Returns
- Questions & Answers
- Reviews
AIS Version

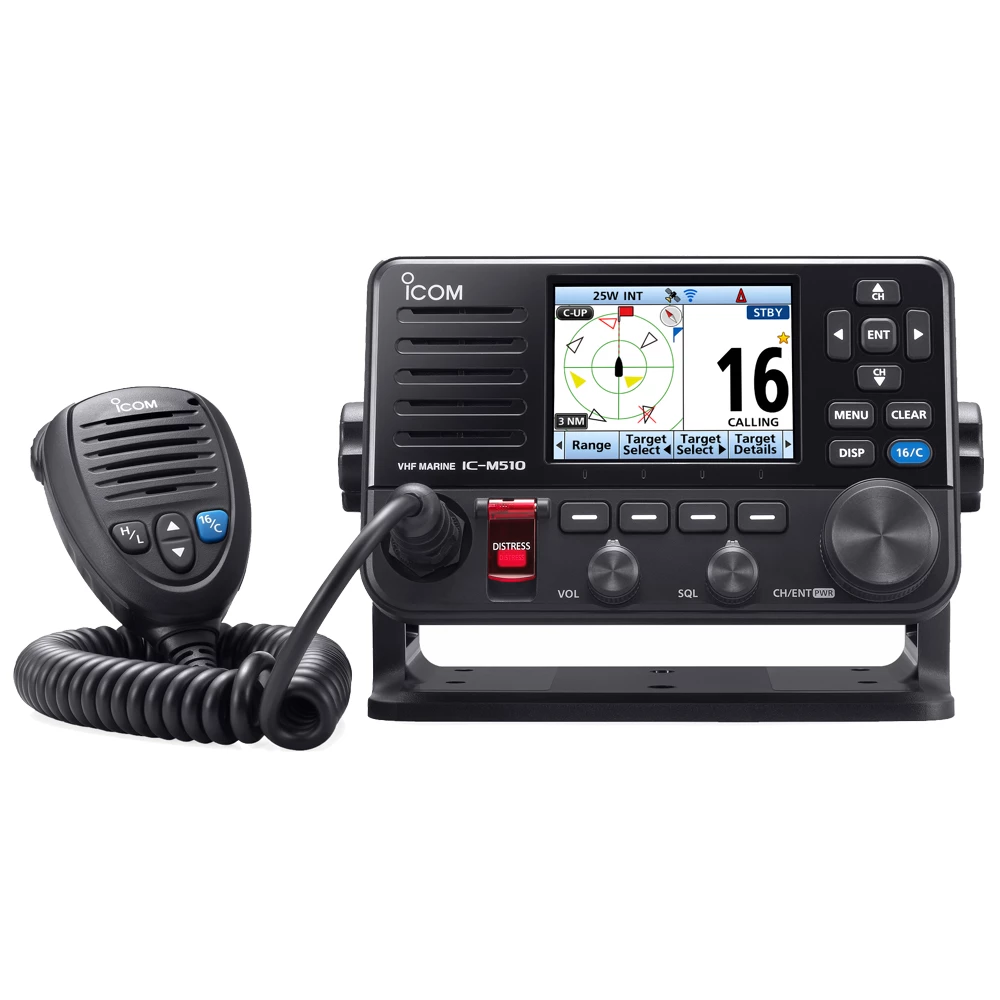

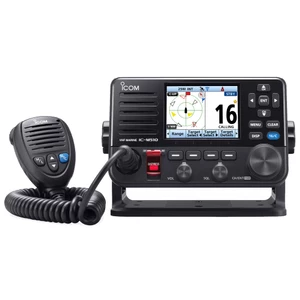

The IC-M510 is a stylish, new advanced VHF/DSC marine radio from Icom that gives smartphone control of your radio using the RS-M500 app (iOS™/Android™). Up to three smartphones can act as remote controllers via the radio’s WLAN. It is even possible to have an intercom function between your smartphone and the radio itself.
In addition to the IC-M510 VHF/DSC VHF marine radio that comes with Smartphone Control, the new AIS version provides users with the ability to receive AIS and see surrounding vessel traffic in real-time whilst also being able to make individual DSC calls to other selected boats.

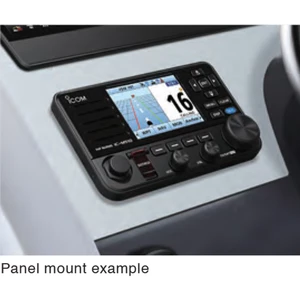

The IC-M510’s all-new sleek design is suitable for either panel or trunnion mounting…the radio has a depth of just 71.2 mm; 2.8 inches making it an easy install for your boat. The stunning colour TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

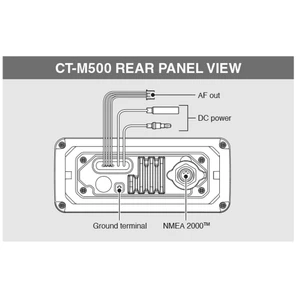

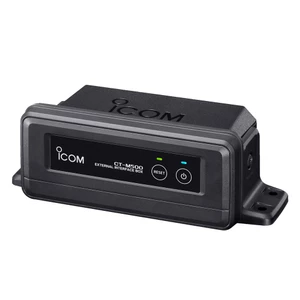

An optional CT-M500 wireless interface box provides NMEA 2000 connectivity and Hailer/PA feature. The CT-M500 and the radio can be connected through WLAN.
The IC-M510 AIS version is available as bundle with the CT-M500 interface.
Features
- Integrated GNSS receiver (GPS antenna is switchable between internal and external)
- Active Noise cancelling
- The Navigation function guides you to a specified waypoint or AIS target
- Supplied HM-205RB speaker microphone can be connected to the rear panel
- Stylish, Sleek Design
- Wide Viewing Angle Colour TFT LCD
- Simplified Navigation Function
- Provides Clear, Loud Audio
- Optional Interface Box for NMEA 2000™ and Hailer
- NMEA 0183/-HS connectivity
- Optional UT-112A voice scrambler
- AquaQuake prevents audio degradation from a water-logged speaker
- External speaker connection
- Second station with an optional HM-195GB COMMANDMIC
- Supports 4-digit channels
Specifications
- Power Supply: 12Vdc
- Audio Output: 15W
- Waterproof Protection: IP68 (1 m depth of water for 60 minutes)

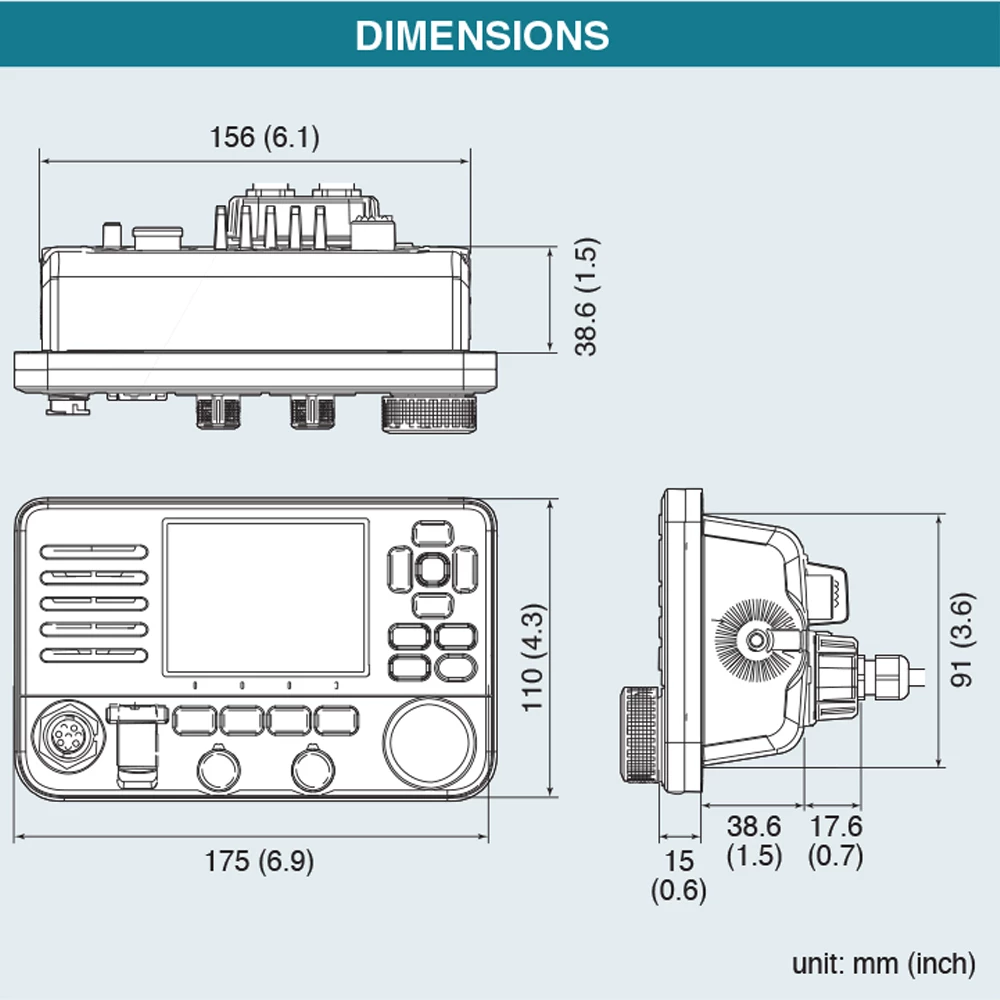

- Flush mount cut out: 156W x 91H mm
- Dimensions: 175W x 110H x 71D mm
- Weight: 750g ( not including microphone)
In The Box
- Icom IC-M510E VHF Radio
- HM-205RB Speaker Microphone
- Mic Hanger
- Mounting Bracket kit
- CT-M500 Interface (Bundle version only)
Click here for the user manual
Click here for the product datasheet
