PiranhaMax 4 DI Fishfinder
PiranhaMax 4 DI Fishfinder
PiranhaMax 4 DI Fishfinder
PiranhaMax 4 DI Fishfinder PiranhaMax 4 DI Fishfinder PiranhaMax 4 DI Fishfinder

Humminbird PiranhaMax 4 DI Fishfinder

Catalogue Code: 240118
£179.95
In Stock Online
Save £62.14 RRP £242.09
See Product Description Check Stock in Store Add to Wish List
  • Get it on Tuesday, 17th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Portable Transducer Pole Bracket
Portable Transducer Pole Bracket £159.95 Save £0.04 RRP £159.99
  • Description
  • Availability
  • Delivery & Returns
  • Reviews
Description

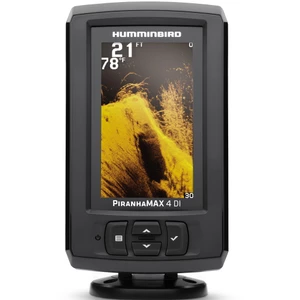

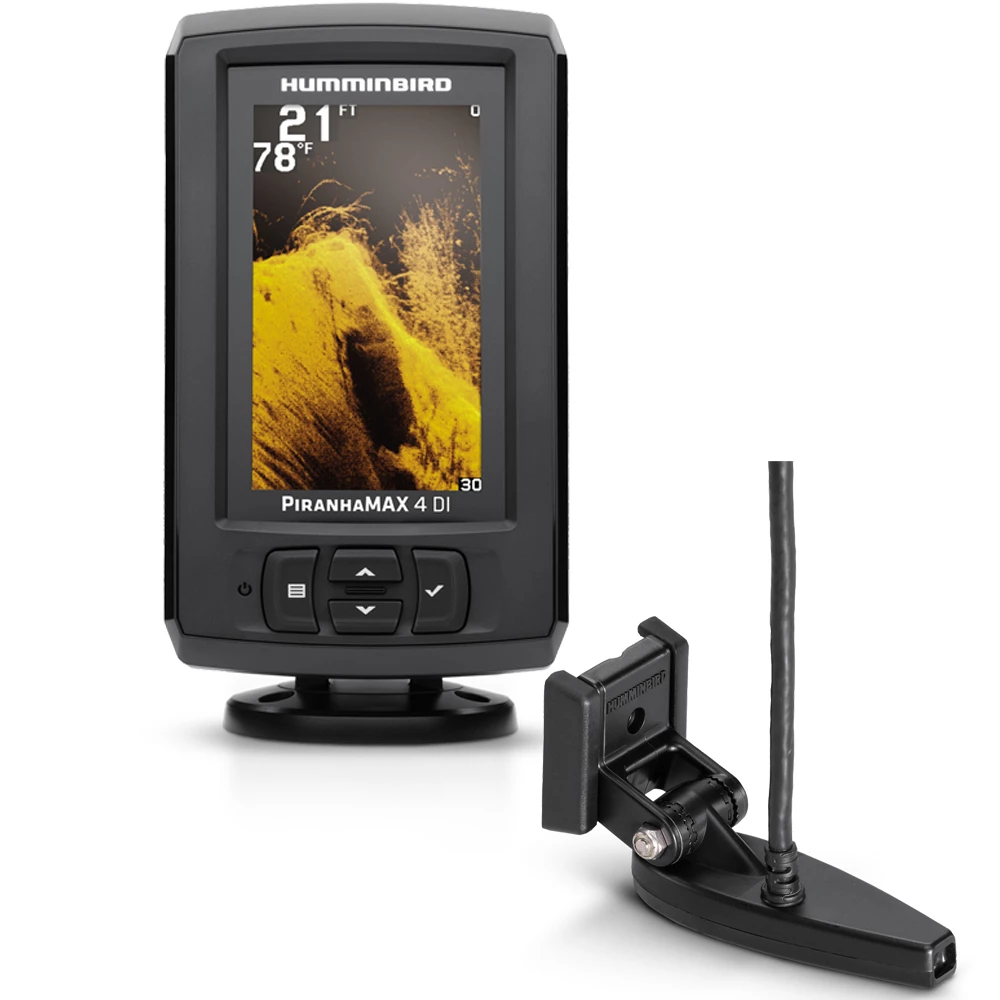

Humminbird PiranhaMax 4 DI Fishfinder

Sharper image. Sharper teeth. With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 DI will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, the power of Down Imaging, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler.

Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.

Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.

Tilt and Swivel Mount: Quickly adjust your viewing area angle.

Specifications

  • Display Size - Diagonal 4.3"
  • Display Pixel Matrix 272H x 480V
  • Sonar-Standard Down Imaging, Dual Beam
  • Sonar-Coverage 28°, 16°, & 74° @ -10dB
  • Sonar-Frequencies Supported 200/455/455 kHz
  • Depth-Sonar 320 ft (20) 455 kHz, 600 ft (20) 200 kHz
  • Depth-Down Imaging 320 ft
  • Interface Keypad Control
  • Features Down Imaging
  • Memory Card Slot None
  • Power Draw 180 mA
  • Power Input 10.8-20 VDC
  • Power Output Peak-to-Peak 2400 Watts
  • Power Output RMS 300 Watts
  • Screen Snap Shot Not Supported
  • Mount-Standard Gimbal
  • Mount-Standard Size 3.91" W x 7.34" H x 3.62" D
  • Mount-Optional In-Dash Mounting Kit
  • Mount-Optional Size 3.91" W x 5.875" H x 2.5" D
  • Transducer Included XNT 9 DI T
  • Transducer Mount Location Transom
  • GPS Chartplotting Not Supported
  • GPS Receiver Not Supported
  • GPS Trackplotting Not Supported
  • Humminbird Basemap Not Supported
  • LakeMaster Compatibility No
  • Platinum Compatibility No
  • Target Separation 2.5"
  • Upgradable Software No
  • Display Colors Grayscale 256 Color
  • Display Type Color TFT
  • Speed Not Supported
  • Temperature Built In
  • Warranty One-Year Warranty

In the Box

  • PiranhaMax 4 DI fishfinder
  • Mounting bracket

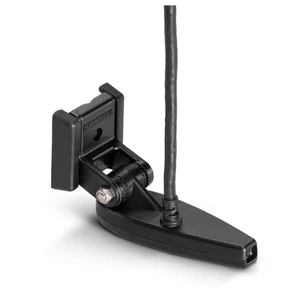

  • XNT 9 DI T transom mount transducer (cable length: 20ft)
  • Power cable (cable length: 6ft)
  • User manual
