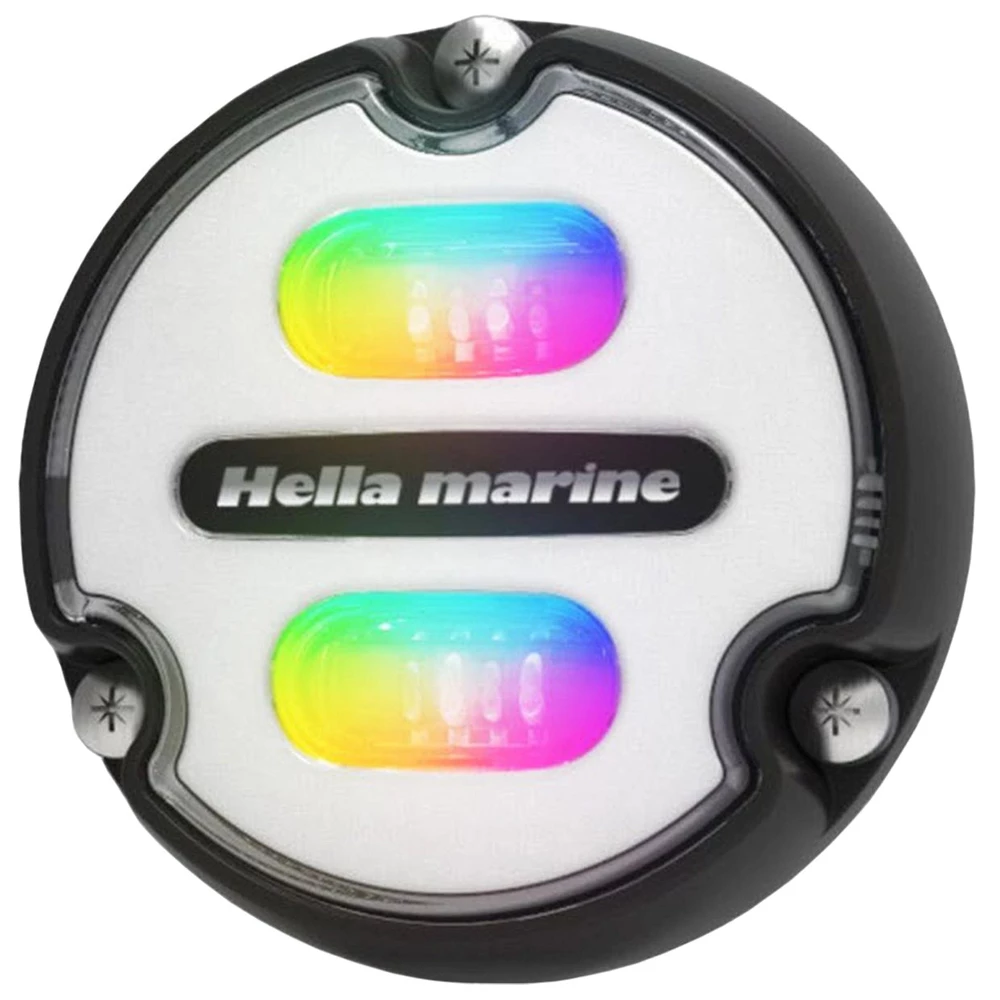

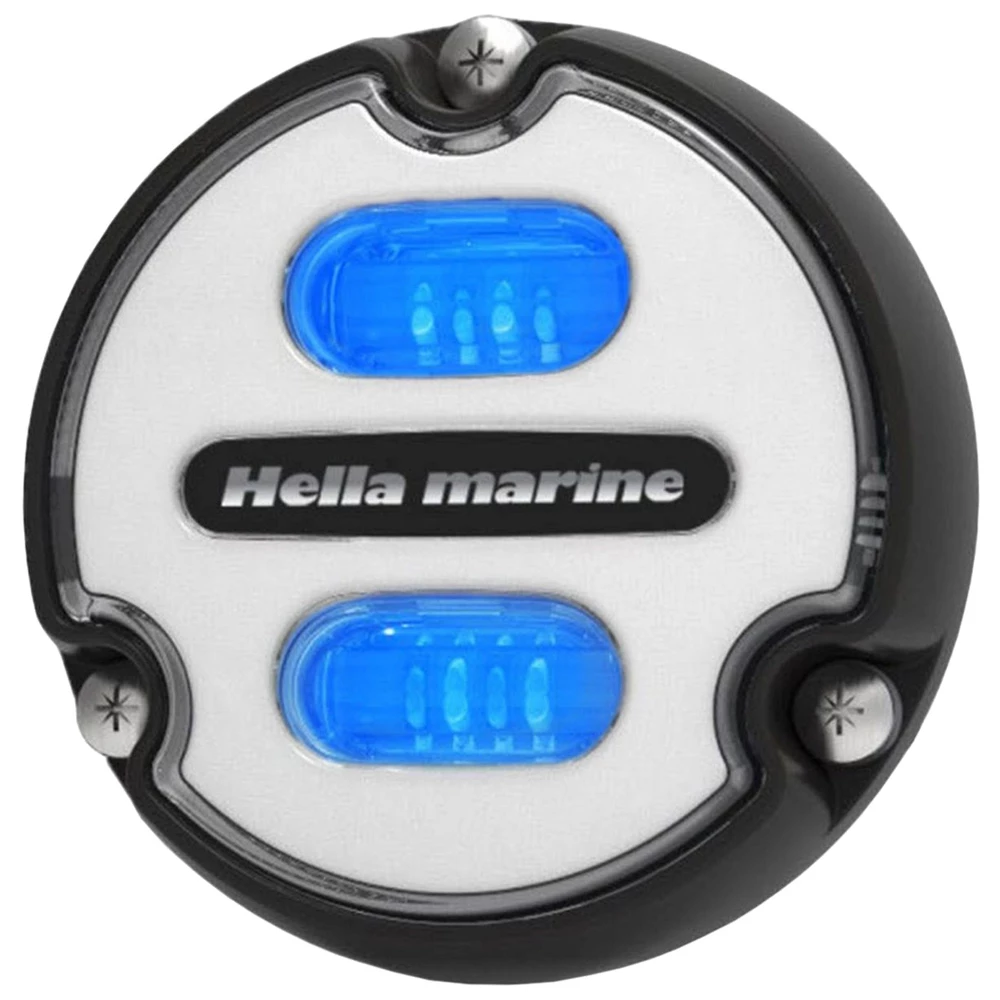

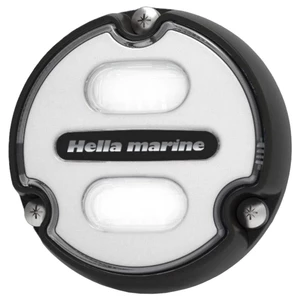

Hella Apelo A1 Underwater Light
- Get it on Wednesday, 16th July if ordered within the next 13 hours 42 mins 22s and select Next Day Delivery *UK Mainland Only
- This is a special order product and may experience shipping delays. Please call our Mail Order team to confirm delivery lead time.
- Ask a question
- Description
- Videos
- Availability
- Delivery & Returns
- Reviews
The Hella Apelo A1 is a compact, high-performance underwater LED light designed to enhance your boat with brilliant illumination and a striking visual presence. Whether you choose the white/blue or RGB model, the Apelo A1 delivers up to 1800 lumens of bright, efficient underwater lighting. All whilst housed in a sleek, durable, and fully sealed body.
Built for life below the waterline, this surface-mount light uses advanced optics, rugged materials and smart electronics to deliver outstanding reliability and visual impact.
Key Features
- Brilliant Underwater Lighting
Apelo A1 delivers powerful light output with up to 1800 lumens. Choose between intense white/blue dual-colour or full RGB options to create the perfect ambience around your boat. - Optical Intelligence for Maximum Impact
Hella’s unique optical design focuses light in a wide horizontal pattern and narrow vertical spread. This means greater brightness when viewed from above, maximising visual effect while reducing wasted light. - Tough Grilamid Lens
The lens is made from premium-grade, UV-stable Grilamid – known for its impact resistance and long-term clarity. It stays clear and strong even after years in harsh marine environments. - Rugged Surface Mount Design
The Apelo A1 features a corrosion-proof thermal polymer housing, ideal for use on any hull type including aluminium, GRP and steel. It’s built to withstand the marine environment and resists corrosion, vibration and impact. - Reliable in Harsh Conditions
Advanced electronics protect the lamp from voltage spikes and low battery voltages. It runs smoothly on 12V or 24V DC and is fully sealed to IP68/IP69 standards – safe for full submersion and even high-pressure jet cleaning. - RGB Control Compatibility
The RGB version is compatible with virtually any analogue RGB controller, making it easy to customise lighting colours and effects with simple plug-and-play integration. - EMC Suppressed
Apelo lights are engineered to minimise interference with other onboard electronics, including radios, chartplotters and navigation gear. - Made in New Zealand
Designed and manufactured in New Zealand to exacting standards, Hella Apelo lights are trusted worldwide for their performance, reliability and superior fit and finish. - Backed by a 5-Year Warranty
Quality you can trust – the Apelo A1 comes with a full 5-year warranty for peace of mind.
Technical Specifications
- Light Output: Up to 1800 lumens (white)
- Voltage: Multivolt 9–32V DC (12/24V DC systems)
- Power Use:
- White/Blue – 20W (1.7A @12V, 0.9A @24V)
- RGB – 15W (1.25A @12V, 0.7A @24V)
- Voltage Protection:
- Spike protection to +500V
- Reverse polarity protection to -700V
- Lens: Grilamid – UV stable and impact resistant
- Housing: Advanced thermal polymer – corrosion proof
- Cable: 2.5m (8.2ft) of tinned 2-core marine cable (sealed into light)
- Mounting: Surface mount (transom compatible)
- Mounting Hole PCD: 83.5mm
- Cable Hole Diameter: 15.5mm
- Dimensions:
- Diameter: 95mm
- Depth: 23.5mm
- Weight: 250g (including cable)
- Waterproof Rating: IP68 / IP69 – submersible and pressure-wash safe
- Compliance: EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005
- Warranty: 5 Years
What’s in the Box
- Hella Apelo A1 Underwater Light (White/Blue or RGB version)
- Pre-attached 2.5m marine-grade cable
- Fixing hardware
- Installation instructions
Click here for the Blue/White Instruction Sheet
Click here for the RGB Instruction Sheet
