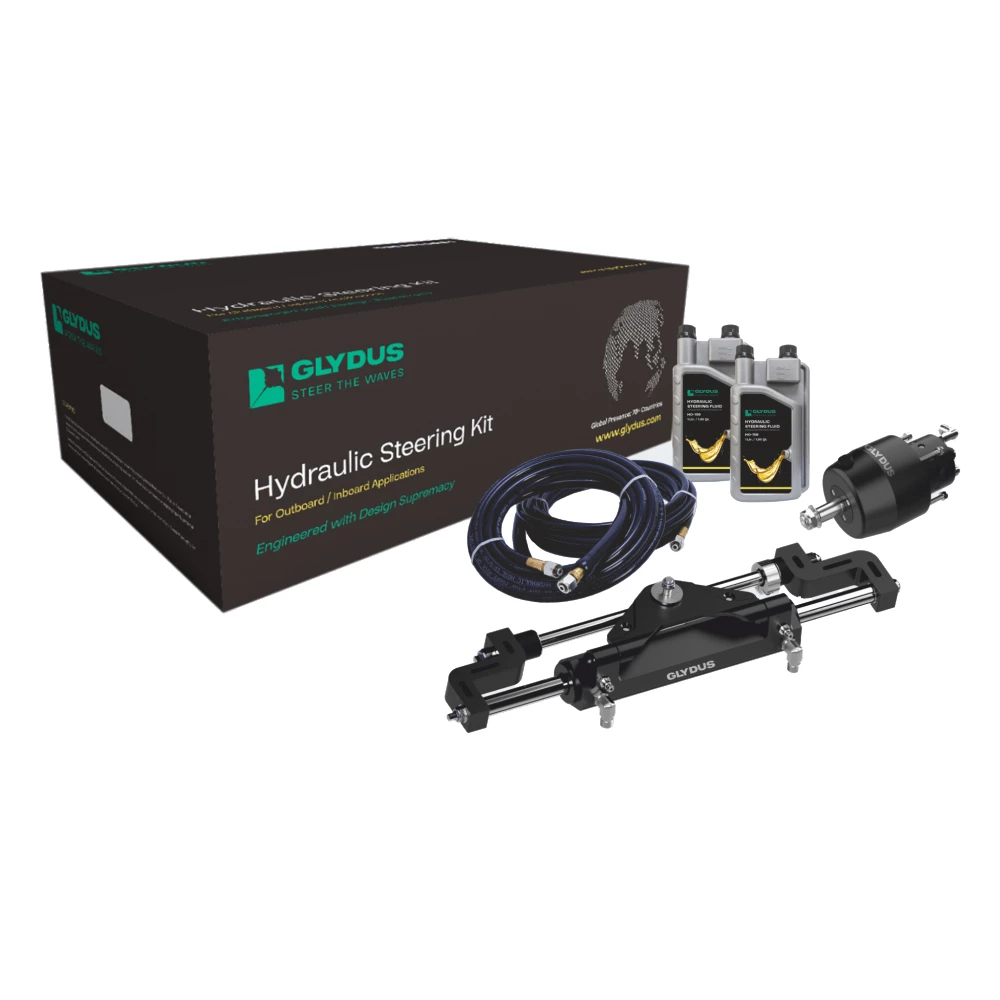

Glydus Hydraulic Steering Kit for Outboard Engines Black

Glydus manufactures a comprehensive range of outboard hydraulic steering systems suited to pleasure, commercial and fishing boats.These state-of-the-art systems have been developed after years of design and testing.

Manufactured under strict quality control on cutting-edge machinery, the final product is subjected to a series of tests before dispatch and is warranted for 1 year. Gyldus products conform to Recreational Craft and Personal Watercraft Directive 2013/53/EU in accordance with EN ISO 10592:1995/Al:2000.

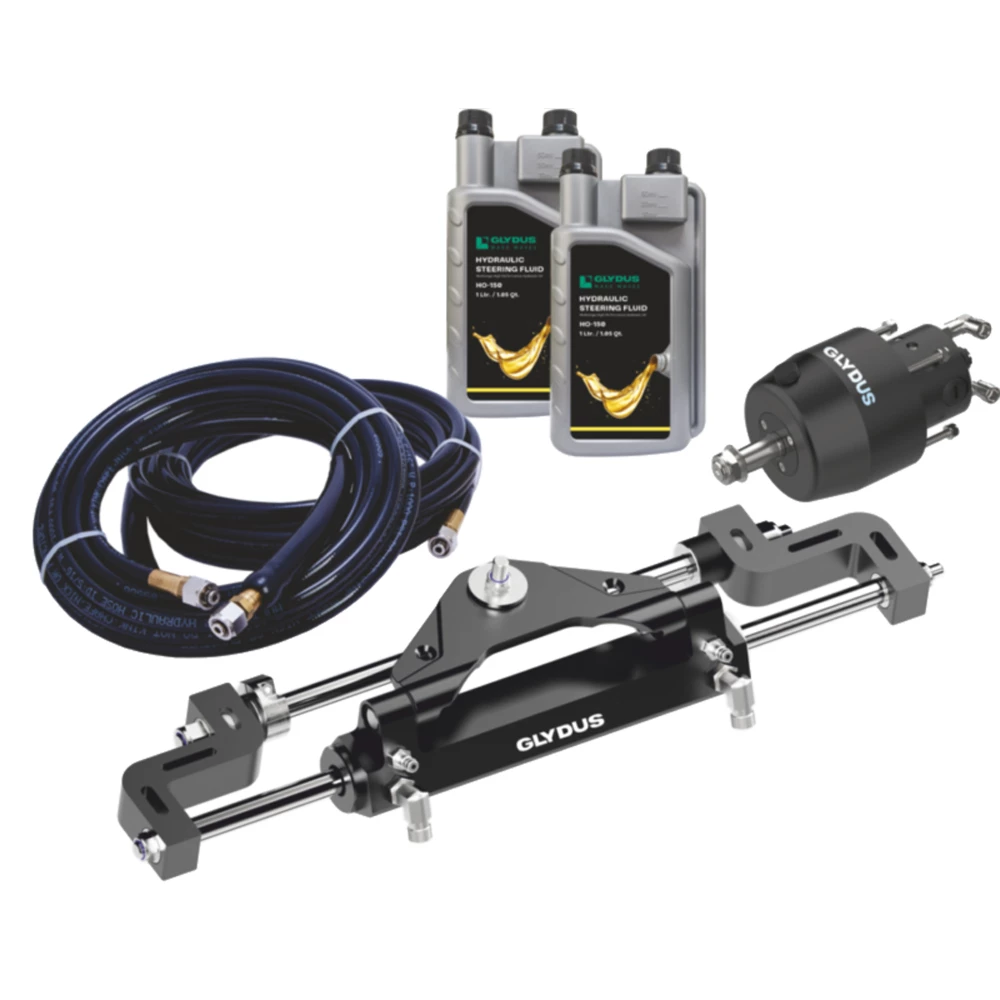

Glydus Outboard Hydraulic Steering System includes

1. Hydraulic Balanced Cylinder: The cylinder provides linear movement to the engine or rudder depending on the application, steering the boat to starboard or port.

2. Hydraulic Manual Helm Pump: This is an axial piston-driven pump which draws and pushes the flow of steering fluid when the wheel mounted on the helm shaft is rotated. Its volume determines the number of turns required hard over to guide the engine. A lock valve prevents untimely engine movement when the helm is not operated and a pressure relief valve protects the system against unusual pressure increase.

3. Hydraulic Hose Tube: The Hose Tube is designed to transfer steering fluid from helm pump to cylinder and vice versa. Hoses are flexible so as to be routed through complex or small bending radii and are tested at a higher pressure than maximum working pressure to prevent oil leakage.

4. Hydraulic Steering Fluid: Hydraulic Steering Fluid is required, where the helm pump while being turned pushes the fluid, such that it travels through the tubing and displaces the cylinder.

Helm Unit

• Robust design
• Ball Bearing Piston race
• Built-in Lock Valve to safeguard feedback from the Rudder
• Integral Relief Valve to protect the steering system from excess pressure
• 3/4” standard tapered Shaft
• Easily accessible Lock Valve Seals & Shaft Seal for replacement
• All Helms include a pair of 90° adjustable Chrome plated Brass Elbow Fittings to connect to 5/16” Hose tube
• Both the Ports are tightly locked with red dummy plugs for hose connection to the Cylinder
• The dummy port is locked with Hex Stud which can be used to connect to the dual station kit
• Mounting Hardware & Template are provided with helms
• Helm mounting is designed in such a way that it is easily interchangeable with other brands

Front Mount Cylinder

• Robust design
• Balanced Cylinder: The number of turns (lock to lock) are equal from port to starboard.
• SS 316L hard chrome plated Piston Rod
• SS 316L Support Rod
• Anodized Aluminium Tube
• Anodized Aluminium Support Brackets
• SS 316L Fasteners – Lock Nuts / Washers etc
• Includes a pair of 90° adjustable chrome plated brass elbow fittings to connect to hose tube
• Installation for single and twin engines
• Includes hex stud assembly to connect cylinder to the engine

Hose lengths

115 - 5m pair of flexible hoses with factory crimped hose connectors

175 - 7.5m pair of flexible hoses with factory crimped hose connectors

Installation Instructions

Click here for the K115 Kit installation instructions

Click here for the K175 Kit installation instructions

Engine Compatibility

Click here for the K115 compatibilty list

Click here for the K175 compatibilty list
