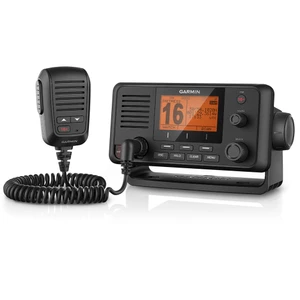

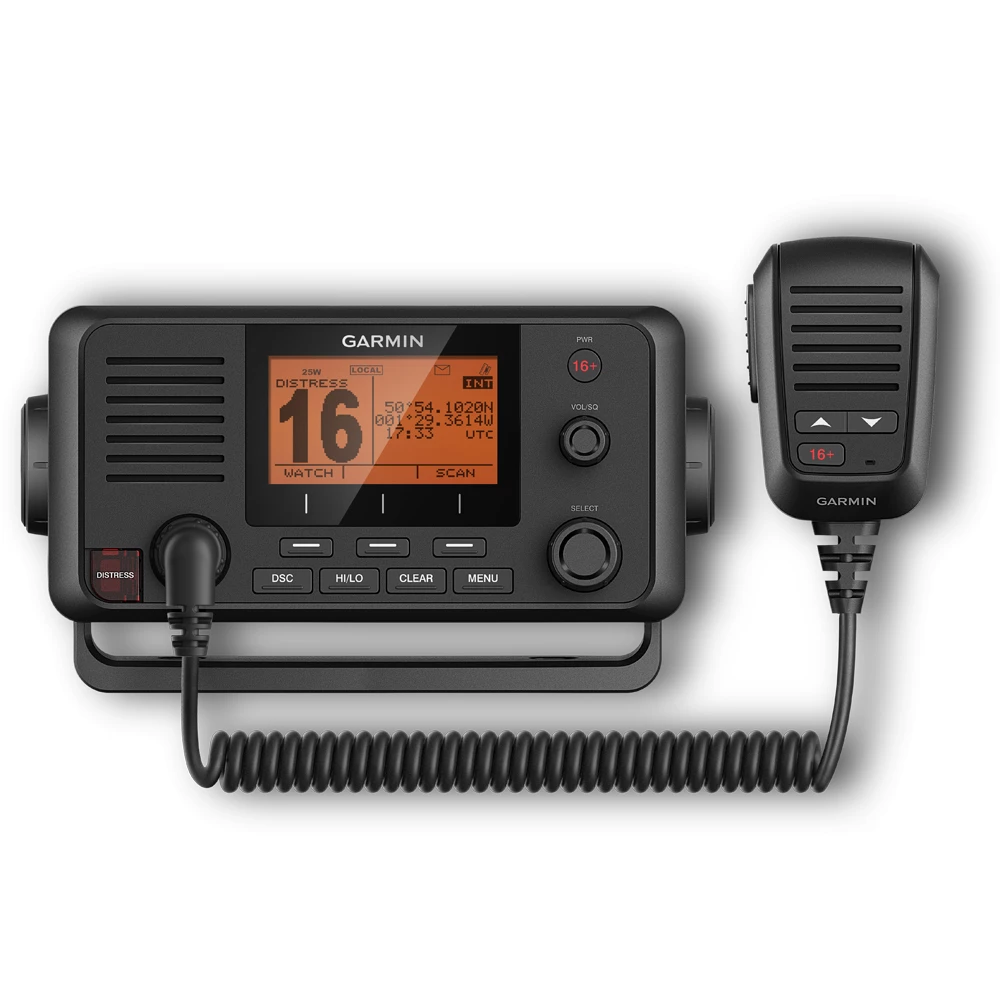

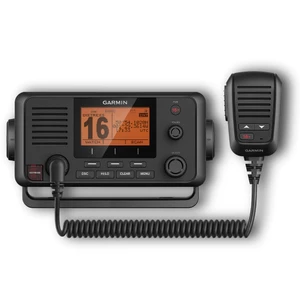

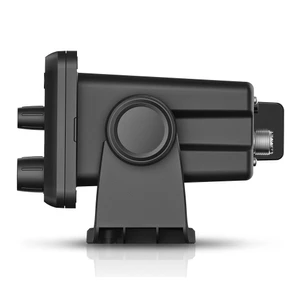

Garmin VHF 215i DSC VHF Radio With GPS & AIS

Easy to install and use, just plug and play to compatible Garmin chartplotters and MFDs via the NMEA 2000® network. VHF 215i AIS provides standard Class D DSC functionality (distress calling and direct calling with user-programmed MMSI). The marine radio is preprogrammed with international marine channels. It’s also NMEA 0183 compatible and includes a two-way hailer system for onboard communication.

• Displays Automatic Identification System (AIS) on the chartplotter
• Standard Class D Digital Selective Calling (DSC) functionality (distress calling and direct calling with user-programmed MMSI)
• In case of trouble, DSC may improve your chances of a rapid rescue
• 25-watt transmit power with built-in GPS
• Preprogrammed with international marine channels

Specifications

• Unit dimensions, HxWxD: 9.8 x 19.7 x 14.9 cm
• Weight: 1.45 kg
• Water rating: IPX7
• Temperature range: Operating from -15°C to 70°C; Storage from -20°C to 70°C
• Compass-safe distance: 75 cm
• NMEA 2000: Yes
• NMEA 0183: Yes
• Digital selective calling: Class D
• Frequency bands: All USA, Canadian and International marine channels; 10 NOAA weather channels
• Operating voltage: 12.0 Vdc
• Current draw: Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
• Frequency range: 156.050 MHz to 163.275 MHz (including WX channels)
• External speaker impedance: 4 Ω
• Antenna connector: S0-239 (50 Ω)
• Maximum antenna gain: 9 dBi
• Hailer output power: 20 W at 4 Ω
• Hailer horn impedance: 4 Ω

In The box

• VHF 215i AIS marine radio
• Bail mount with knobs and mounting hardware
• Protective cover
• Trim ring snap cover
• Flush mount gasket
• Power cable
• Documentation
