Garmin Spectra LED Control Module

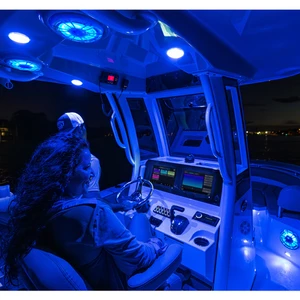

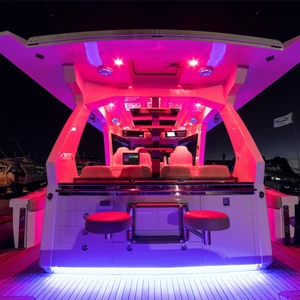

Set the vibe for your ride with the Garmin Spectra™ marine lighting system.

This compact lighting controller makes it easy to control LED lights on your boat with your compatible chartplotter or the ActiveCaptain® app on your compatible smartphone. You can also control LED light rings on Fusion® speakers and subwoofers.

Garmin Spectra™ Features

• Compact integrated LED light controller can be installed in tight spaces

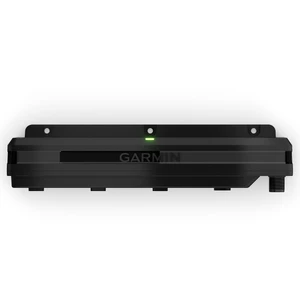

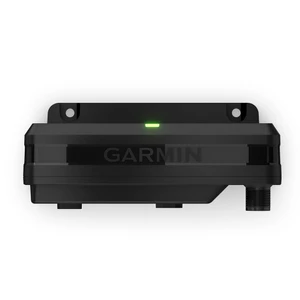

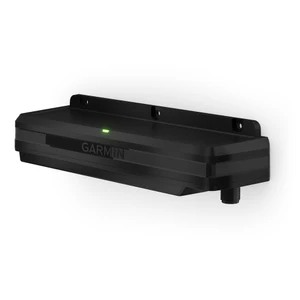

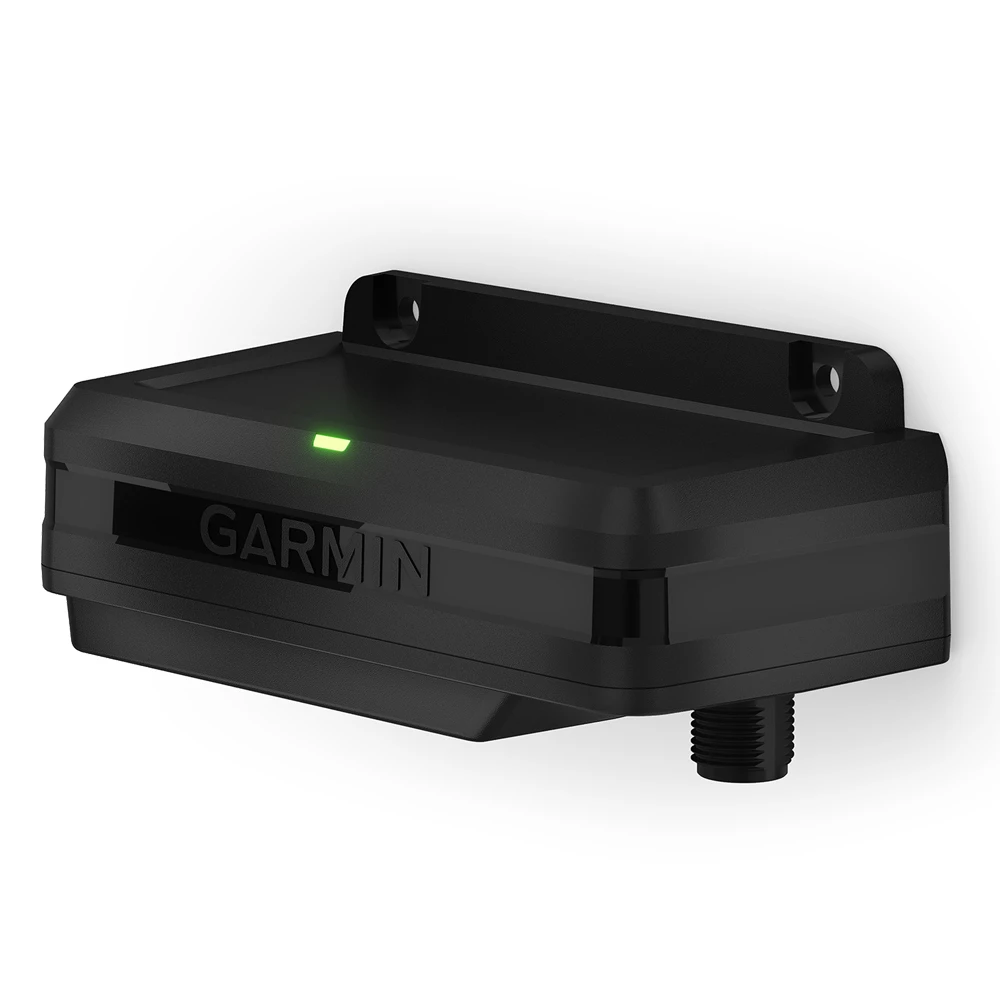

• Two variants available: LC102 with one output and LC302 with three outputs
• Control and set up different light groups and scenes
• Scalable system allows captains to add more lights after the initial setup
• Control lights over the NMEA network with your compatible chartplotter or with the ActiveCaptain® app on your compatible smartphone
• See the beat by syncing the LED lights to the music track with the audio sync feature
• Simple setup and installation
• Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)
• Supports lighting systems that draw less than 2 amps

BE THE LIGHT DJ

From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.

IN YOUR CONTROL

Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® App on your compatible smartphone.

MATCH THE BEAT

See the beat by syncing the LED lights to the music track with the audio sync feature.

FUSION® AND JL AUDIO COMPATIBLE

Control LED lighting on Fusion and JL Audio boat speakers and subwoofers plus wake tower speakers (sold separately).

GROW THE SYSTEM

Add more lights after the initial install with a scalable system.

RUGGED DESIGN

Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)

Garmin Spectra™ Specifications

• LED connection types: RGB, RGBW, CRGBW, single channel
• Lighting modes Colour pick, audio sync (colour blend/audio spectrum), effects
• Premium control and setup via  MFD or ActiveCaptain® app
• Control via: Fusion Apollo™ Stereo

• Input voltage:
  • 10.8 to 16 V (12 V system)
  • 21.6 to 32 V (24 V system)
• Input current (max)
  • LC302: 6 A
  • LC102: 2 A
• Output current (max): 2 A (per output connector)
• NMEA 2000® LEN: 2 (≤ 70 mA)
• Over voltage protection:  Yes
• Over current protection:  Yes
• Unit dimensions (WxHxD)
  • 113 x 52 x 47 mm LC102: (4.45″ x 2.05″ x 1.85″)
  • 197 x 52 x 47 mm LC302: (7.76″ x 2.05″ x 1.85″)
• Weight
  • LC302: 158 g (5.57 oz)
  • LC102: 83 g (2.93 oz)
• Water rating: IP66/IP67
• OPERATING TEMPERATURE RANGE: 0° to 50° C (32° to 122° F)
• Compass-safe distance:                20 cm (7.87″)
• WARRANTY: 2 years

Compatibility

Head units

• Apollo RA670
• Apollo RA770
• Apollo WB670
• Apollo WB675

Speakers

• Fusion Apollo Series Speakers & Subwoofer
• Fusion Signature Series 3i Speakers & Subwoofers (LED versions)
• Fusion XS Series Speakers & Subwoofers (LED versions)
• Fusion EL Series Speakers (LED versions)

Chartplotters

• Echomap UHD2 6,7 & 9
• Echomap  Ultra 2 10 & 12
• GPSMAP 723,923,1022,1222,1223,1623(includes xsv versions)
• GPSMAP 9000 series

In The Box

• Garmin Spectra LC302 or LC102 (depending on the version selected)
• Power flying lead with water-resistant three-way connector

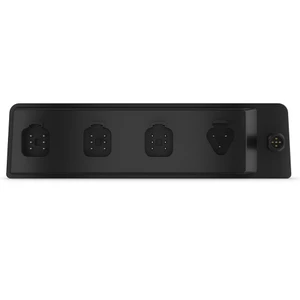

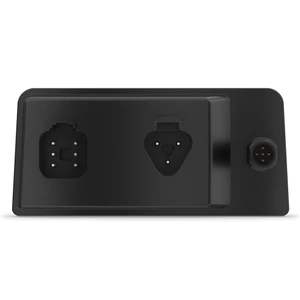

• Three (LC302) or one (LC102) LED flying leads with water-resistant six-way connectors (depending on the version selected)
• Tee connector for the NMEA 2000® network
• Backbone/drop cable (0.3 m) for the NMEA 2000® network
• Mounting screws
• Documentation
