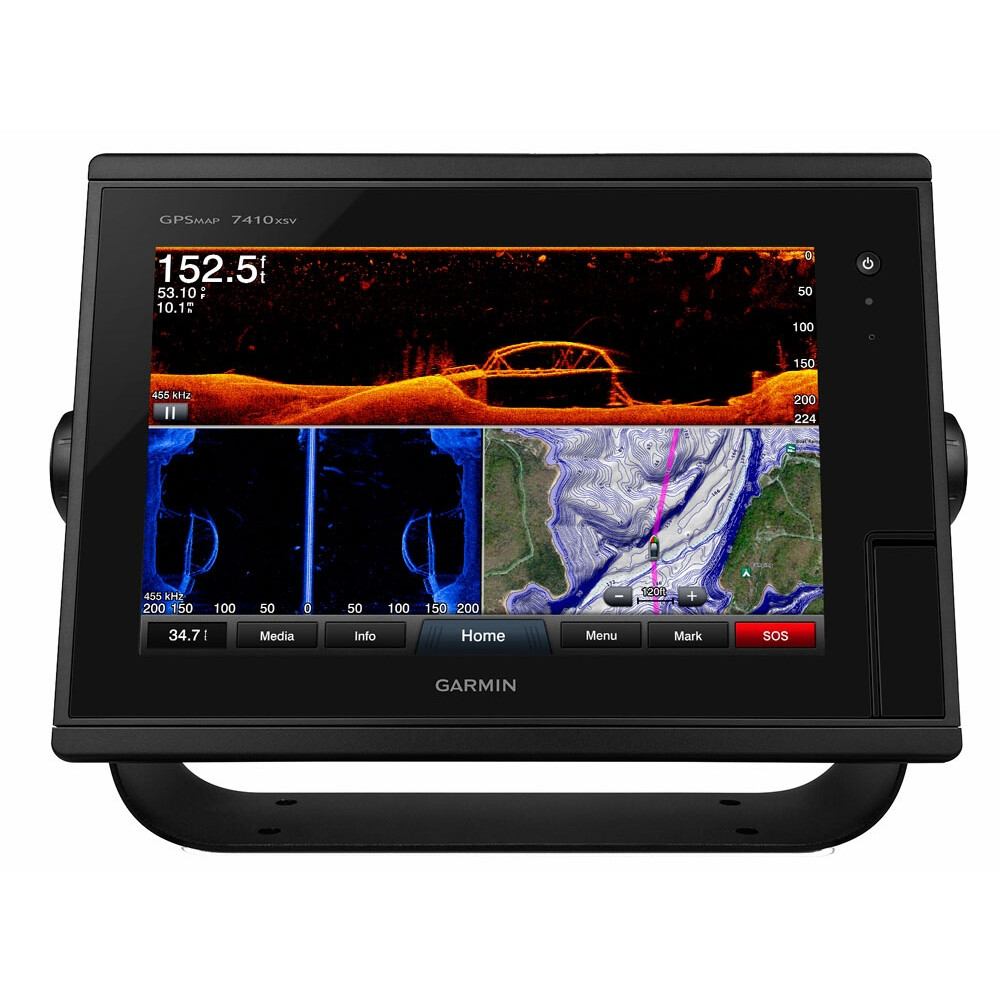

Garmin GPSMAP 7410xsv

10-inch Multi-touch Widescreen Chartplotter/Sonar Combo

  • 10-inch multi-touch widescreen display (1280 x 800 WXGA) with worldwide basemap
  • Built-in dual CHIRP sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonar with the clearest images on the water (transducer sold separately)
  • High-sensitivity internal 10 Hz GPS/GLONASS
  • Fully network capable for Garmin Marine Network and NMEA 2000®, plus NMEA 0183 support

Designed for power boat users, sailors, racing sailors and fishermen who demand high performance, ease of operation and feature integration, the GPSMAP 7410xsv chartplotter with 10-inch multi-touch widescreen display has a 10 Hz internal GPS that updates position and heading 10 times per second. It is fully network capable, including the Garmin Network and NMEA 2000, and offers the conveniences of built-in Wi-Fi® connectivity. Compatible with both g2 and g2 vision charts.

Built in ClearVu, SideVu and Traditional Sonar

The GPSmap 7407xsv provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1kW CHIRP, plus ClearVü and SideVü sonar scanning with CHIRP technology for the clearest scanning images on the water. It delivers target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 1,500 m.

Special Sailing Features

Supported sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays are designed to provide important need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customisable data fields.

Garmin Marine Network and NMEA 2000 Support

Full-network compatibility allows you to add more capabilities to your boat. GPSMAP 7410 supports radar, autopilot, instruments, multiple screens, FUSION-Link, sensors, remote sonar modules, digital switching, thermal cameras, GRID rotary knob, joystick and keypad control, and more. GPSMAP 7410 allows you to share features with other compatible GPSMAP units, such as radar, GSD 24, GSD 26 sonar modules, supplemental maps, and user data, including waypoints, routes and tracks. User data entered into 1 chartplotter can be automatically synced with other chartplotters in a network.

Heading and Position Refreshed 10 Times Per Second

Fast, responsive 10 Hz GPS/GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Compatible with gWind™ Transducers

Garmin gWind, gWind Wireless and gWind Race transducers feature twin-fin technology with 3-bladed propeller. Connect to the NMEA 2000 and compatible Garmin chartplotters via the GND™ 10 black box bridge.

FUSION-Link Entertainment System

Enjoy the ability to control all compatible FUSION-Link-enabled audio systems directly from your compatible chartplotter display.

Built-in Wi-Fi/ANT+®

Built-in Wi-Fi/ANT for use with BlueChart Mobile and Garmin Helm.

Add Extras with BlueChart g2 Vision

With the optional BlueChart g2 Vision, you can add a whole new dimension of exceptional features to your chartplotter.
•MarinerEye view and FishEye view provide a 3-D perspective, both above and below the waterline.
•High-resolution satellite images and aerial photographs help orient you in unfamiliar areas.
•Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions

View and Control Your Device from a Smartphone or Tablet

Garmin Helm allows you to view and control your compatible Garmin chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. Easily switch between portrait and landscape mode to accommodate mounting preferences. When using an iPhone® or iPad®, you can even record a movie of your chartplotter screen to share with friends and family. Download from The App Store™ or Google Play™.

Enhanced Auto Guidance

Just enter the location where you want to go and patented Garmin Auto Guidance technology instantly searches through relevant charts to create a safe virtual pathway on the display that helps you avoid low bridges, shallow water and other charted obstructions en route.

Better still, with enhanced Version 2.0, you now have access to even more features and capabilities. You’re able to adjust the calculated Auto Guidance pathway by inserting “via” points at interim stops or landmarks along your desired route. You can easily review hazard points along your calculated path. And you can even engage your compatible Garmin autopilot to follow the Auto Guidance route, automatically. Other 2.0 enhancements give you the ability to calculate arrival times at any point on your route (great for timing arrivals to correspond with bridge openings and other time-critical events). Better still, you can now save your plotted Auto Guidance paths for future navigation by backing them up on an SD™ card with your BlueChart® g2 Vision® or Lake Vü™ HD Ultra cartography¹.

Simplified SOS Calling

This exclusive SOS safety assist feature makes it easier for anyone – even those not familiar with marine electronics or radio protocols – to quickly call for Coast Guard help in an emergency. By simply tapping the SOS button on the chartplotter’s touchscreen display, your networked Garmin VHF radio will automatically tune to the Channel 16 emergency frequency and a list of possible situations (Ffire, man overboard, etc.) will be displayed. Once the applicable choice has been selected, the screen will provide a Coast Guard approved VHF radio distress call script, along with the ship’s current lat/long GPS coordinates, that can be read off to responders – thus saving time, averting panic, and providing the essential information needed by rescuers to assure the best possible outcome.

Create your own HD maps

Quickdraw Contours is a free, easy-to-use software feature that is already installed on your Garmin. It instantly creates your very own personalised HD fishing maps with 1 foot contours. Tailor them to fit your needs. They’re your maps. You own them. Keep the data to yourself or share it with the Quickdraw Community on Garmin Connect. There’s no special surveying expertise required. You just fish while it creates maps. You don’t have to wait around or send your files away like other mapping software requires — your results appear instantly. Use with any Garmin Panoptix™, any HD-ID™, any CHIRP-enabled, Garmin ClearVü™ transducer or NMEA 2000®-compatible depth transducer. Have more than 1 sonar device installed onboard? Quickdraw Contours automatically selects the most capable sonar device to provide the very best results for you.

Get Your Apple® Device Onboard with BlueChart Mobile

With BlueChart Mobile, a free app downloaded from the App Store, you can plan marine routes on your iPad or iPhone then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. Even if you don’t have a Garmin chartplotter, you can still take advantage of the tremendous features of BlueChart on your Apple device.

Features

  • Antenna Internal with external connection
  • Supports AIS (tracks target ships position)
  • NMEA 2000® compatible
  • NMEA 0183 compatible
  • Mounting options Bail, flat or flush
  • Garmin Marine Network™ ports;2
  • Accepts data cards - 2 SD™ cards
  • Wireless connectivity
  • Garmin Radar compatible
  • Garmin Sonar compatible (when connected to another compatible sonar device)
  • Garmin SmartMode compatible (customizable monitor presets)
  • Supports DSC (displays position data from DSC-capable VHF radio)
  • Tide tables
  • Garmin Meteor Audio System compatible
  • Supports Fusion-Link compatible marine radios
  • GSD™ Black Box sonar support
  • GCV™ Black Box sonar support
  • BlueChart® Mobile (planning) compatible
  • Garmin Helm compatible
  • GRID™ (Garmin Remote Input Device) compatible
  • Wireless remote compatible

Specifications

  • Physical dimensions 28.9 x 20.6 x 7.6 cm
  • Display size, WxH 21.8 x 13.5 cm; 25.7 cm diagonal
  • Display resolution, WxH 1280 x 800 pixels
  • Display type WXGA display
  • Weight 2.36 kg
  • Water rating IPX7
  • Max power usage at 10 Vdc: 30 W
  • Typical current draw at 12 Vdc: 1.95 A
  • Max current draw at 12 Vdc: 2.5 A
  • Waypoints 5,000
  • Routes 100
  • Track log 50,000 points; 50 saved tracks
  • NMEA 0183 input ports 2
  • NMEA 0183 output ports 2
  • Video input ports - 2 Composite
  • Video output ports -1 DVI-D

In the box

  • GPSMAP 7410xsv with worldwide basemap
  • Power/data cable
  • NMEA 2000® drop cable
  • T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Protective cover
  • Grommet
  • Product Documentation
