GPSMAP 723xsv & GMR18HD Plus Bundle
- Delivery & Returns

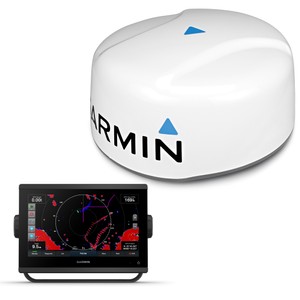

A charplotter and radar bundle consisting of the GPSMAP 723xsv multifunction display and the compact 4 kW GMR™ 18 HD+ dome radar.
With more display pixels and nearly double the processing power of previous-generation GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.
ULTRA HIGH-DEFINITION SCANNING SONAR
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP® 723xsv also supports 1 kW CHIRP traditional sonar capabilities.
PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar4 to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.
IMPROVED DISPLAY OPTICS
New higher-resolution displays offer improved sunlight readability with more pixels than previous-generation GPSMAP devices.
GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.1
OPTIONAL BLUECHART® G3 VISION® CHARTS
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance2 technology and other premium navigation features.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.3
INTEGRATED ANT® TECHNOLOGY
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote control
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
1 Requires compatible wind transducer (Sold separately).
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations.
3 When paired with your compatible smartphone.
4 The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots.
- PHYSICAL DIMENSIONS: 19.2 x 14.0 x 7.4 cm
- DISPLAY SIZE: 15.4 x 9.1 cm
- DISPLAY RESOLUTION:1024 x 600 pixels
- DISPLAY TYPE: WSVGA display
- WEIGHT: 1.3 kg
- WATER RATING: IPX7
- TRANSMIT POWER: 1kW Traditional: 1kW CHIRP
- FREQUENCIES SUPPORTED:(dependent on transducer)
- Traditional: 50/77/83/200 kHz
- CHIRP (low, medium, high)
- ClearVü/SideVü (260/455/800 kHz)
- POLARISED SUPPORT
- POWER CONSUMPTION: Typical current draw at 12 Vdc: 1.1 A
- ANTENNA: Internal or external over NMEA 2000
- RECEIVER: 10 Hz high-sensitivity
- MOUNTING OPTIONS: Bail, flush or flat
- GARMIN MARINE NETWORK™ PORTS: 1
- NMEA 2000 PORT:1
- NMEA 0183 PORT: 1
- VIDEO INPUT PORT: 1 BNC
- ACCEPTS DATA CARDS: 2 microSD™ cards (back of unit)
- WAYPOINTS: 5,000
- TRACK LOG: 50,000 points; 50 saved tracks
- ROUTES: 100
In The Box
- GPSMAP XSV chartplotter
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 metres)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).
- Streamlined 18-inch 4 kW dome radar
- Delivers 4 kW transmit power and clear echo definition at all ranges
- Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
- Dynamic Sea Filter automatically adjusts to changing sea conditions
- Overlays radar image on the chartplotter map page (autopilot or heading sensor recommended for best results)
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true colour resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it’s easy to install and start using.
- Physical dimensions - 50.8 cm diameter, 24.8 cm high (20" diameter, 9.75" high)
- Weight - 7.7 kg (17 lbs)
- Water rating - IPX7
- Power consumption - 30 W typical; 48 W max
- Antenna length- 43.18 cm (17")
- Rotation speed (RPM) - 24 rpm
- Transmit power - 4 kW
- Power input - 11-35 V DC
- Beam width - 5.2° horizontal, 25° vertical
- Maximum range - 36 nm
- Minimum range - 20 meters
In the Box
- GMR 18 HD+ radome
- Mounting hardware kit
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Installation instructions
- Mounting template
