Garmin GPSMAP 1222 XSV Plus Multifunction Display

Advanced navigation. Ultimate integration. This compact 12” GPSMAP® 1222xsv Touch Plus touchscreen combo seamlessly integrates into your Garmin marine system for full control of your connected helm. It has built-in 1 kW CHIRP traditional sonar, ClearVü and SideVü scanning sonars and support for Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar. And NMEA 2000® and NMEA 0183 networking connects you to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more.

  • Bright, sunlight-readable 12” intuitive touchscreen is easy to use in any environment
  • Built-in 1 kW CHIRP traditional and ClearVü and SideVü scanning sonars (transducers sold separately)
  • Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
  • J1939 engine connectivity for easy integration with engines, such as Yamaha, and our exclusive OneHelm™ feature for connecting to third-party devices, such as EmpirBus™ digital switching
  • Easily build your marine system — from sonar and autopilots to cameras and multimedia — using NMEA 2000® and NMEA 0183 network connectivity and the Garmin Marine Network
  • Compatible with optional BlueChart® g3 Vision® charts and LakeVü g3 Ultra maps
  • Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more
  • Add free all-in-one ActiveCaptain® app to manage your marine experience from nearly anywhere
  • Integrated ANT® technology support for use with quatix® marine watches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls

OPTIONAL BLUECHART® G3 VISION® CHARTS
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

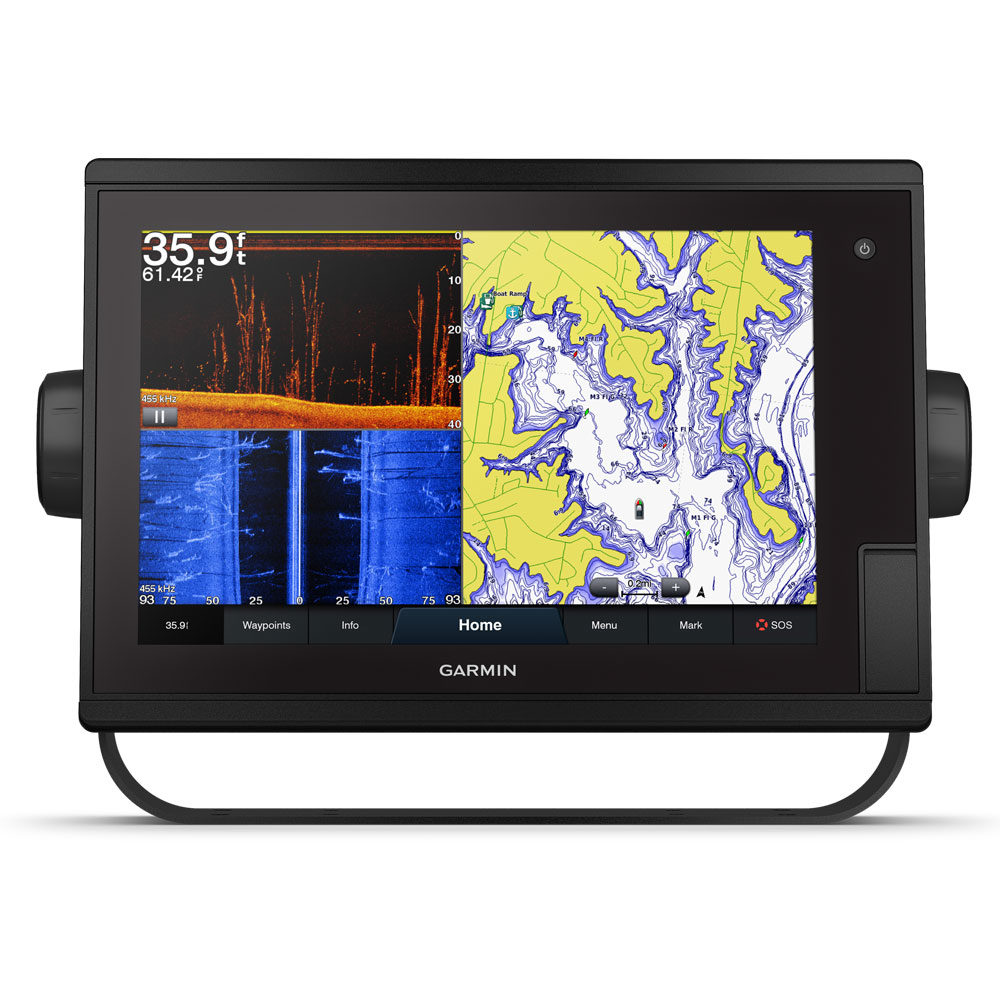

TRADITIONAL AND SCANNING SONARS
Get built-in support for 1 kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ (300 m) below and around your boat at 260 kHz (transducer sold separately).

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

GARMIN MARINE NETWORK

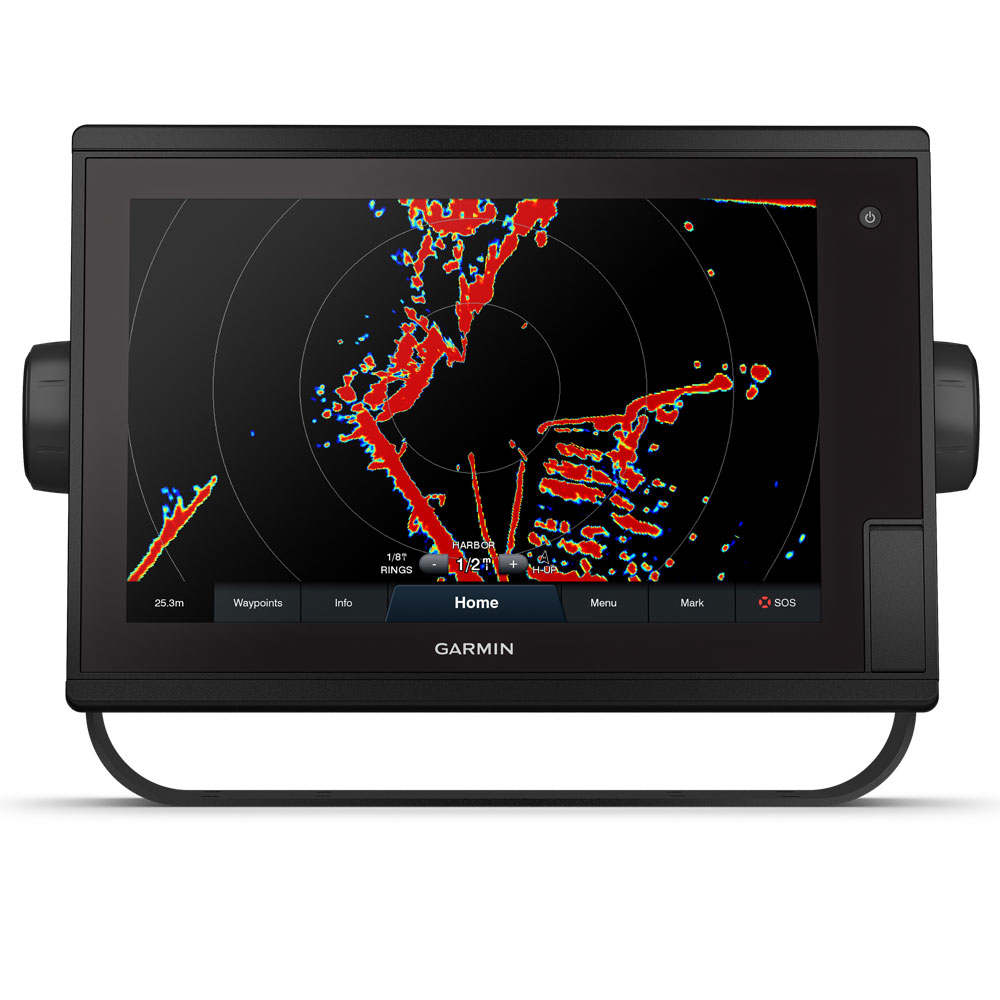

If you have multiple Garmin devices on your boat, you can share information – such as charts, user data, radar and IP cameras – among them.

NMEA 2000® AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm, Garmin Quickdraw™ Community data and more.

INTEGRATED ANT® TECHNOLOGY
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

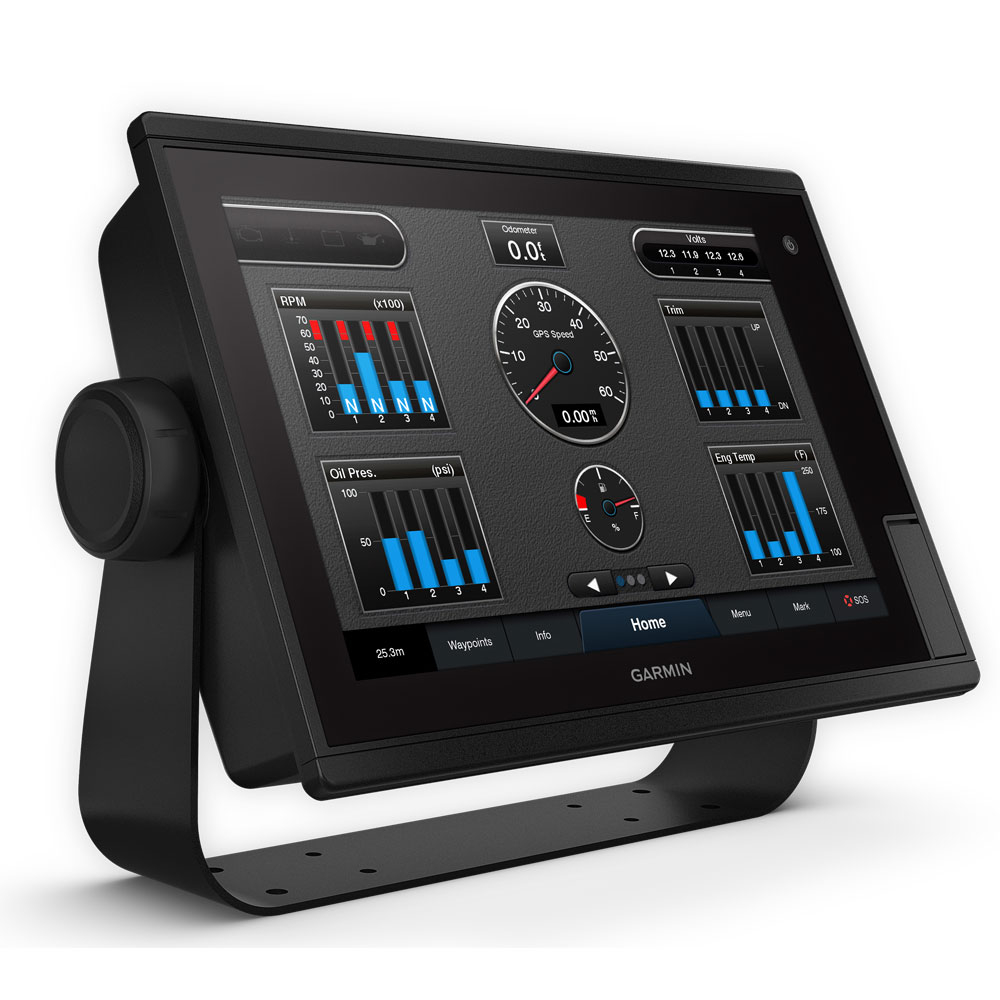

J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including Yamaha engines.

ONEHELM™ FEATURE
This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

Specifications

  • Dimensions: 33.0 x 22.6 x 7.9 cm
  • Display size, WxH: 26.2 x 16.3 cm (12.1" diag)
  • Display resolution, WxH: 1280 x 800 pixels
  • Weight: 2.6 kg
  • Antenna: Internal or external over NMEA 2000
  • NMEA 2000® & NMEA 0183 compatible
  • Video input ports:1 BNC
  • Video output ports:1 HDMI
  • Typical current draw at 12 Vdc: 2.2 A
  • Mounting options: Bail, flat or flush
  • Garmin Marine Network™ ports:2
  • 2 SD™ cards
  • Waypoints 5,000: Routes 100
  • Track log 50,000 points; 50 saved tracks
  • Sonar frequencies supported: (dependent on transducer)
    • Traditional: 50/77/83/200 kHz
    • CHIRP (low, medium, high)
    • ClearVü/SideVü (260/455/800 kHz)
  • Transmit power:1 kW traditional; 1 kW single channel CHIRP
  • Maximum Depth: 5,000 ft (1524 m) at 1kW (depth capacity is dependent on water bottom type and other water conditions)
  • Transducer connection pins: 12 pin

In The Box

  • GPSMAP 1222xsv Plus Chartplotter
  • Power cable
  • 8-pin transducer to 12-pin sonar adapter cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
