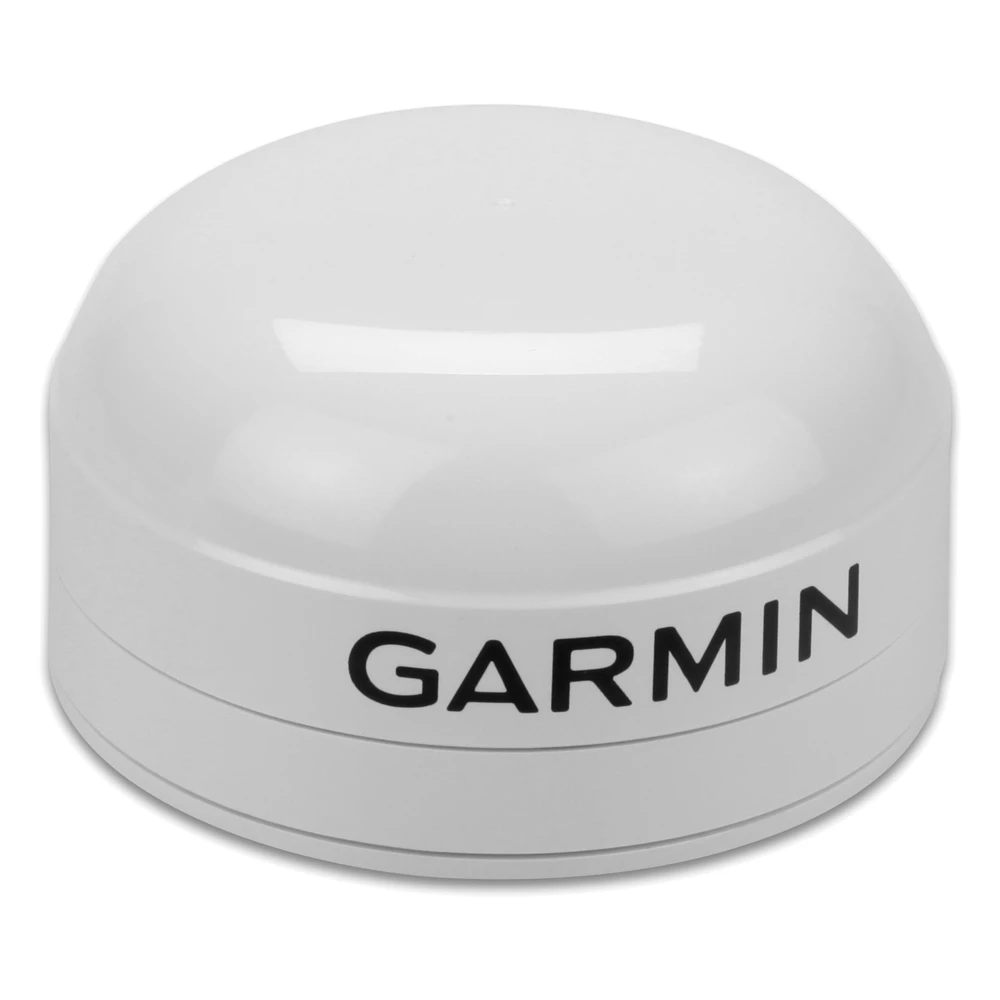

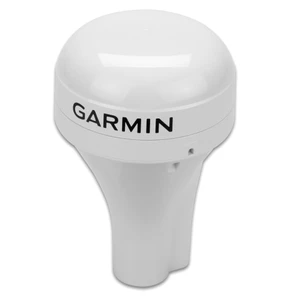

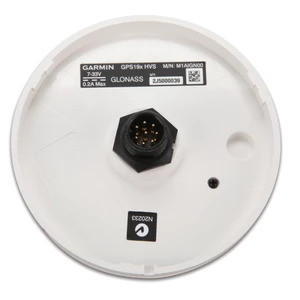

Garmin GPS 24xd GPS Receiver and Heading Sensor

Explore coastal waters with the GPS 24xd position receiver and antenna. Get precise position accuracy¹ with multi-band GNSS, 10 Hz update rates and multi-constellation support (GPS, Galileo², GLONASS and BeiDou²). Gain peace of mind in signal accuracy, thanks to multi-SBAS compatibility. Pinpoint your heading to within 3 degrees — regardless of speed — with the built-in magnetic heading sensor, which in turn delivers optimum chart stability, radar overlay and MARPA. The antenna is NMEA 2000® network compatible.

Features

• Multi-band GNSS provides precise location accuracy¹
• Magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds
• Compatibility with four key satellite constellations (GPS, Galileo², GLONASS, BeiDou²) for global usage
• Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals
• 10 Hz position updates rates for high-sensitivity tracking
• Easy installation with under-deck, pole and surface-mount options; NMEA 2000® network compatible

Specifications

• Dimensions (D x H): 91.6 mm x 49.5 mm
• Weight: 201 g
• Cable length: 6 m
• Temperature range: -30° to 80° C
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 150 mm
• Power source input: 9-16 Vdc, unregulated
• Input current: 150 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%

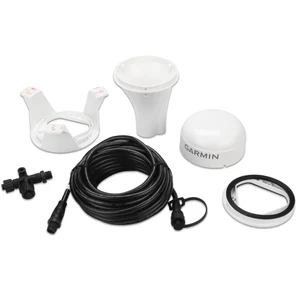

In The Box

• GPS 24xd NMEA 2000®
• Pole mount
• Surface mount
• Under-deck mount
• NMEA 2000 backbone/drop cable (6 metres)
• NMEA 2000 T-connector
• Documentation

¹<1 meter CEP, <3 meters 95%

²Supported when available
