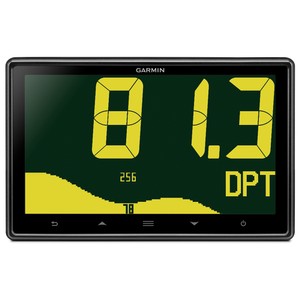

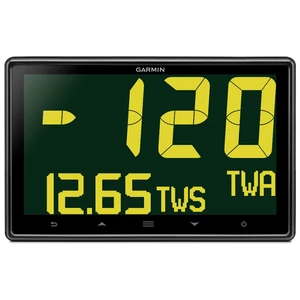

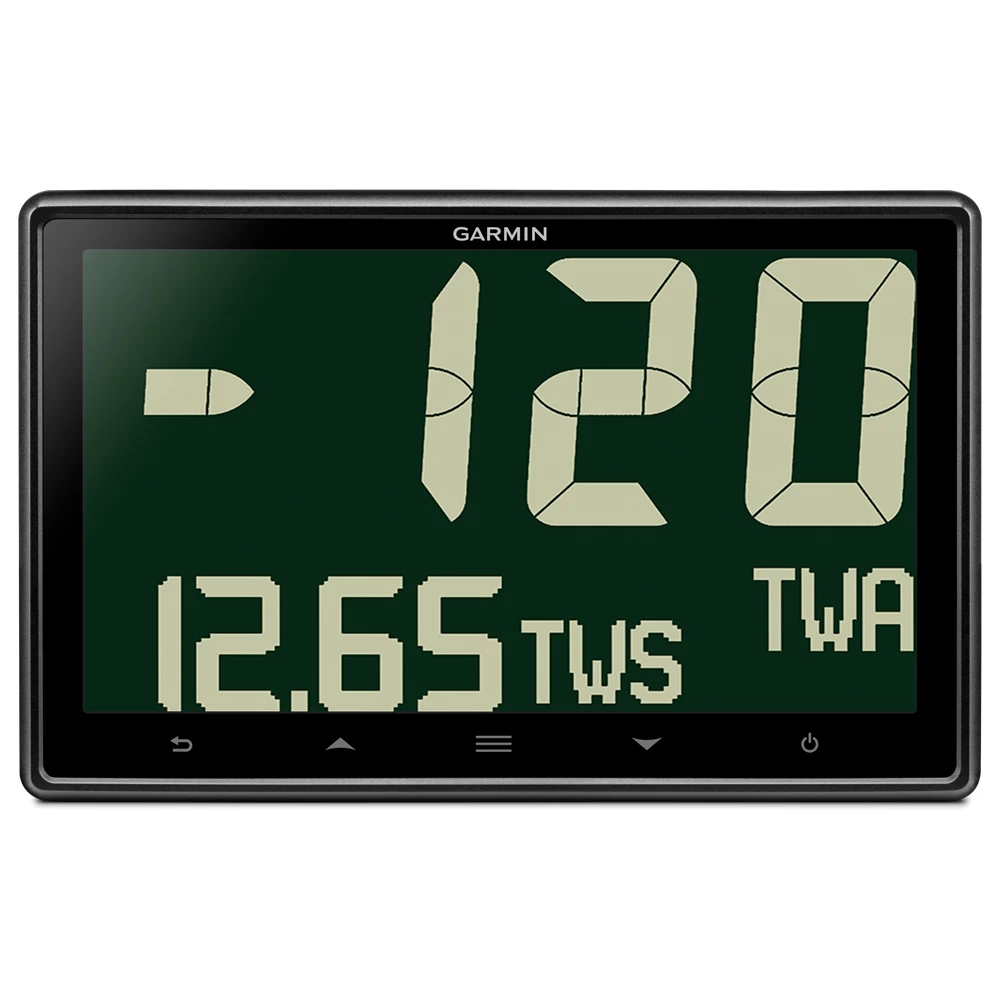

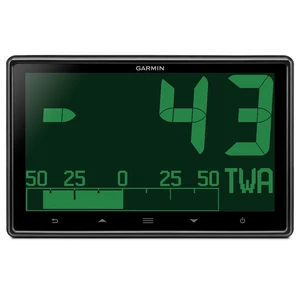

Garmin GNX 120 7 inch Large Format Marine Instrument

Designed for serious sailors who demand quality, precision and total integration, this high-precision glass-bonded 7-inch large format instrument creates a beautiful “glass mast” display with superior readability day and night. It allows seamless sharing of sailing data between Garmin devices and is controlled from a compatible GNX keypad. It is easy to set up, calibrate and use.

• High-precision glass-bonded backlit LCD display avoids fogging
• Bold 2-inch (51 mm) digits are the largest digits in class
• Provides the data necessary to make confident decisions
• Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
• Integrated sailing eco-system allows seamless sharing of sailing data between Garmin devices

Features

Easy-to-read Display
Unique high-contrast hybrid display features the largest digits in class. Easy-to-read digits are 2-inches (51 mm) tall. Adjust to your preference of white or colour digits for excellent clarity in direct sunlight, at dusk, or at night. The dot-matrix section can show additional details and/or graphical information.

Glass-bonded Display
Glass-bonded display helps prevent fogging, and the anti-glare lens finish increases visibility.

Tailor Display for Optimum Viewing
Choose from 7 different backlight colours, or even create a customized colour, to achieve the screen that provides optimum readability for you.

Customisable User Profiles
Fully customisable user profiles allow you to choose from 5 available display configurations for sailboat or powerboat user-profiles: single, dual and triple function, plus Gauge and Graph mode to display wind, depth and speed data or customise the pages to display the marine and boat data that is most important to you.

Auto-scroll
Set your display to automatically cycle between pages at a speed you set for convenient, hands-free operation.

Low Power Consumption
Perfect for sailors who want to sail for long intervals without having to run a motor or generator to charge batteries. Uses only 0.36 W daytime usage requiring no backlight and just 0.4 W with a mid-level backlight setting at night.

NMEA® 2000
Monitor more than 50 marine and boat parameters, including GPS speed, water depth and temperature, wind direction and wind speed from the NMEA 2000 bus.

Smooth, Clean Look
Flat or flush mount for a beautiful glass mast look using optional carbon fiber mast bracketsres

Specifications

• Dimensions: 181 x 115 x 17 mm (7.12'' x 4.53'' x .67'')
• Display size: 150 x 83 mm (6'' x 3.27'')
• Display Type: Inverted LCD, monochrome
• Weight: 380 g (13.4 oz)
• Waterproof Ration: IPX7
• Mounting Options: Flat or Flush
• Power Consumption: 0.36 W (day); 0.4 W (night)
• Temperature range: -15° to 70°C

In The Box

• GNX 120
• Trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• NMEA 2000® T-connector
• NMEA 2000 drop cable
• Documentation
