GMR18HDPLUS Radar GMR18HDPLUS Radar GMR18HDPLUS Radar
GMR18HDPLUS Radar GMR18HDPLUS Radar GMR18HDPLUS Radar
Garmin

GMR18HDPLUS Radar

Catalogue Code: 220443
£ 1,329.95 In Stock
Save £ 120.04 RRP £ 1,449.99
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
Optional Extras Tick to add optional extras to your basket
SteadyCast Heading Sensor
SteadyCast Heading Sensor £159.95 Save £20.00 RRP £179.95
SC20 Radar Mast Mount
SC20 Radar Mast Mount £259.95 Save £38.85 RRP £298.80
  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

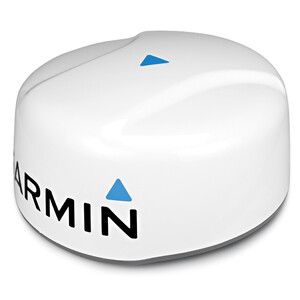

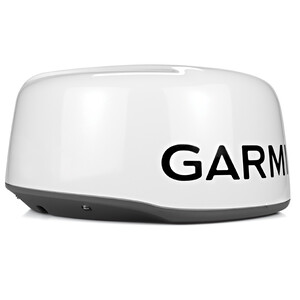

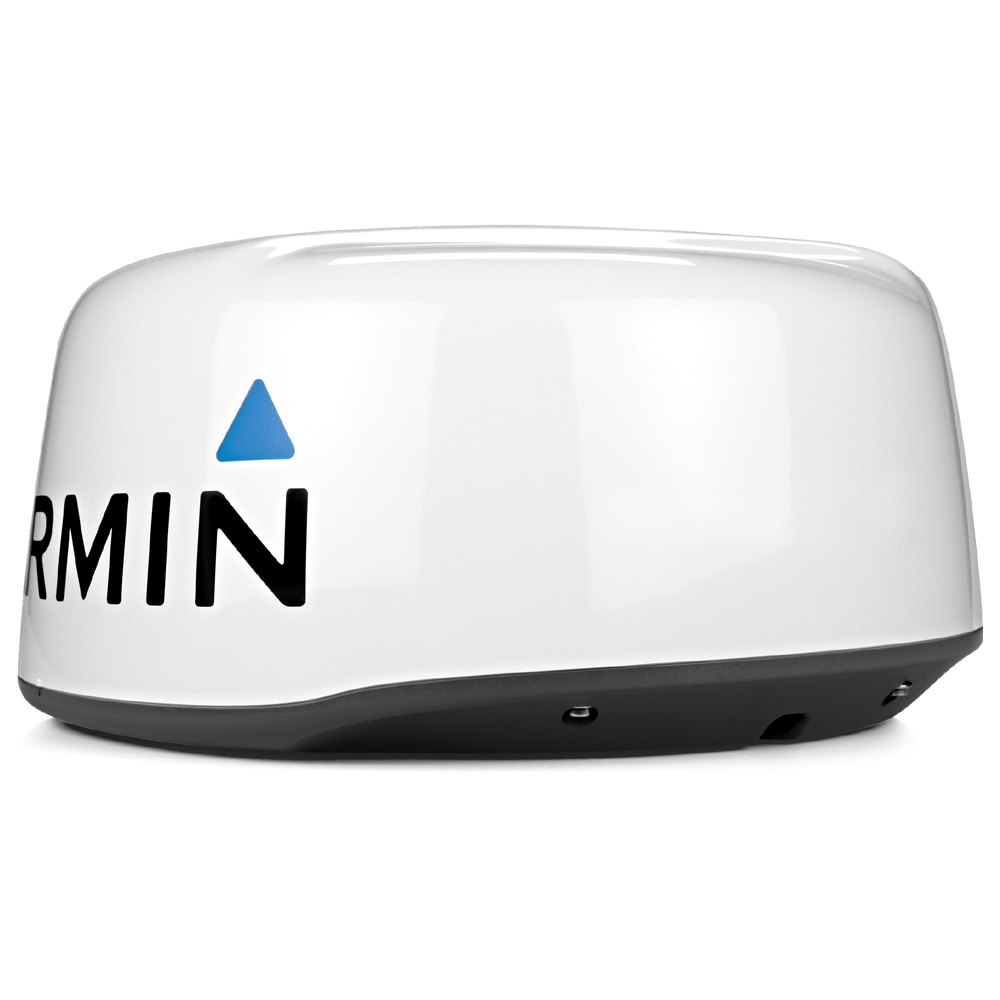

Garmin GMR18HDPLUS Radar

The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).

  • Streamlined 18-inch 4 kW dome radar
  • Delivers 4 kW transmit power and clear echo definition at all ranges
  • Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
  • Dynamic Sea Filter automatically adjusts to changing sea conditions
  • Overlays radar image on the chartplotter map page (autopilot or heading sensor recommended for best results)


Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true colour resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it’s easy to install and start using.

Specifications

  • Physical dimensions - 50.8 cm diameter, 24.8 cm high (20" diameter, 9.75" high)
  • Weight - 7.7 kg (17 lbs)
  • Water rating - IPX7
  • Power consumption - 30 W typical; 48 W max
  • Antenna length- 43.18 cm (17")
  • Rotation speed (RPM) - 24 rpm
  • Transmit power - 4 kW
  • Power input - 11-35 V DC
  • Beam width - 5.2° horizontal, 25° vertical
  • Maximum range - 36 nm
  • Minimum range - 20 meters

In the Box

  • GMR 18 HD+ radome
  • Mounting hardware kit
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Installation instructions
  • Mounting template
