Fusion

Fusion Damaged Box Signature Series 24V 6 Channel Marine Amplifier

Catalogue Code: 200582D
£419.95
Discontinued
Save £199.05 RRP £619.00

Sorry this item is no longer available

Optional Extras Tick to add optional extras to your basket
RCA 2 Zone 4 Channel Audio Cable
RCA 2 Zone 4 Channel Audio Cable £43.95 Save £5.05 RRP £49.00
RCA 1 Zone 2 Channel Audio Cable
RCA 1 Zone 2 Channel Audio Cable £19.95 Save £2.05 RRP £22.00
  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

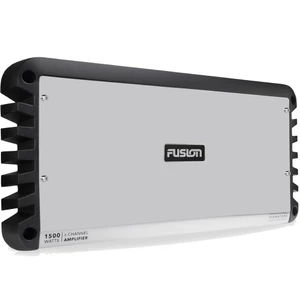

Fusion Damaged Box Signature Series 24V 6 Channel Marine Amplifier

RRP £619.00, Only £419.95

Damaged box stock - Stock with dented or ripped outer carton packaging but no damage to the product itself. Sold with full warranty.

The MS-DA61500 is a 24V, 6 Channel, Class-D Hi-Fi Marine amplifier. The key benefit of a Class-D amplifier is low battery drain with a high output, making this the perfect amplifier for the marine environment. The MS-DA61500 incorporates heat-tempered and conformal coated PCBs for maximum product life, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.

The 1500 Watt peak power output will power up to 6 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) and 1 subwoofer. RCA line-level inputs allow for easy connection to new or existing systems.

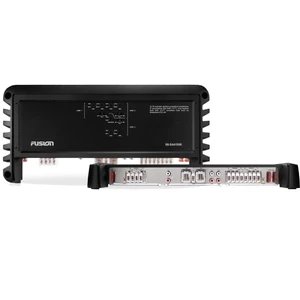

The attractive stainless steel cover conceals the amplifier set up controls and connections for a discreet look to complement any vessel.

This product is rated True-Marine and carries with it a 3 year limited consumer warranty.

Features

Class-D Amplifier Technology - The highly efficient Class-D design provides 1500-Watts peak power whilst drawing less current than a standard Class-AB amplifier. This design provides increased efficiency and power output to your speakers, letting you enjoy your music for longer.

1500 Watts Peak Power – With a peak power of 1500 watts, you can easily power up to 6 pairs of speakers or up to 4 pairs of speakers with a subwoofer.

Marine-Ready Design with Conformal Coated PCBs - Extending the life of your amplifiers, the Signature Series are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.

Rigid Aluminum Alloy Heat Sink - Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

Stainless Mirror Finish - The polished stainless-steel control panel cover conceals and protects all cable connections and settings controls whilst providing an attractive finish to complement any installation.

Speaker Configuration - Whether you require 2 Ohms per channel or 4 Ohms bridged, your Signature Series amplifier has your installation options covered to achieve the optimum output levels. Connect up to 2 speakers per channel (2 x 4 Ohm speakers in parallel) with your SG-DA61500.

Zone Designation - To align with the Fusion entertainment system zone philosophy, the input and output connections are labelled as zones.

True-Marine Design - Signature Series amplifiers are perfect for the marine environment, and carry a 3-year warranty.

Specifications

  • Frequency Response 10Hz - 40kHz
  • Peak Power 1500 Watts
  • Rated Power (4 Ohms) 100 Watts RMS x 4 @ 28.8V - 4 Ohms 1% THD
  • Rated Power (2 Ohms) 140 Watts RMS x 4 @ 28.8V - 2 Ohms 1% THD
  • Rated Power (4 Ohms Bridged) 280 Watts RMS x 2 @ 28.8V - 4 Ohm Bridged 1% THD

Mounting Dimensions

  • Height 57mm [2 1/4”]
  • Length 420mm [16-9/16”]
  • Depth 210mm [8-1/4”]



Availability
Stock Availability

This item has been discontinued and is not available to purchase.

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
How do I know if I need 12 or 24v? I want to amplify 3 zones out of 4 zones. No sub 3 x pairs of speakers What’s the difference between the signature amplifier and the gnu Apollo amplifier? Regards Russell Russell Franks
Hello It should be 12v you need. the Apollo is rated at 150W while the MS-AM402 is 65w. The Apollo is probably going to be easier to connect and control your speakers with the zone feature 04/03/22
