GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD
GP-1871F Chartplotter Fishfinder MFD GP-1871F Chartplotter Fishfinder MFD GP-1871F Chartplotter Fishfinder MFD GP-1871F Chartplotter Fishfinder MFD GP-1871F Chartplotter Fishfinder MFD GP-1871F Chartplotter Fishfinder MFD
Furuno

GP-1871F Chartplotter Fishfinder MFD

Catalogue Code: 210495
£ 899.95 In Stock
See Product Description Add to Wish List
  • Ask a question
Optional Extras Tick to add optional extras to your basket

View all 4 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

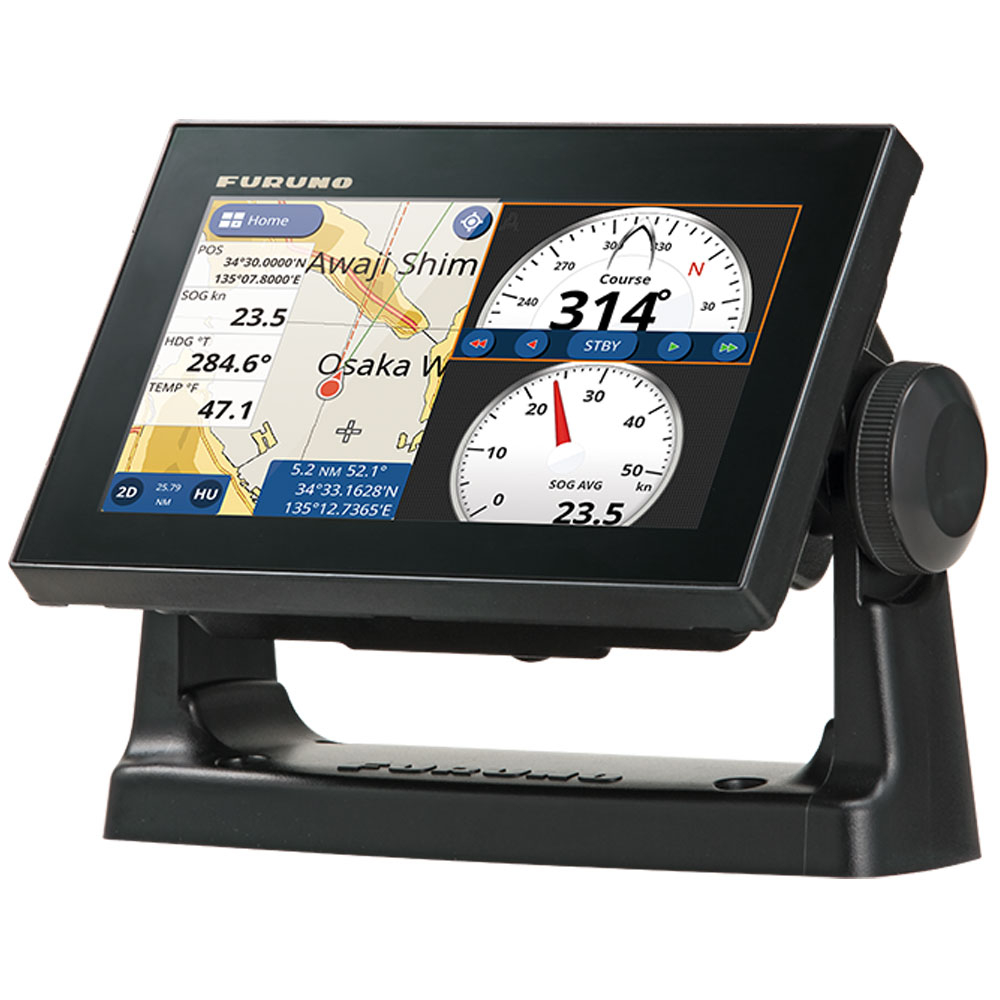

Furuno GP-1871F Chartplotter Fishfinder MFD

Powerful technology in a compact 7" Chart Plotter with Built-in CHIRP fish Finder

  • 7" Touchscreen Multifunction Display
  • Simple operation with multi-touch interface
  • Compatible with DRS4W 1st Watch Wireless Radar
  • Powerful 1kW Truecho CHIRP fishfinder
  • AR (Anti-Reflective) glass coating and strengthened glass filter
  • Internal GPS antenna for simple and easy installation
  • Daylight viewable with excellent readability , brightness of 1000 cd/m2

Multi-Touch Interface

Convenient and intuitive slide-out menus
The GP-1871F/1971F smart interface, inherited from the NavNet TZtouch2,
features slide-out menus containing all the tools and data you need to be in total control

Display modes customization
Customize your display modes and create the perfect
combination to fit your individual needs.

Finger Gestures
With the Finger Gestures (one or two fingers) you can either zoom-in, zoom-out, double tap to take a screenshot or even jump to a full-screen mode when using Split-screen display mode.

Easy screenshot and MicroSD card
Tap the display with two fingers to capture a screenshot
that will be saved directly to your microSD card.

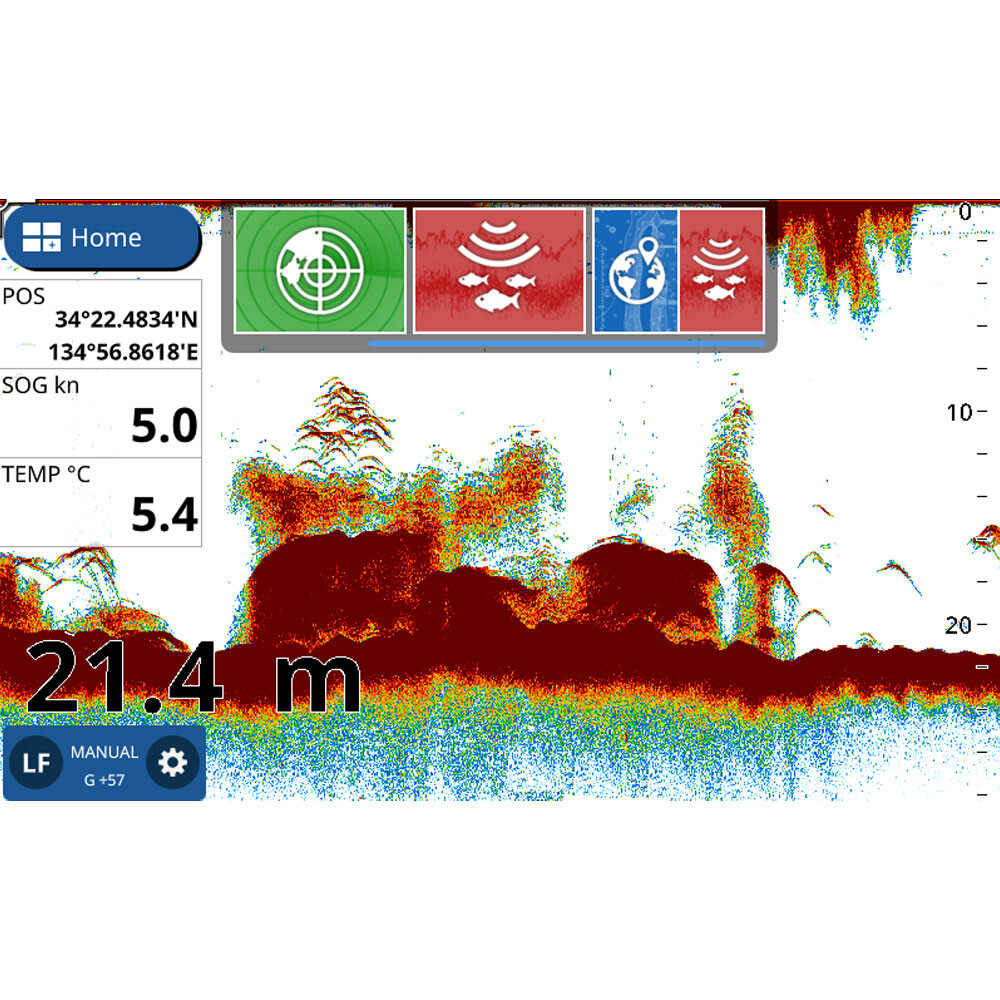

Built-in CHIRP FISH FINDER

Unmatched detail with TruEcho CHIRP

The high level of detail available with TruEcho CHIRP™ technology helps to distinguish fish schools, even when close to the sea bed.
Fish can be observed with a very high resolution and are displayed in a distinct boomerang shape. The clear presentation marks individual game fish and bait fish, even when tightly schooled together.

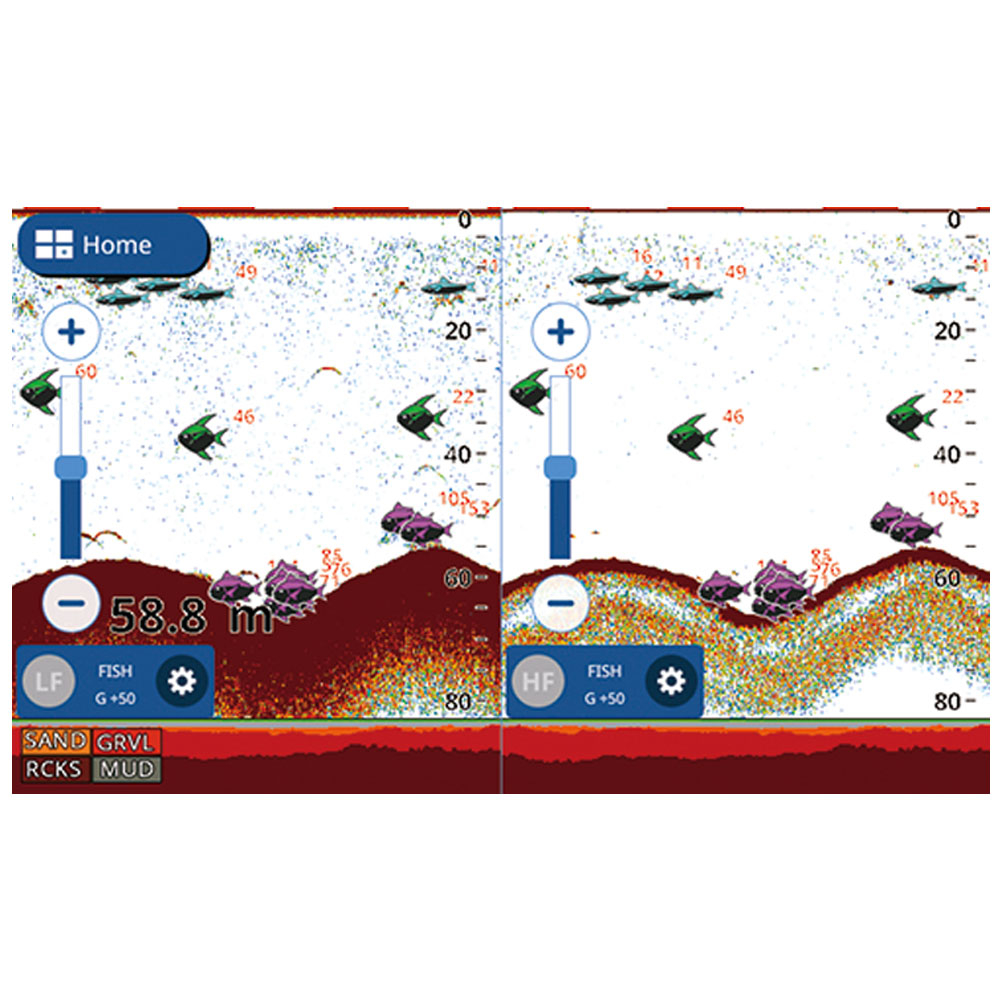

ACCU-FISH™ and Bottom Discrimination with RezBoost™
With FURUNO’s RezBoost™ data processing technology, fish schools and echoes are shown with high resolution while you can assess fish size and bottom composition thanks to ACCU-FISH™ and Bottom Discrimination functions.
Additionnaly, ACCU-FISH™ icons and colors can be freely customized according to the size and depth of the targeted fish.

Chart Plotter (with internal GPS antenna)

Detailed Chart with C-MAP 4D compatibility
By using the incredibly rich C-MAP 4D charts, the GP-1871F/1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.

Autopilot controls
Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chart Plotter.

C-MAP C-Weather
C-Weather data can be downloaded from C-map.com providing Wind, Wave, Weather, Humidity and Temperature information.

Plotter with AIS symbols
When connected to an AIS receiver, the GP-1871F/1971F will display the latest AIS data and provide vessel information.

Various display modes
Including Shaded reliefs, 3D and Satellite views.

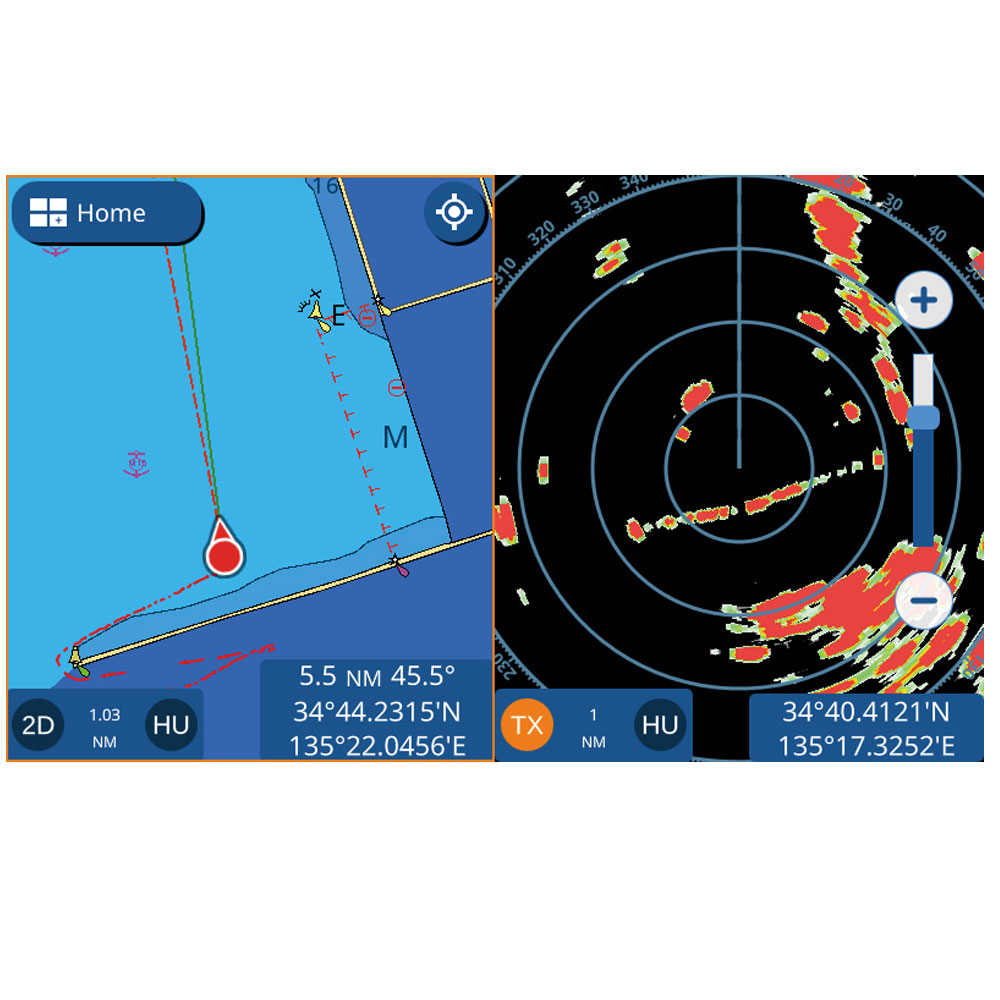

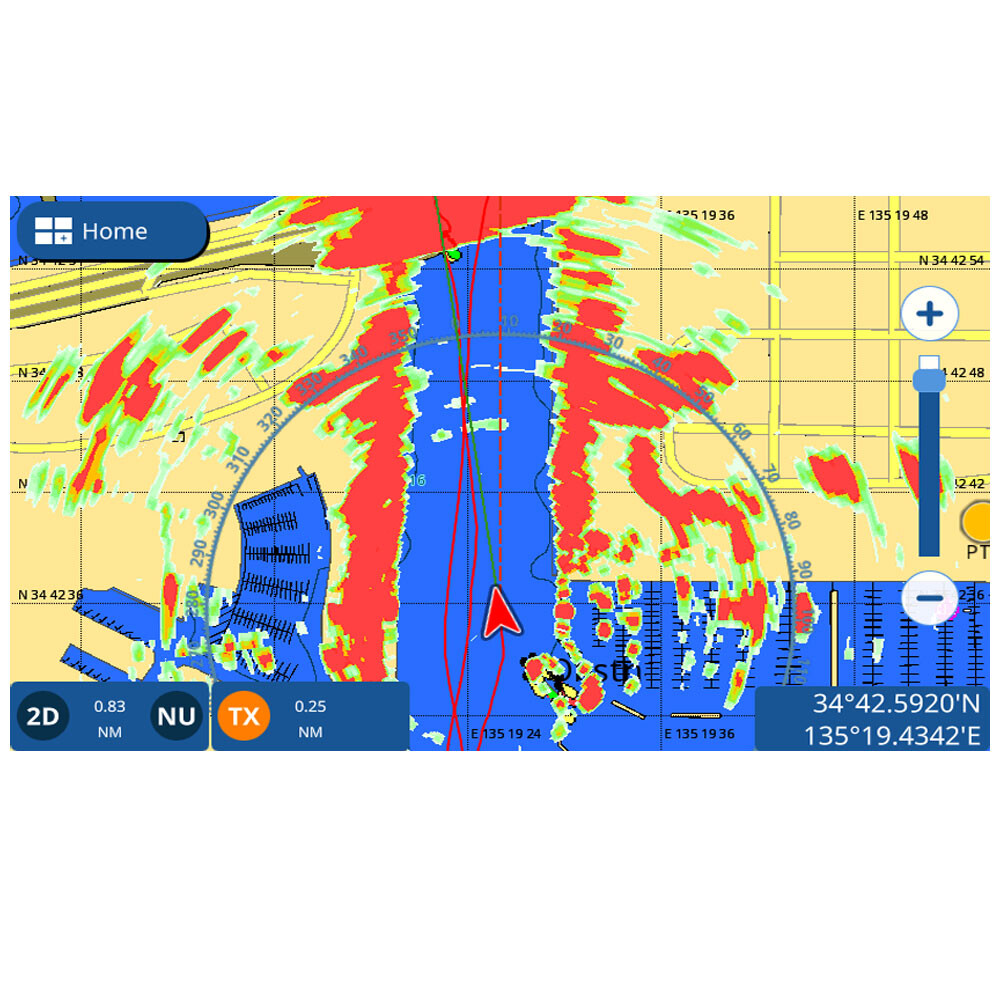

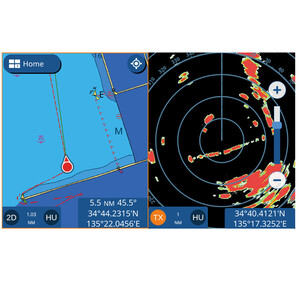

Wireless Radar Connection

DRS4W 1st Watch Wireless Radar
The GP-1871F and GP-1971F are connectable to the 1st Watch Wireless Radar
(Output Power 4 kW) giving your Chart Plotter a major upgrade in accuracy and safety.

Specifications

  • Screen Type: GP-1871F: 7" Wide Color TFT LCD
  • Screen Resolution: WVGA 800 x 480 pixels
  • GPS Antenna: Internal Antenna
  • Display Modes
    • Chart Plotter
    • Fish Finder
    • Radar (connection to the 1st Watch Wireless Radar DRS4W required)
    • AIS (connection to AIS sensor required)
    • Instruments (Nav Data, Engine, Wind, Fuel tank) -
    • Autopilot (connection to the FURUNO NAVpilot-300 or 700 series required)
  • Language: English (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese.
  • GPS / SBAS (WAAS/EGNOS/MSAS)
  • Receiving Type: GPS 72 channels WAAS 1 channel
  • Accuracy GPS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m MAX
  • Chart Compatibilty: C-MAP 4D
  • Memory Capacity
    • 30,000 points for ship's track and waypoints
    • 1,000 planned routes (Max. 50 points per route)
    • 5,000 quickpoints
  • Frequency: CHIRP: 40 to 225 kHz CW: 50/200 kHz
  • Transducer Compatibility: 300 W or 600 W or 1kW (Transducer dependent)
  • Range:5-1, 200m, shift :0-500m
  • Fishfinder Modes: TruEcho CHIRP™*, RezBoost™**, ACCU-FISH™**, Bottom Discrimination**, Dual Frequency**, Dual Range** Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock
  • NMEA2000: 1 port (Interface CAN bus)
  • NMEA0183: 1 port
  • Micro SD Card Slot x2 (32 GB)
  • Waterproofing: IP56
  • Power Supply: 12-24 VDC, 1.0-0.5 A

* CHIRP dedicated transducer required
** Dual frequency CW compatible transducer required

In The Box

  • Furuno GP1871F
  • Rubber screen cover
  • Screen cleaning cloth
  • Mounting bracket with knobs & fixing screws
  • Flush mount gasket & screw kit
  • Power cable
  • Flush mount template
  • Operators guide & installation manual
