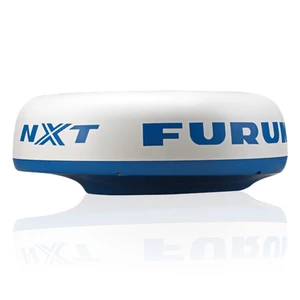

DRS4D-NXT 24 inch Solid State Doppler Radar
- Delivery & Returns
NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation. The NXT series features Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost™ technology, the NXT Radars have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.
- Solid-State pulse compression Doppler Radar
No preheating time, low energy consumption (no use of a magnetron)
- Revolutionary Target Analyzer™ function instantly identifies hazardous targets
- Fast Target Tracking™ and Auto Target Acquire function, up to 100 targets
- RezBoost™ beam sharpening to increase the resolution
- Effective Horizontal Beam*
Can reach a value equivalent to 0.7°with DRS6A-NXT (XN13A) and 2.0°with DRS4D-NXT, when using RezBoost™
*the lower the better
- Bird Mode to find the best fishing grounds by tracking birds
- Simple installation, no need to open the radome (DRS4D-NXT only), external PSU is not required
- New smart-connector cable for retrofitting existing DRS cable installations (DRS4D-NXT only)
When the “Rain mode” is on, rain echoes are shown in blue. This mode is particularly useful as it has the capability to detect targets masked by rain clutters.
Fast Target Tracking™ and Auto Target Acquire function
With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.
When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm*.
Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel’s course and speed.
*TCPA setting required
NXT Radars feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.
RezBoost™ beam sharpening
FURUNO's exclusive RezBoost™ technology has been incorporated into our Radar units for enhanced resolution and impressive performance. With RezBoost™ set to MAX, the sharpness offers an incredibly detailed image with more targets and less clutter.
- Type: Radome (24")
- Vertical beam width: 25 deg
- Horizontal beam width/ Rezboost Effective Horizontal Beam: 3.9 deg (-3dB) / 2 deg
- Antenna rotation speed: 24/36/48 rpm coupled or 24 rpm fixed
- Output power: 25W
- Minimum range: 20m
- Range resolution: 20m
- Range accuracy: 1% of range in use or 10m, whichever is the greater
- Bearing accuracy +/- 1%
- Ports: LAN:1port, Ethernet, 100Base-TX, RJ45
- Power supply: 12-24 VDC:2.5-1.3A
- Operating temperature: -25 to +55 deg C
- Waterproof: IP56
- Weight: 7.3kg
In The Box
- DRS4D-NXT Radome
- Fixing hardware
- Drilling template
- User manual
Click here for the product brochure
