Furuno

1815 Radar System

Catalogue Code: 220537
£ 2,399.95 In Stock
See Product Description Add to Wish List
  • Order within the next 3 hours 15 mins for dispatch today
  • Ask a question
Optional Extras Tick to add optional extras to your basket
SC21 Radar Mast Mount
SC21 Radar Mast Mount £294.95 Save £44.65 RRP £339.60
4 degree Radar Wedge
4 degree Radar Wedge £134.95 Save £9.05 RRP £144.00
  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

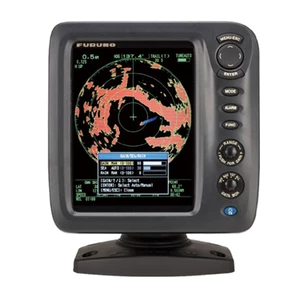

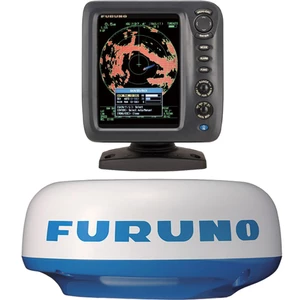

Furuno 1815 Radar System

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.


Features



  • Compact 4kW 19”Radome antenna with 15m radar cable

  • Low power consumption of 38 W

  • Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter

  • Fast Target TrackingTM (TT) function - manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed

  • AIS display - When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen

  • True Trail mode - moving objects will show up on the main screen with a gradational trail



Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter


To display targets clearly and accurately, the gain must adjusted. The MODEL1815 can do this automatically for you. By automatically adjusting the gain, the Radar eliminates unnecessary echoes and display a clear image.






Fast Target Tracking™ (TT) function


Fast Target TrackingTM (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displaed. With accurate tracking information, estimation of other vessel's course and speed is made easier.




True Trail mode


When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.






AIS display


When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.





Specifications



  • Peak Output Power: 4 kW

  • Beam Width (Horizontal) 5.2°

  • Beam Width (Vertical) 25°

  • Range Scales 0.0625 - 36 NM

  • Minimum Range 25 m

  • Antenna Rotation Speed 24 rpm

  • Weight 6.5 kg 14.3 lb

  • Display ModeHead-up, Course-up*, North-up*, True view, True motion**


* Heading data required
** Heading data and position data required



  • Waterproofing Antenna unit: IPX6 - Display unit: IP56

  • Power Supply / Consumption Current 12-24 VDC, 3.2-1.6 A

  • Power Cable Length 3.3m

  • Radar Cable Length 15m
