Description
Force 4 Electric Comfort Sea Toilet 12V

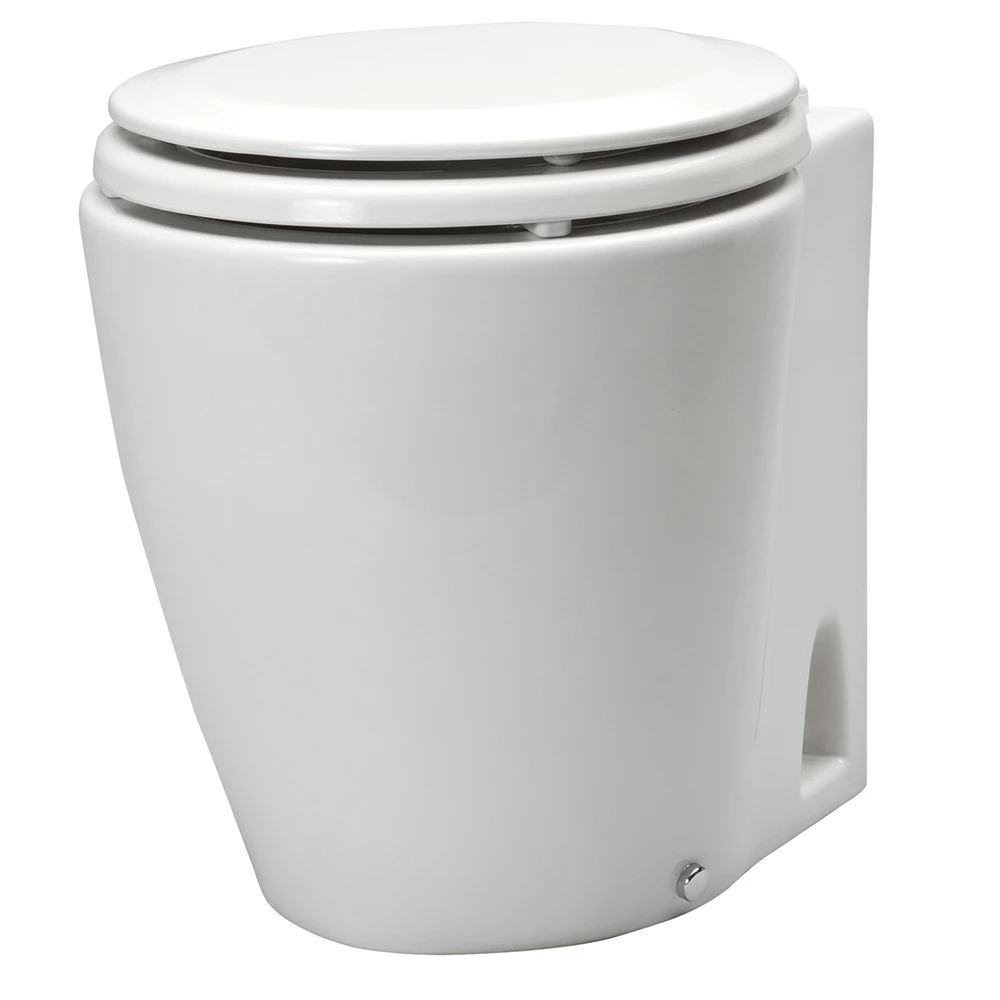

Electric Comfort Sea Toilet 12V - A smart fitted design electric toilet, with a vitreous china bowl, which is both attractive & comfortable to use.

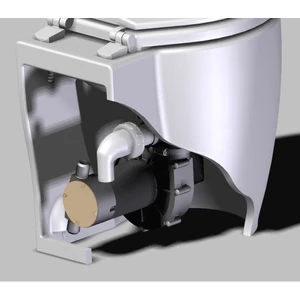

Easy to install, the combined flushing and waste removal pump unit is integrated into the base of the bowl. It can be installed either above or below the waterline & the macerator pump allows expulsion up to 3.50m in height.

Manufacturer P/No: 6500200912

Features:

  • 12V DC
  • Self priming up to 1.5m vertically
  • Flush use around 1 - 2 litres per flush
  • Bowl left dry after flushing

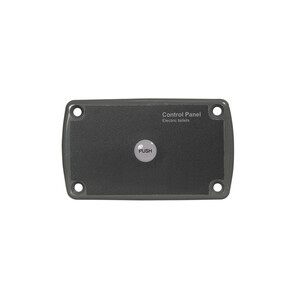

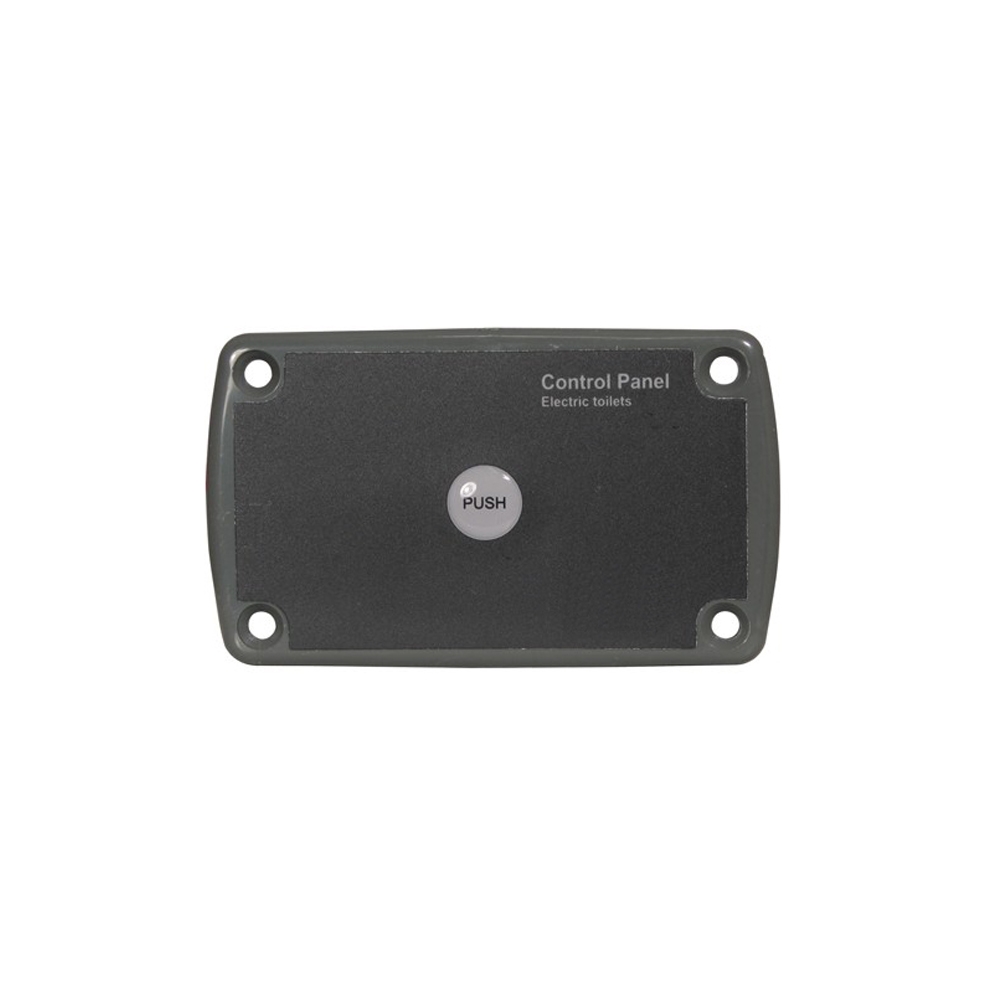

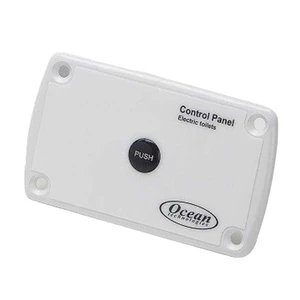

  • Supplied with a one-push button control panel
  • All metal parts and screws are stainless steel
  • Complies with ISO 8846, EN 55014
  • Hose Connections: Inlet 19mm (3/4”), Outlet 38mm/25mm (1.5”/1”)
  • Amp Draw: 24Amp
  • Dimensions: W340 x D316mm, H340mm (lid closed), H411mm (lid open)

Manuals and Data Sheets:

Download Installation Instructions here.

Download Technical Information Document 1 here.

Download Technical Information Document 2 here.

Please Note: Not suitable for pressurised systems, draws raw water with its own pump.

Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

This item is currently not available to purchase.

Delivery & Returns
Delivery

Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options. We are currently only able to offer an Airmail service for orders under 2kg

UK Standard Delivery

  • UK Mainland 0 - 1Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days
  • UK Mainland 1 - 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 1Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Northern Ireland, Highlands & Islands 1 - 20Kg £9.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Northern Ireland, Highlands & Islands 20Kg+ Price on request
  • Channel Islands 0 - 1Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 1 - 20Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 20Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £24.00
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected] This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
Can this be connected to the pressurized fresh water system? D

The toilets are designed to draw water, using the in-built pump, for the flush function.  They are not suited to a pressurised system.

22/01/19

what fittings do i need , i’m swapping an existing vetus toilet for this one hopefully Roddy

We don't know you current installation so it's hard to say.  You may wish to re-new the hoses and clamps? It does come with S/S screws but you may need some suitable wires to connect the 12V supply.

Hose Connections are: Inlet 19mm (3/4”), Outlet 38mm/25mm (1.5”/1”)

20/3/19.

My toilet 2 years old is not drawing sea water to flush, is this a pump problem. It still flushes. Does the impeller need replacing. Do you have a schematic, a list of spare parts and source for spares? Ian Hopkins

Debris is usually the cause, especially as the flush is still working, however it could also be the impeller. The determine the fault, it will need be dismantled. Please see the spares list attached to this answer if required.

29/10/18

Hi,Can this be used on a narrow boat that doesn't have a pump out system ?Thanks Don Ashley

Product code 830790 is better suited for freshwater systems.

20/3/19

I want to use this toilet in a Sprinter van conversion, but I'll only have a 100-130 litre water tank so I'm concerned about water usage... How many litres does it use per flush? Connor Bassett

On average the toilet will use 1-2 litres of water per flush, this is dependant on the length of time the button is pushed.

30/05/19

Can this toilet be fitted in an RV? Samantha lewis

Yes - This 12v toilet could be used on board an RV.

29/1/19

Hi,Do you have picture from top? I'd like to see the seat shape. The dimensions suggests its wider than deep... that sounds wrong. Also height sounds wrong. Or do you have the seat dimensions? Is it a round seat? Or oval shaped.... W340 x D316mm, H340mm (lid closed), H411mm (lid open).What's the warrantee? Mwituni

The dimensions are correct. There is a 1 year Warranty for every product we sell. Please see images attached to view the top of the Toilet.

24/04/19

Hi. Does this leave the bowl dry & can it be used with raw (river) water flush? Thanks James

The Operating Instructions attached say that you are to push the button switch to operate flush until the bowl is thoroughly rinsed and the discharge pump has ejected the water from the base of the bowl. If the toilet has not been used for a while, and the bowl is dry, it’s recommended to operate the pumps for a few seconds so the bowl gets wet. This would indicate that the bowl is left dry after flushing. The instructions also say that the built in rinse pump is suitable for raw water or fresh water from separate toilet water tank.

23/08/19

Is this model ok for domestic installation (240v) in an en suite which gets little use?

Derek Cunningham

This toilet runs off 12v so would not be suitable for a 240v installation. It may work ok if you purchase a 240v to 12v transformer but this is not a normal use so we can not state if it would be an ideal solution for your intended use. There may also be issues with the mains water pressure as this toilet is designed to draw water using an inbuilt impeller.

22/10/18

I can’t see how it bolts down.does it use the existing Jabsco mount points?Thanks Graham

Please find the Instructions for this toilet attached, showing the dimensions you require.

05/07/19

HiIs this suitable to be fitted in a domestic property? Does this use air along with water( like flight toilets) for flushing?Thanks Jerin

Marine toilets are not suitable for use in domestic homes.  They draw water to flush but can not be from a pressurised supply. They require 12V power so a 240V to 12V step down transformer would have to used.

22/2/19

Hi, will these run at 24v as well as 12v? Simon

No, you will need to step down transform the voltage to 12V.

30/4/19

Can this toilet pump into a holding tank on a narrow boat ? Trevor

It will pump into a holding tank on a narrow boat, but it has a raw water inlet feed. It if is supplied from a water tank you would need a different model of toilet, which unfortunately, we do not sell.

12/09/19

What fresh water pressure will the flush system tolerate? Mr Simon Brittain
The toilets are designed to draw water, using the in-built pump, for the flush function. They are not suited to a pressurised system. 03/07/20
Does this toilet need a joker valve fitted in the discharge line ? Brian Warwick
No, as there is one built into the discharge elbow. 25/05/21
Does this toilet need 2 different grey water tanks to separate the solids and the fluids? I ask because there are 2 toilet seats...? Ryan
No this toilet does not require 2 separate grey water tanks, it has a built in macerator. It only has 1 seat and a lid. 04/06/21
