Bilge Pump Control Panel with Alarm
Bilge Pump Control Panel with Alarm
Force 4

Bilge Pump Control Panel with Alarm

Catalogue Code: 110067
£ 22.95 In Stock
Save £ 2.90 RRP £ 25.85
See Product Description Add to Wish List
  • Ask a question
  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

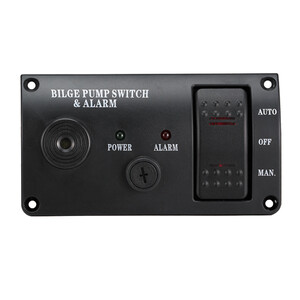

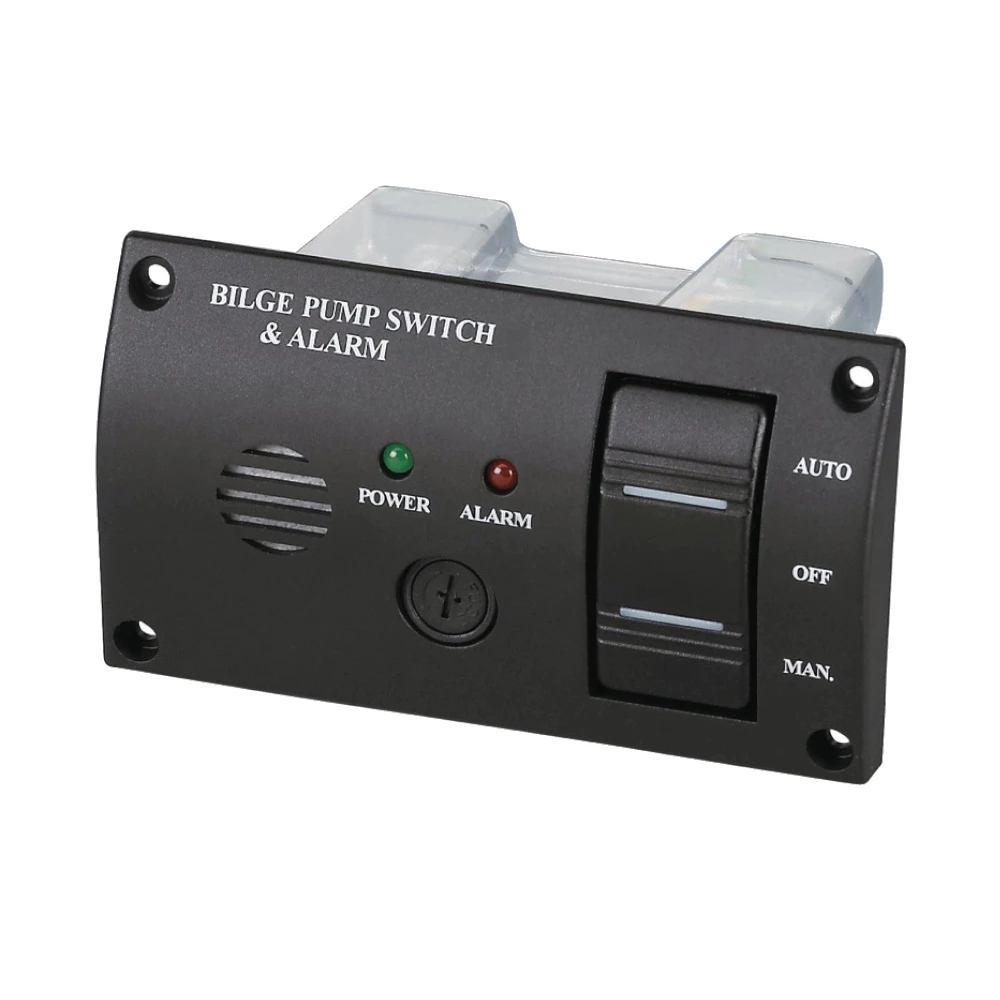

Force 4 Bilge Pump Control Panel with Alarm
A three way illuminated rocker switch with alarm incorporated featuring a unique safety backup system. For the alarm to function a second float switch will need to be installed.
• With the switch on Manual the pump runs continuously
• With the switch on Auto the pump is controlled by its float switch. Should the float switch fail, the second float switch will activate the alarm, but more importantly, will also start the pump
• With the switch in the Off position, the pump doesn't function until the water reaches the second float switch, also activating the alarm
• Voltage: 12V

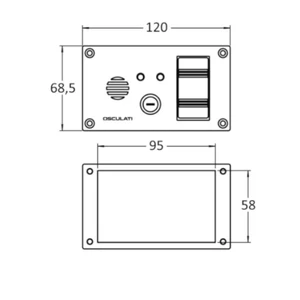

• Dimensions: 115 x 63mm
Availability
Stock Availability

Due to Covid-19, our store staff are working a reduced rota. As such we won't be offering our ship to store service until our stores are back to full capacity.

This item is currently only available to buy online.

Size Guide

Men's Size Guide

  To Fit Height To Fit Chest
X SMALL 5'2" - 5'4" 34 - 36"
SMALL 5'5" - 5'7" 36 - 38"
MEDIUM 5'7" - 5'10" 38 - 40"
LARGE 5'11" - 6'1" 41 - 43"
X LARGE 6'1" - 6'3" 44 - 46"
X LARGE 6'3" - 6'5" 46 - 48"



Shoe Sizes

UK EURO MENS US LADIES US
3.5 36   5.5
4 37   6
4.5 37.5   6.5
5 38 5.5 7
5.5 38.5 6 7.5
6 39.5 6.5 8
6.5 40 7 8.5
7 40.5 7.5 9
7.5 41.5 8 9.5
8 42 8.5 10
8.5 42.5 9
9 43 9.5
9.5 44 10
10 44.5 10.5
10.5 45 11
11 45.5 11.5
11.5 46.5 12
12 47 12.5
12.5 47.5 13
13 48 13.5
14 50 14.5
Delivery & Returns
Delivery

Due to curent events Force 4 Mail order are running as normal, but due to staff shortages we have turned off Next Day Delivery



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

UK Standard Delivery

  • UK Mainland 0 - 1Kg (small jiffy) £3.95 Royal Mail Service 3- 5 working days
  • UK Mainland 1 - 25Kg £5.95 Courier service with signature 3- 5 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature
  • Northern Ireland, Highlands & Islands 0 - 1Kg (small jiffy) £3.95 Royal Mail Service 3- 5 working days
  • Northern Ireland, Highlands & Islands 1 - 20Kg £9.95 Courier service with signature 3- 5 working days
  • Northern Ireland, Highlands & Islands 20Kg+ Price on request
  • Channel Islands 0 - 1Kg (small jiffy) £5.95 Royal Mail Service 3- 5 working days
  • Channel Islands 1 - 20Kg £13.50 Courier service with signature 3- 5 working days
  • Channel Islands 20Kg+ Price on request ​

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £15.00
  • UK Mainland; Flares £20.00
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on returns@force4.co.uk. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
I'm having difficulty finding switches with a low rear profile, for fitting onto/into wood panels with limited space behind them.As this is apparently a 'surface mount' product, what available depth ( in mm ) behind the mounting surface is needed? wil bailey

50mm open depth behind is required for mounting this switch.

5/4/19

Is this switch suitable for the cockpit and waterproof?

John Tricker

No, this switch has no IP rating so isn't suitable unless placed inside a waterproof enclosure.

12/4/19

Reviews
Reviews

- Almost

The unit does everything that I need from it. However the only thing I would suggest if the manufacturer does read these things is, the wiring loom soldered off the back of the terminals is only about 4inches long. It's far too short and so means it would need to have a terminal-block for onwards connections mounted virtually right behind where ever you decide to fix this control-panel (or re-solder some longer wires yourself). An extra 12-18inches of wire loom then strip them back to the length required, would allow more flexibility for the positioning of a term-block when using the panel straight out of the box. I would have paid an extra quid or two to cover the cost of longer wires, just for the convenience of not having to faff around with a soldering iron. Jim.W on Friday, 12th October 2018
