B&G Triton2 Wired Wind Speed Depth Pack
- Get it on Tuesday, 17th December if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
- This is a special order product and may experience shipping delays. Please call our Mail Order team to confirm delivery lead time.
- Ask a question
- Description
- Videos
- Availability
- Delivery & Returns
- Reviews
B&G CASHBACK OFFER - Get Up To £1000 Cashback when you purchase this accessory with a new B&G Multifunction Display and qualifying accessory.
See All Qualifying B&G products here
See Full Terms & Conditions Here
Offer Ends 20/12/2024. Whilst Stocks Last.

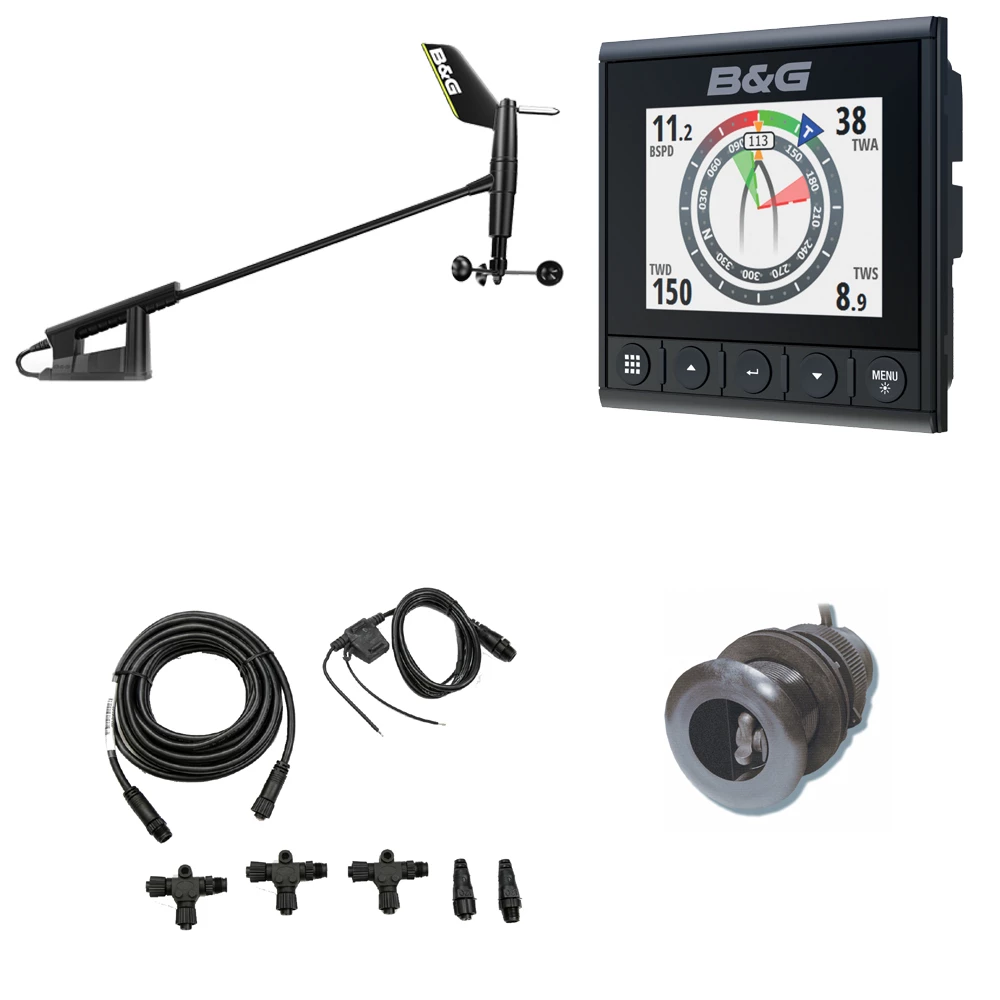

B&G Triton2 Speed, Depth and Wind pack - A pack consisting of the B&G Triton2 display, DST810 speed/depth and temperature triducer, B&G WS310 wind sensor with 20m mast cable and a Micro-C (NMEA2000) backbone kit.

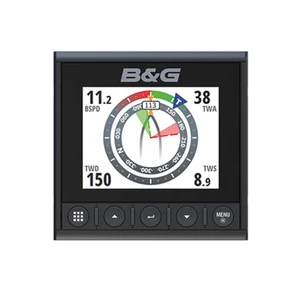

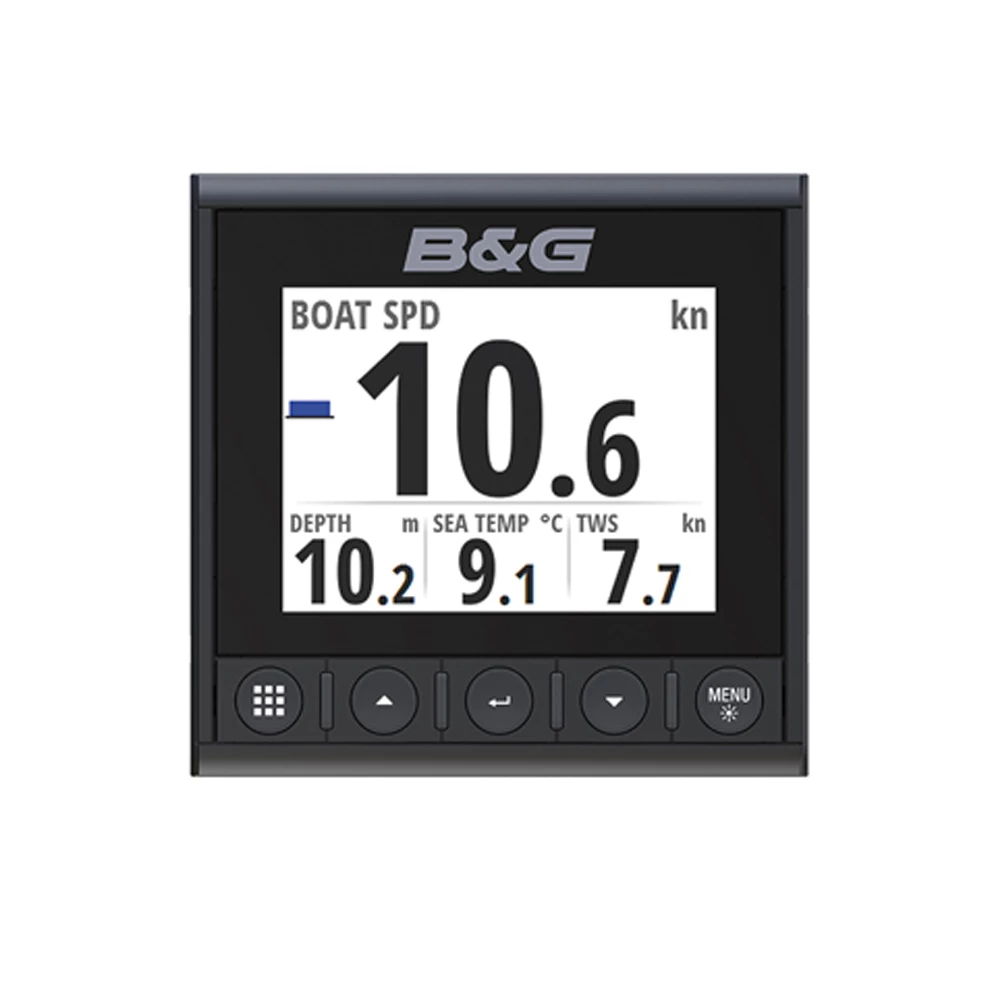

Display
Optically bonded 4.1-inch colour display Transflective LCD technology for optimum sunlight viewing Unique sailing features including SailSteer and WindPlot Display wind, speed, depth, heading, autopilot status and much more Easy to use, easy to install Low power consumption Low Profile Design: Just 8mm thin

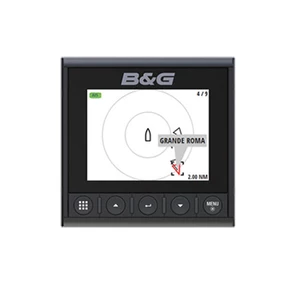

Screen modes: Single, two line, four panel, nine panel, histogram, analogue gauge, highway, AIS
Wind sensor
A new high precision B&G wind sensor, designed for cruising and club racing sailors. An evolution of B&G’s previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors. Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS310 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.
- Wide compatibility – direct NMEA 0183 output or connect via the included interface to a NMEA 2000® network
- WS310 sensor has been subject to combined field tests of over 200,000 hours.
Triducer
A plastic smart thru-hull mount transducer that provides depth, speed and temperature data to a NMEA 2000 network. This 100 W transducer has a depth of 100 ft and operates at a frequency of 235 kHz. This frequency has been selected to eliminate interference with other echo sounders that may be fitted to the boat. The embedded digital signal processor ensures accurate speed from the paddle wheel even a speeds below 5 knots.The transducers skin fitting has a self-closing valve that minimises water flow into the boat when the transducer is removed.
Pack Functions:
Depth and depth history histogram,True wind angle, True wind speed, Apparent wind angle, Apparent wind speed, Timer, Water Temperature, Boat speed, distance
Specifications:
- Display size: 115mm x 118mm
- Power consumption: 133ma at 13.5V
- Display resolution: 320 x 240 pixels
- Triducer cut out diameter: 51mm
- Triducer cable length: 6m
- Triducer max hull deadrise: 22 degrees
- Mast cable length: 20m
- Wind angle accuracy < 1 degree
- Speed accuracy <0.2kt or 5%
In The Box
- Triton 2 Instrument
- Suncover
- WS310 Wind Sensor
- NMEA 2000 Interface
- 20m mast cable
- DST810 Triducer
- NMEA 2000 Backbone kit
- Documentation
