Triton Edge Sailing Processor
Triton Edge Sailing Processor
B&G

Triton Edge Sailing Processor

Catalogue Code: 220700
£1,439.95 In Stock Online
Save £77.04 RRP £1,516.99
See Product Description Check Stock in Store Add to Wish List
  • Get it on Wednesday, 17th July if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
  • Description
  • Availability
  • Delivery & Returns
  • Reviews
Description

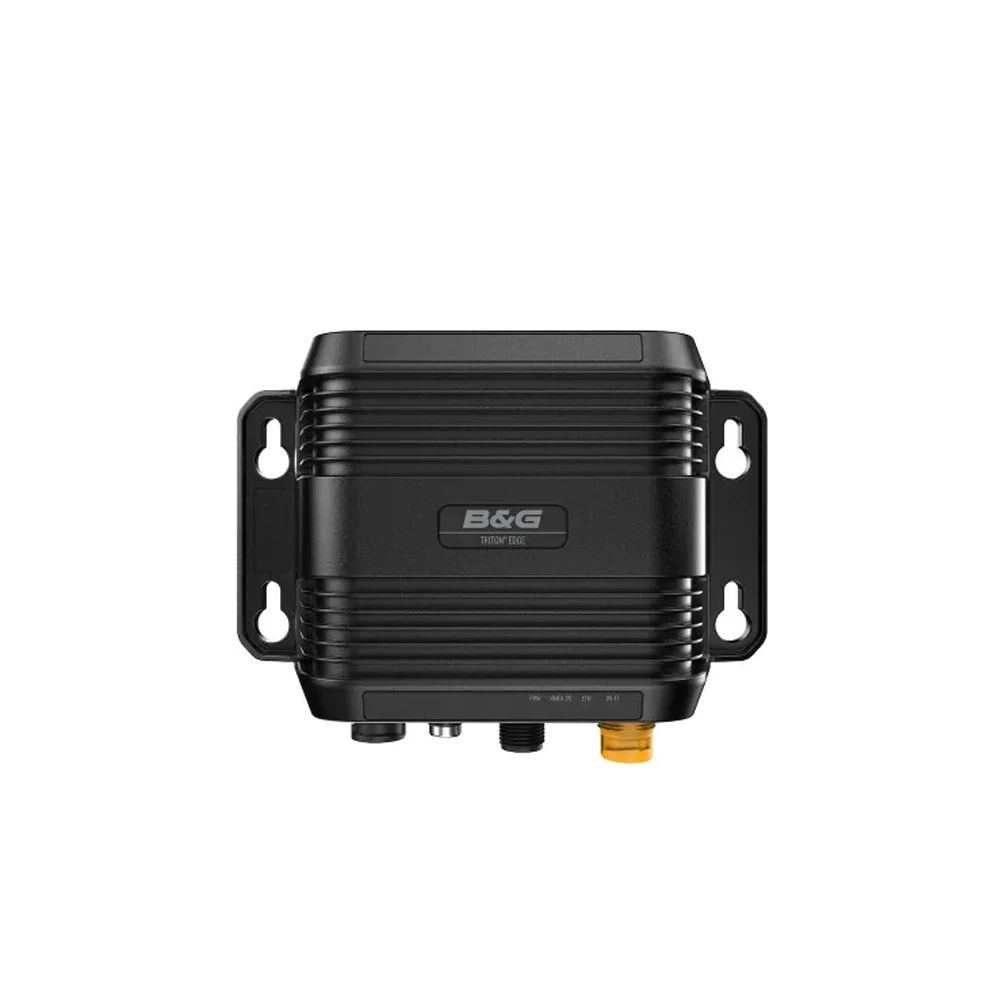

B&G Triton Edge Sailing Processor

Triton Edge Sailing Processor is the brains behind the ultimate cruiser/racer system. Its ultra-fast processors deliver an enhanced suite of accurate sailing data to your B&G Triton and Nemesis Displays, Vulcan or Zeus Chartplotters, information which can also be accessed via webserver and allow you to upload data recordings to the cloud, which can be viewed and replayed in the B&G Companion App.

Adding enhanced sailing data and additional specific sailing features like advanced Start line calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim angle improving the sailing data displayed to the user and guiding the autopilot. Triton Edge also simplifies seemingly complex calibrations through AutoCal calibration routines.

Triton Edge is designed for sailors running a cruising, or dual-purpose cruising/racing, system and provides the sophistication and expanded information you need without over-complication.

Adding a Triton Edge sailing processor has a wealth of advantages, primarily by expanding your sailing data and the accuracy, through improved calibration, but also the management and data sources. Wifi and Ethernet also give you the benefit from expanded integrations options with App, modules and sensors, whilst web-browser based control allows for easy set-up and commissioning, as well as improved accuracy and calibration of your sailing data.

Features

  • Latest Powerful microprocessor provides all core instrument calculations
  • Enhanced feature set for serious cruising yachts
  • B&G App Integration - Data recording and review using the Companion App
  • Integrated webserver provides easy access to system configuration and control
  • Ethernet Interface
  • Industry standard compatible NMEA2000(R) network
  • 12/24V Power

Specifications

  • Recommended Fuse Rating: 3A
  • Supply Voltage  12/24V DC (9.0 - 31V DC)
  • Ethernet: 1 x 100 Mbit
  • NMEA 2000: 1x NMEA 20000 Micro-C port, 1 LEN
  • PC Connectivity: 1x Ethernet (webserver)
  • Operating Temperature Range: −15°C to 55°C
  • Storage Temperature Range: −40°C to 85°C
  • Compass Safe Distance: 300mm
  • Waterproof rating: IPX6 and IPX7
  • Dimensions (W x H x D): 152 x 98 x 53mm
  • Mounting Type: Surface Mount
  • Weight 0.26kg (0.6lbs)

In The Box

  • Triton Edge Processor
  • Power cable
  • NMEA 2000 T Piece
  • NMEA 2000 cable 0.6m
