GT54UHD-TM Transducer
GT54UHD-TM Transducer
Garmin

GT54UHD-TM Transducer

Catalogue Code: 210613
£ 314.95 In Stock
Save £ 35.00 RRP £ 349.95
See Product Description Add to Wish List
  • Order within the next 12 hours 47 minutes for dispatch tomorrow
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Echomap UHD 75sv Chartplotter Fishfinder Combo
Echomap UHD 75sv Chartplotter Fishfinder Combo £749.95 Save £150.04 RRP £899.99
Echomap UHD 95sv Chartplotter Fishfinder Combo
Echomap UHD 95sv Chartplotter Fishfinder Combo £849.95 Save £180.04 RRP £1,029.99
  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description

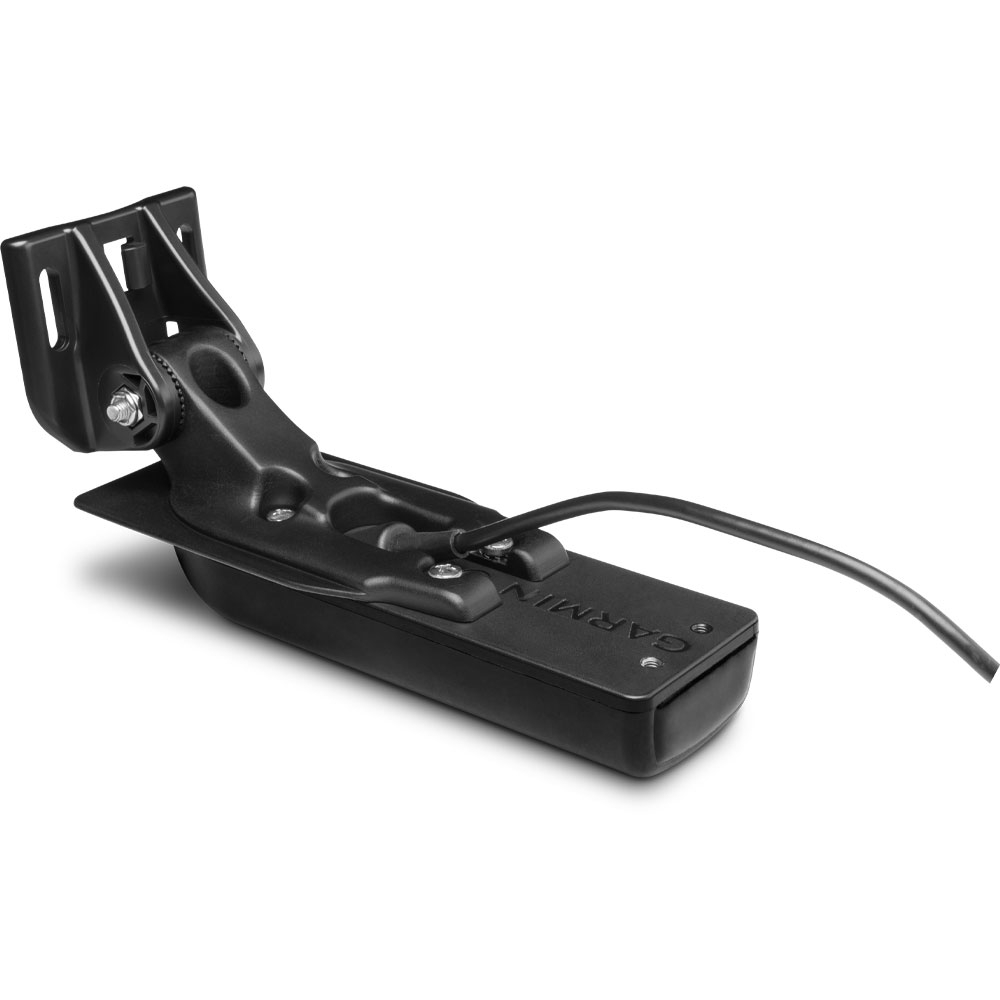

Garmin GT54UHD-TM Transducer

All-in-one transducer



  • One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar

  • High wide CHIRP traditional sonar provides remarkably clear target separation and definition

  • See incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü sonar

  • Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft)

  • Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts


Ultra-high clarity
The GT54 ultra high-definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.


Ultra-high performance
Ultra high-definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft). It's easy to install with included transom and trolling motor mounts so you can start fishing faster.


1 For use with ECHOMAP™ UHD & Ultra and GPSMAP® 8400xsv chartplotter/sonar combos


Specifications



  • Cable length: 20 ft

  • Number of pins on connector: 12

  • Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)

  • Transmit power: CHIRP Traditional 350 W; ClearVü/SideVü 350 W

  • Max Depth: CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125'

  • Beam Width: CHIRP: 24°-16°


    • ClearVü: 0.94°x60° @ 800 kHz

    • SideVü: 1.62°x50°


  • UHD SideVü: 0.441°x52° @ 1200 kHz

  • Read water temperature: Yes


In the Box



  • GT54HW-TM transducer

  • Transom mount

  • Trolling motor mount

  • Mounting hardware

  • Documentation
