GPSMAP 1022 XSV
GPSMAP 1022 XSV
Garmin

GPSMAP 1022 XSV

Catalogue Code: 210475
£1,499.95 Available in selected stores
Save £300.04 RRP £1,799.99
See Product Description Check Stock in Store Add to Wish List
  • Ask a question
Optional Extras Tick to add optional extras to your basket
P79 50 200kHz 8 pin In Hull Transducer
P79 50 200kHz 8 pin In Hull Transducer £194.95 Save £15.04 RRP £209.99
GT51M-TM
GT51M-TM £474.95 Save £65.04 RRP £539.99

View all 16 optional extras

  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description

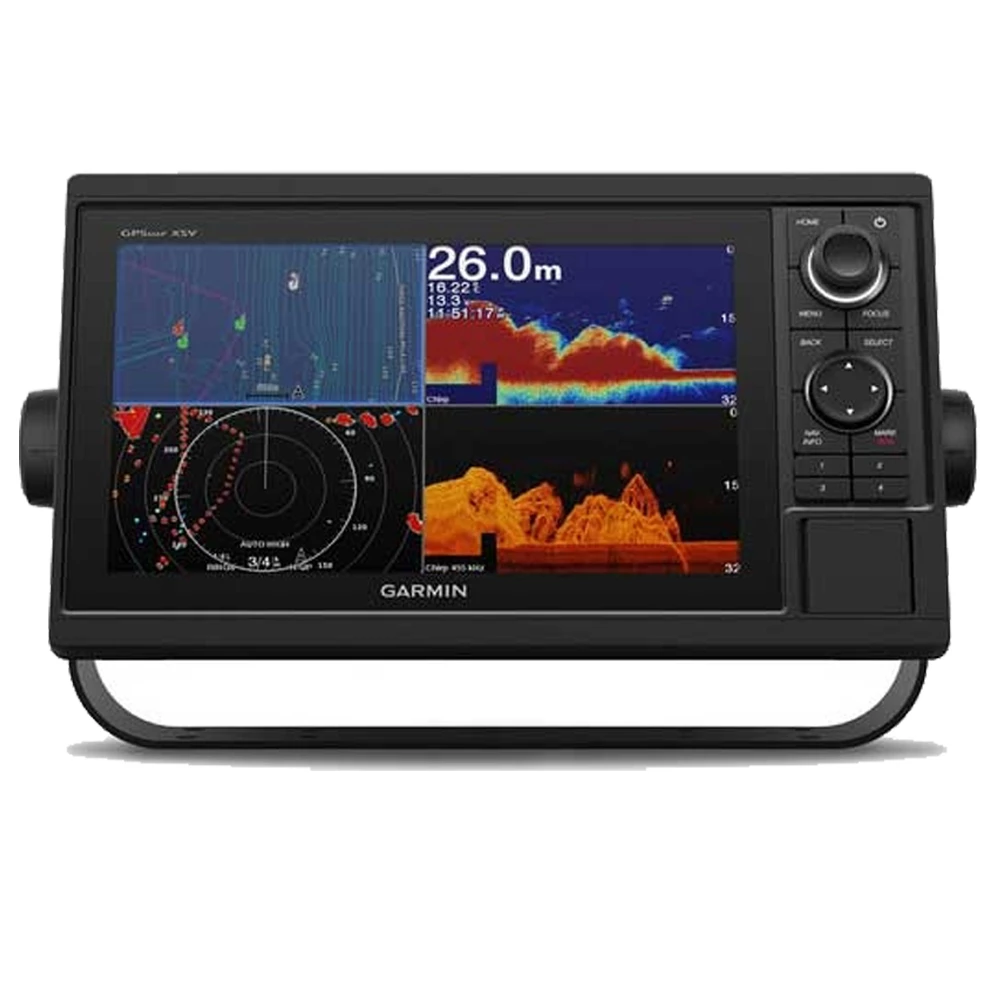

Garmin GPSMAP 1022 XSV

Experience an advanced all-in-one solution with the 10-inch GPSMAP 1022xsv keyed combo. Comes preloaded with support for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

  • 10-inch colour display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately)
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
  • Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
  • Supports AIS (tracks target ships position)
  • Supports DSC (displays position data from DSC-capable VHF radio)
  • Tide tables
  • Supports FUSION-Link™ compatible radios
  • BlueChart® Mobile (planning) compatible
  • Garmin Helm™ compatible
  • Wireless remote compatible



Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar support. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, FUSION-Link, VHF, AIS and other sensors.

Built-in Wi-Fi® and ANT® Connectivity

You also enjoy built-in Wi-Fi and ANT wireless connectivity directly to quatix® marine watches, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB action camera from the chartplotter.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Built-in SailAssist Features

To help you gain a wind-maximising competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronised across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

Specifications

  • Dimensions: 31.8 x 18.5 x 6.9 cm
  • Display size, WxH: 22.4 x 12.5 cm (10" diag)
  • Display resolution, WxH: 1024 x 600 pixels
  • Weight: 1.85 kg
  • Antenna: Internal or external over NMEA 2000
  • NMEA 2000® & NMEA 0183 compatible
  • Video input ports:1 BNC
  • Typical current draw at 12 Vdc: 1.9 A
  • Mounting options: Bail or flush
  • Garmin Marine Network™ ports:2
  • 2 microSD™ cards
  • Waypoints 5,000: Routes100
  • Track log 50,000 points; 50 saved tracks
  • Sonar transmit power: 1Kw

In The Box

  • GPSMAP 1022xsv chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
