Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo
Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo Echomap Plus 45cv Chartplotter Fishfinder Combo
Garmin

Echomap Plus 45cv Chartplotter Fishfinder Combo

Catalogue Code: 210489
£ 299.95 In Stock
Save £ 60.04 RRP £ 359.99
See Product Description Add to Wish List
  • Order within the next 14 hours 34 minutes for dispatch tomorrow
  • Ask a question
Optional Extras Tick to add optional extras to your basket

View all 10 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
Description

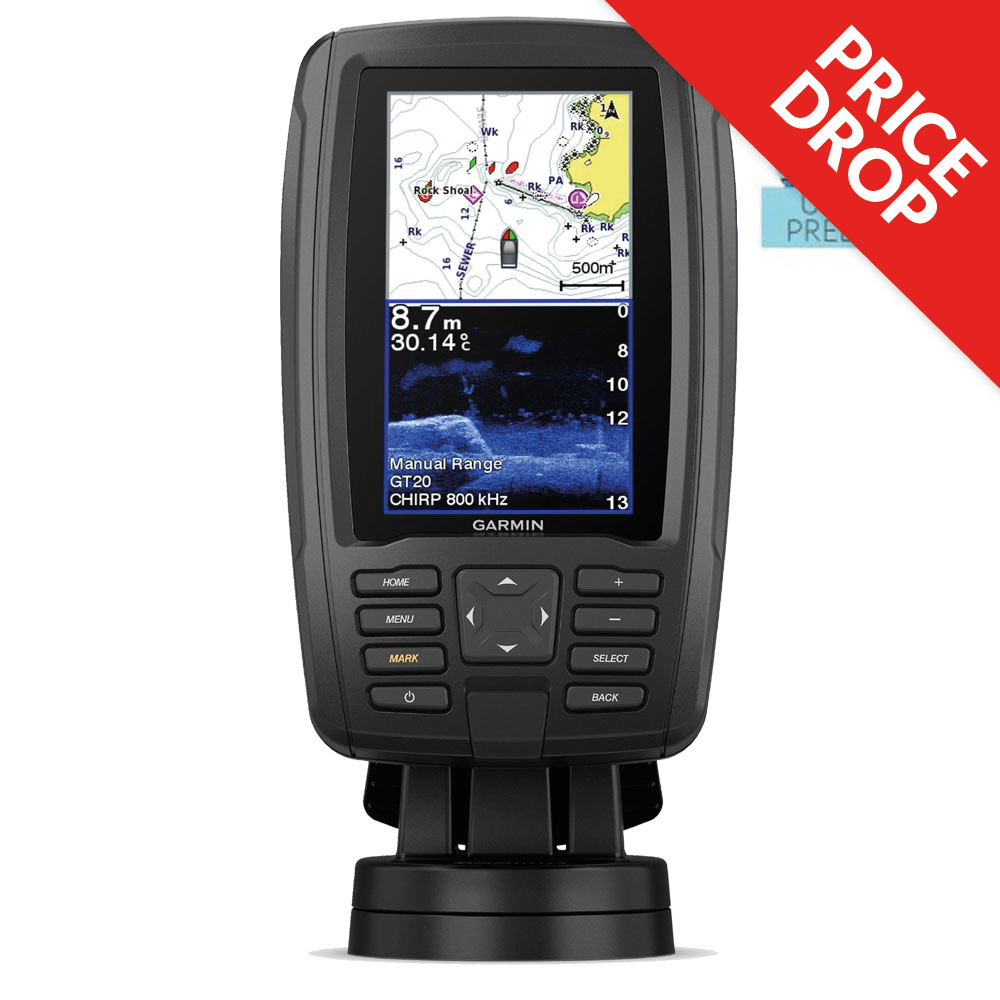

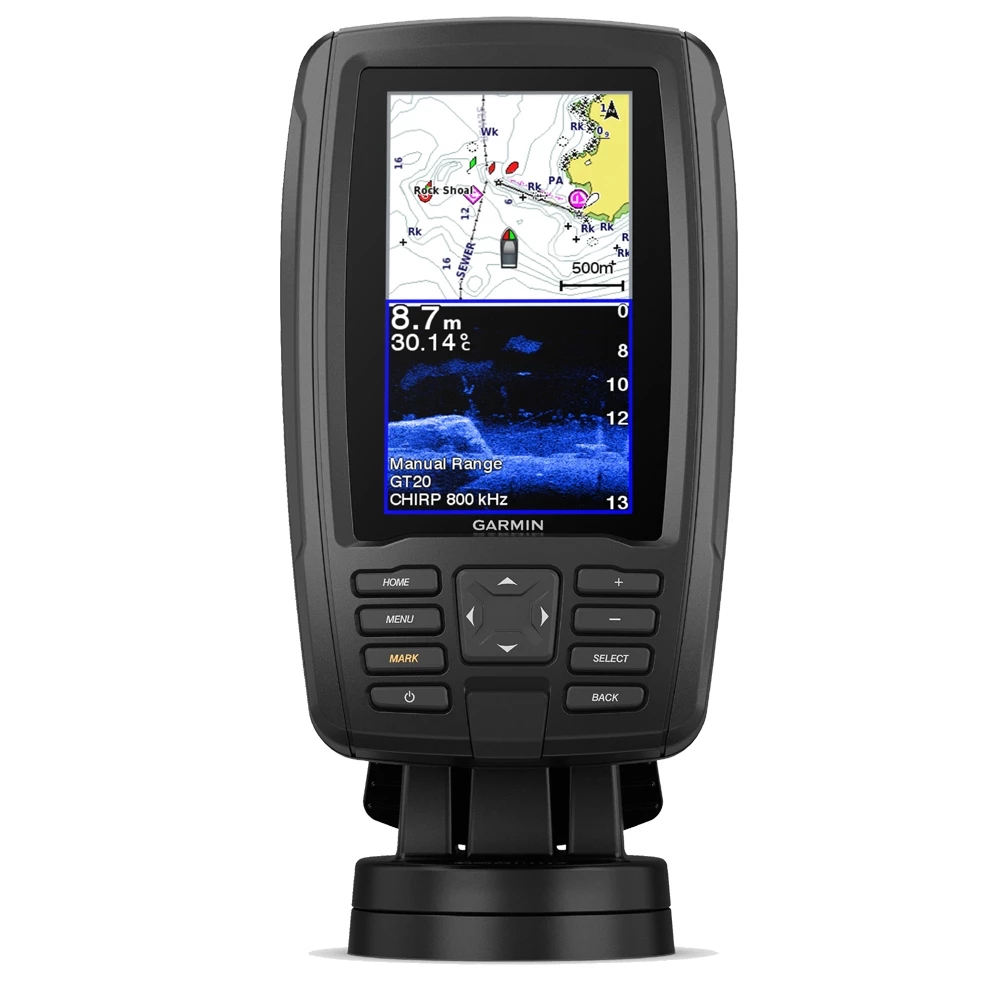

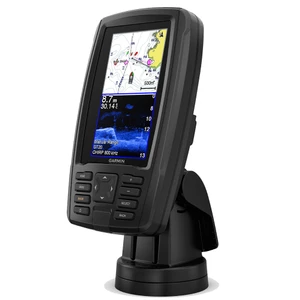

Garmin Echomap Plus 45cv Chartplotter Fishfinder Combo

The Plus second generation of the Echomap 45cv features a new large icon based menu system that is even simpler to use then the original. This compact combination unit offers all the funtions that you will need for a small boat or Kaya and it is.easy to install and easy to use. It also features a quick-release mount allowing you to quickly remove your device from power and mount.



Bright, sunlight-readable 4.3 inch combo

Built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVü™ scanning sonar (transducer sold separately)

Preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast

Built-in Garmin Quickdraw™ Contours mapping software instantly creates personalized fishing maps on-screen with 1 foot contours as you fish

Share waypoints and routes with other ECHOMAP™ or STRIKER™ units

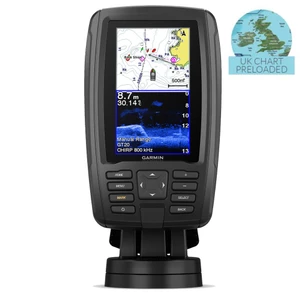

Preloaded BlueChart g3 charts

Preloaded with highly detailed Garmin BlueChart g3 mapping covering the British Isles in their entirety, including the Thames Estuary, Caledonian Canal, Outer Hebrides, Shetland and Orkney Islands, Isle of Wight, Isle of Man, Lough Neagh, The Shannon river (up to Lough Kee) and the Irish Sea. Continental coverage from Brest, FR to Kiel, DE including the Channel Islands, the Waddenzee, the IJsselmeer, the canals of The Netherlands, the Meuse River to Liege, BE; the Rhine River to Dusseldorf, DE and the Kiel Canal.*



CHIRP Sonar

The built-in sonar capabilities of ECHOMAP Plus 45cv include CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar

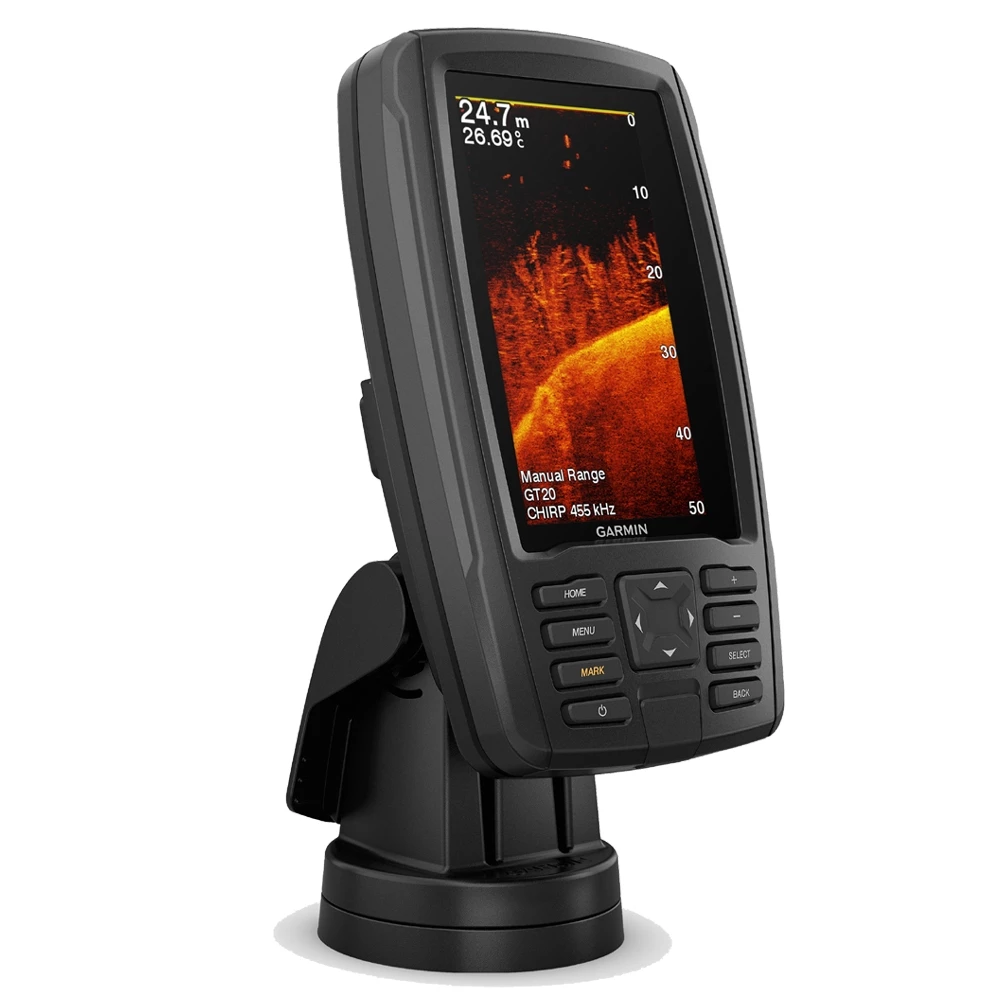

Clear scanning sonar images

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. You clearly see structure, submerged objects and fish.



Quickdraw Contours to create your own maps

Instantly create personalised fishing maps on-screen with 1 foot contours, then tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.



Specifications




  • GPS Antenna: Internal 5Hz

  • Waypoints: 5,000

  • Routes: 100

  • Supports AIS (tracks target ships position)

  • Supports DSC (displays position data from DSC-capable VHF radio)

  • NMEA 0183 in/out ports:1

  • Sonar transmit power: 500 W (RMS)

  • Maximum depth:2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater

  • Bottom lock (shows return from the bottom up)

  • Water temperature log and graph

  • Sonar recording

  • Sonar history rewind

  • Physical dimensions: 4.0" x 8.0" x 3.1" (10.2 x 20.4 x 0.4 cm)

  • Weight:1.6 lbs (0.7 kg)

  • Water rating: IPX7

  • Display size: 2.1" x 3.7"; 4.3" diagonal (5.4 x 9.5 cm; 10.5 cm diagonal)

  • Display resolution: 480 x 272 pixels

  • Power consumption: 5W

  • Mounting options:Bail or flush



In the Box




  • ECHOMAP Plus 45cv with BlueChart g3 for UK, Ireland and Northwest mainland Europe coast

  • Power/data cable

  • 4-pin sounder to 8-pin transducer adapter cable

  • Tilt/swivel mount with quick release cradle

  • Documentation



* Preloaded g3 charts do not feature Auto Guidance

Availability
Stock Availability

Due to Covid-19, our store staff are working a reduced rota. As such we won't be offering our ship to store service until our stores are back to full capacity.

This item is currently only available to buy online.

Size Guide

Men's Size Guide

  To Fit Height To Fit Chest
X SMALL 5'2" - 5'4" 34 - 36"
SMALL 5'5" - 5'7" 36 - 38"
MEDIUM 5'7" - 5'10" 38 - 40"
LARGE 5'11" - 6'1" 41 - 43"
X LARGE 6'1" - 6'3" 44 - 46"
X LARGE 6'3" - 6'5" 46 - 48"



Shoe Sizes

UK EURO MENS US LADIES US
3.5 36   5.5
4 37   6
4.5 37.5   6.5
5 38 5.5 7
5.5 38.5 6 7.5
6 39.5 6.5 8
6.5 40 7 8.5
7 40.5 7.5 9
7.5 41.5 8 9.5
8 42 8.5 10
8.5 42.5 9
9 43 9.5
9.5 44 10
10 44.5 10.5
10.5 45 11
11 45.5 11.5
11.5 46.5 12
12 47 12.5
12.5 47.5 13
13 48 13.5
14 50 14.5
Delivery & Returns
Delivery

Due to curent events Force 4 Mail order are running as normal, but due to staff shortages we have turned off Next Day Delivery



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

UK Standard Delivery

  • UK Mainland 0 - 1Kg (small jiffy) £3.95 Royal Mail Service 3- 5 working days
  • UK Mainland 1 - 25Kg £5.95 Courier service with signature 3- 5 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature
  • Northern Ireland, Highlands & Islands 0 - 1Kg (small jiffy) £3.95 Royal Mail Service 3- 5 working days
  • Northern Ireland, Highlands & Islands 1 - 20Kg £9.95 Courier service with signature 3- 5 working days
  • Northern Ireland, Highlands & Islands 20Kg+ Price on request
  • Channel Islands 0 - 1Kg (small jiffy) £5.95 Royal Mail Service 3- 5 working days
  • Channel Islands 1 - 20Kg £13.50 Courier service with signature 3- 5 working days
  • Channel Islands 20Kg+ Price on request ​

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £15.00
  • UK Mainland; Flares £20.00
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on returns@force4.co.uk. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers

I’m looking to purchase garmin echimap DV for my Rib please advise exactly what is in the box and the extras needed to make it work correctly

Shaun Tordoff-Gibson

Good afternoon,
The box contents are as follows:

  • ECHOMAP Plus 45cv with BlueChart for UK, Ireland and Northwest mainland Europe coast
  • Power/data cable
  • 4-pin sounder to 8-pin transducer adapter cable
  • Tilt/swivel mount with quick release cradle
  • Documentation

all you would need in order to get it up and running would be a 12v power source and a transducer. Any transducer listed on the optional extras on the right hand side of the website will be compatable
09/07/19

I am looking at the garmin echomap plus 45cv. Do i need to buy a transducer seperately or does it come with one? Roy
