Lowrance ActiveTarget 2 Live Sonar System

Lowrance Cashback Promotion 2024 - Up £500 Savings

Catching fish is easier when you can see them interacting with structure and responding to your lure – in real time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar. Quickly recognize if your lure presentation is working or if you need to make an adjustment to get fish to strike – information that is harder to get from traditional sonar or structure imaging.

It’s easy. Drop your lure on a fish and watch the catch unfold in real time – from the fish striking your lure to reeling the fish to the surface – you'll see it all in incredible detail.

Get the best picture

See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget® 2 Live Sonar. Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live action views of fish and structure, even in rough conditions.

See the smoothest picture

Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 shows you exactly what’s going on under the surface as a live action feed. Enhancements to the beams broadcast from the ActiveTarget® 2 system make it possible to show more detailed images further from the boat than ever before.

See all around the boat

Track fish and your lure presentation with high-resolution views in front, below and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.

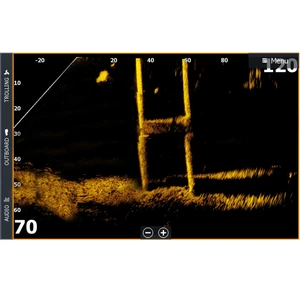

Forward View

See clearer structure and fish in front of your boat, so you can perfectly target your next cast.

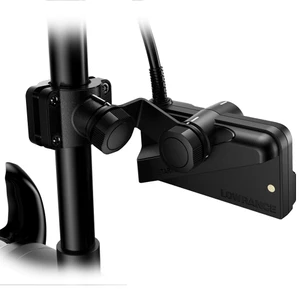

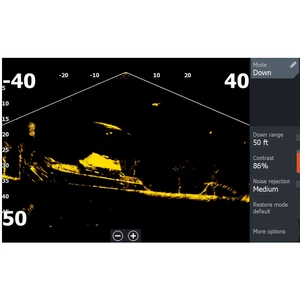

Down View

Know the depth and see beneath your boat in greater detail, so you can drop your lure right on the fish.

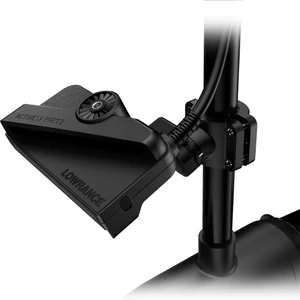

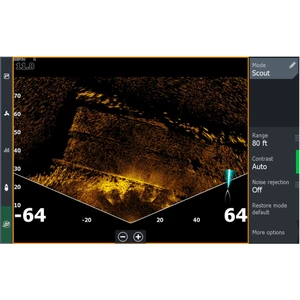

Scout View

See a live over-head, wide view in front of your boat to spot bait balls ad big schools of fish up ahead.

See More Simultaneously

Target fish better than ever on HDS® Pro, watching multiple ActiveTarget 2 views at the same time, with a second optional ActiveTarget® 2 System. Monitor multiple views at the same time – from Forward, Down and Scout modes – and enable additional 180 and Scout Wide* views for more effective fish and bait tracking ahead of the boat. *requires additional Scout Wide Bracket

• High-resolution, live action images clearly reveal what’s happening underwater in real time
• Clearest live action views of fish and structure
• Smoothest underwater images for quicker interpretation
• See all around your boat with Forward, Down and Scout views
• See multiple views simultaneously with HDS Pro, and enable 180 and Scout Wide* views for more effective bait tracking ahead of boat with second optional ActiveTarget® 2 transducer
• Compatible with HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS

*requires additional Scout Wide Bracket

Specifications

• Supply voltage: 10.8 - 31.2 Vdc
• Recommended fuse rating: 3A
• Power consumption typical: 1.5A @13.8 Vdc
• Waterproofing: IP67
• Sonar unit dimensions (mm): 219.3 x 192.1 x 72.9
• Transducer (mm): 149.8 x 82.4 x 58
• Interface: Ethernet

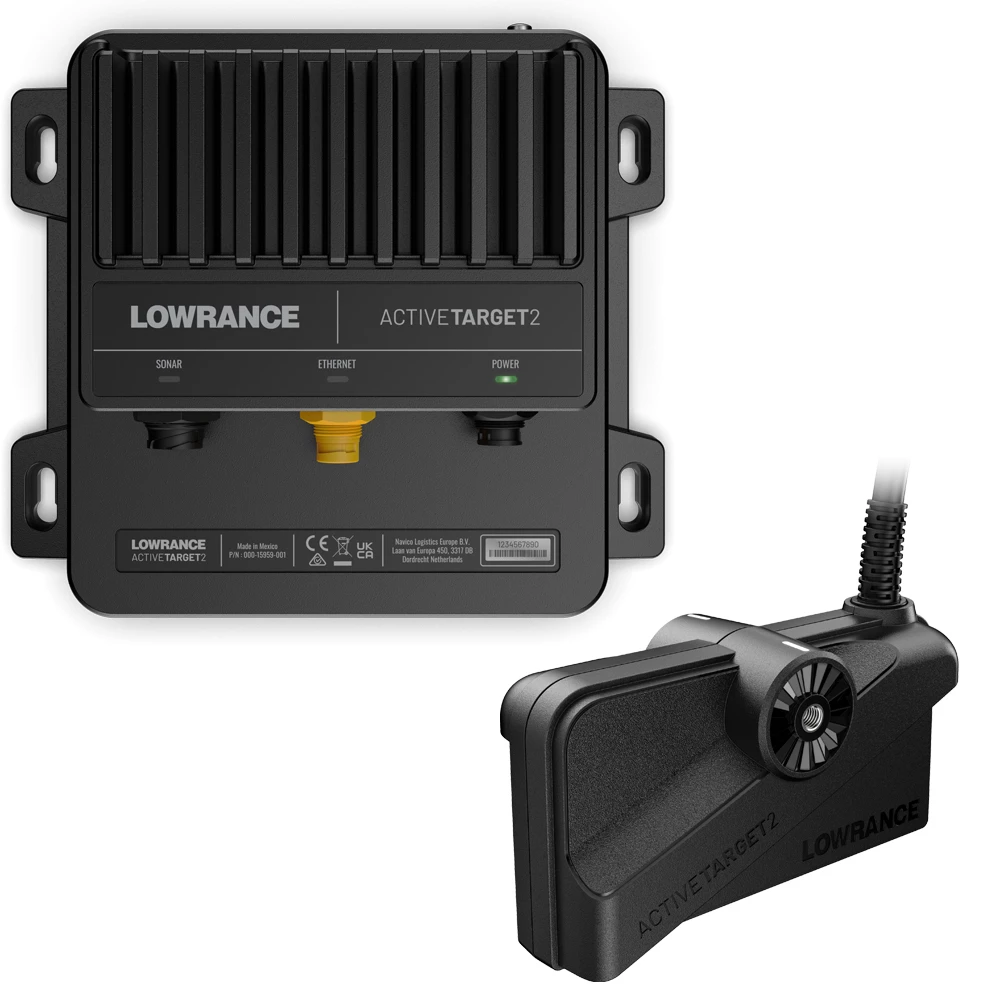

In The Box

• Active Target 2 Sonar Box
• Transducer with 25ft cable
• 15ft Ethernet cable
• Power cable
• Documentation
