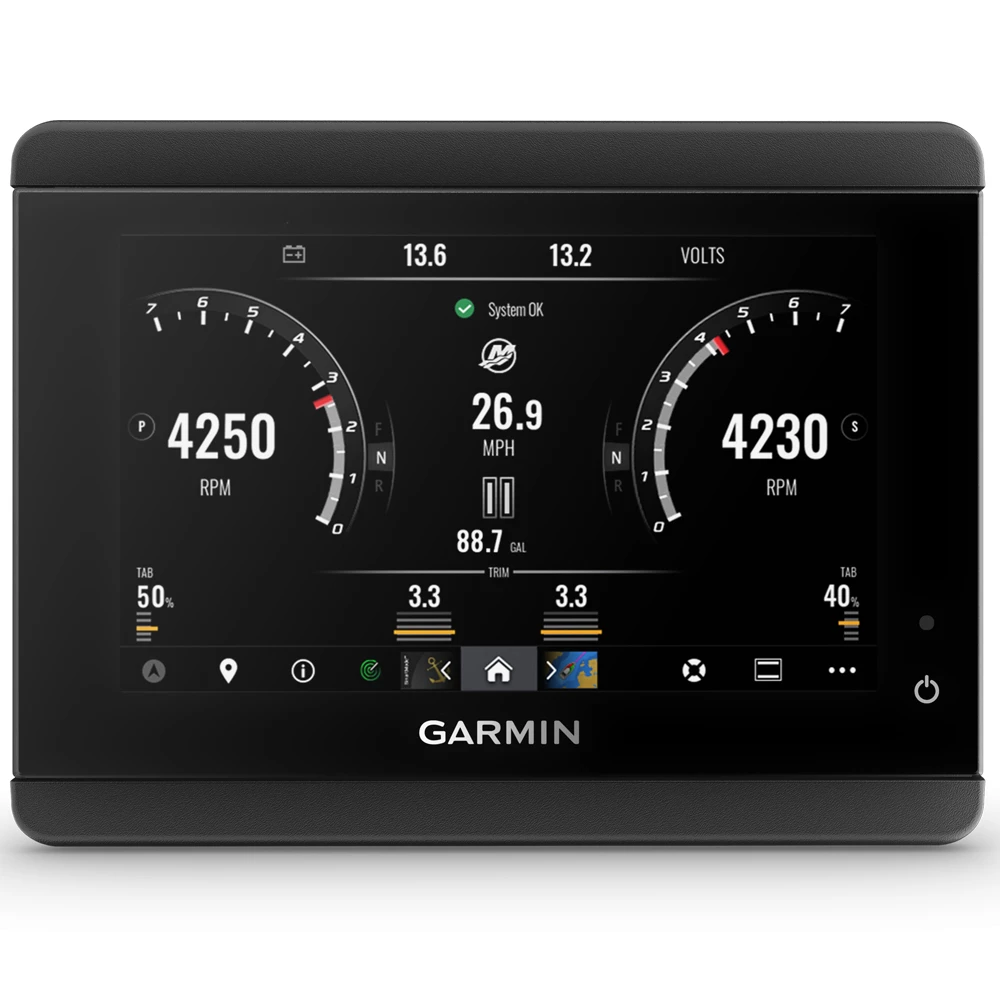

Garmin TD 50 5" Touchscreen Display

ADD MORE ACCESS TO YOUR BOAT SYSTEMS’ MONITORING AND CONTROL

The TD 50 touchscreen display with 5" edge-to-edge glass offers supplementary control, switching and instrumentation for your onboard marine systems.

The unit is compatible with the NMEA 2000® network and Garmin Marine Network, and it supports EmpirBus™ components and OneHelm™ digital switching installations. This allows you to view and control engine and vessel data and adjust settings for lights, air conditioning, refrigeration, entertainment systems, security sensors, autopilots or any other information on the network.

The unit’s sleek design and minimal footprint offer easy mounting and convenient access from virtually any location on the boat.

TD 50 5" Touchscreen Display Features

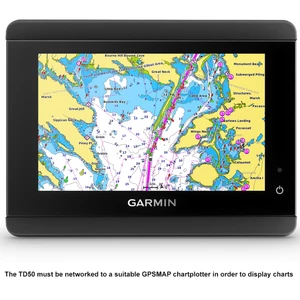

• Display your Chart when networked to a compatible Garmin Chartplotter.
• Supplemental touchscreen display offers control and monitoring of boat systems connected through the NMEA 2000® network or Garmin Marine Network — with support for EmpirBus™ components and OneHelm™ digital switching installations
• Integrates easily with many Garmin, Fusion® and EmpirBus™ marine products
• Sleek 5” edge-to-edge glass design matches the look of GPSMAP® series chartplotters from Garmin

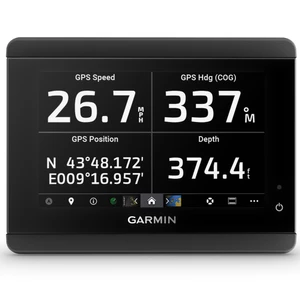

• Monitor engine and vessel systems data; control multiple switching functions for electrical components throughout your boat
• Minimal footprint and flat- or flush-mounting options enable installation in a variety of onboard locations

CONTROL AT YOUR FINGERTIPS

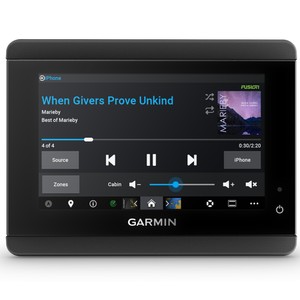

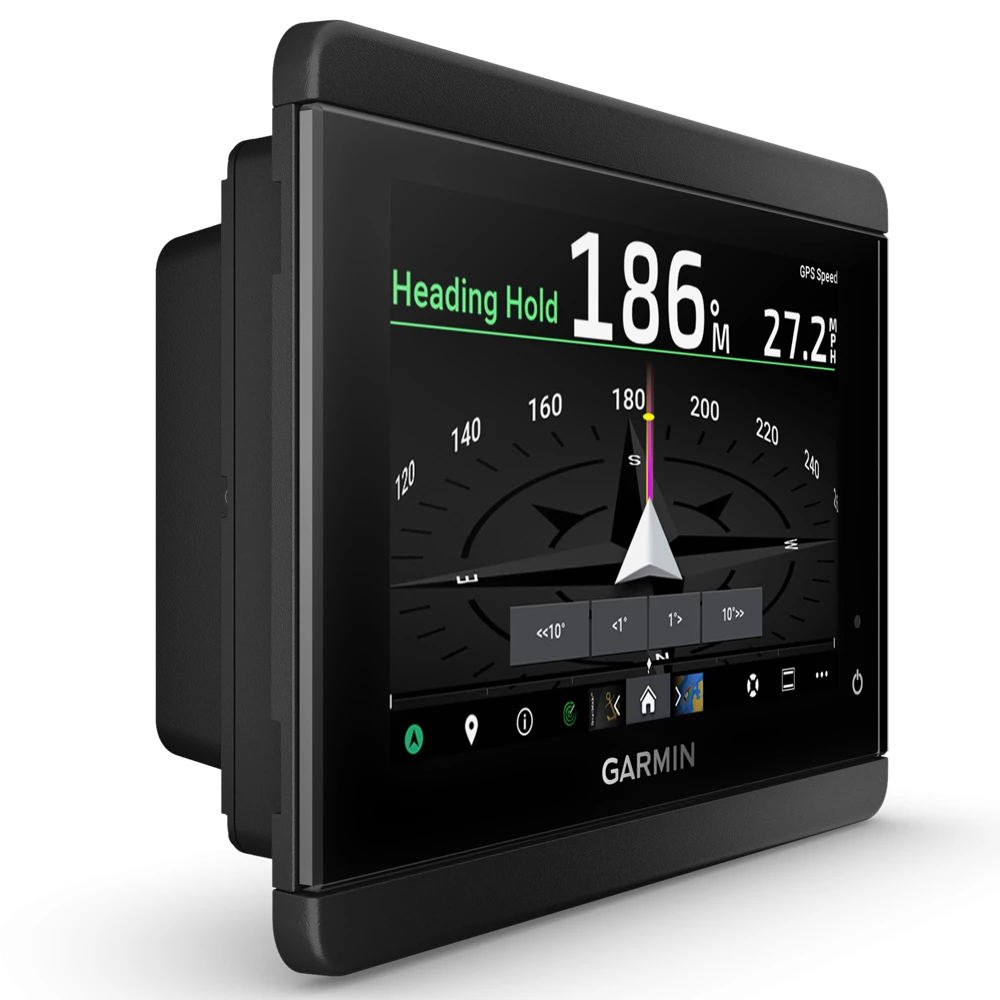

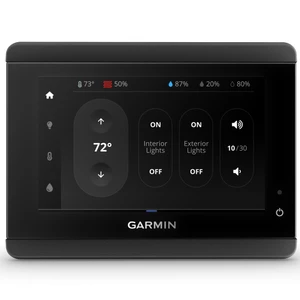

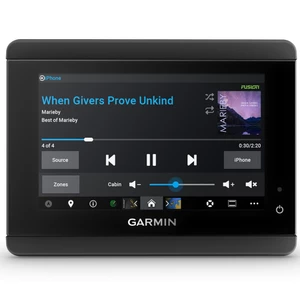

Wherever you need some extra system access on board, the 5″ TD 50 touchscreen fits the need. View engine and systems data, or adjust settings for lights, climate control, entertainment, security sensors, autopilots and more.

SCALABLE TECHNOLOGY

The easy-to-use and easy-to-install TD 50 touchscreen can work as an extra display at the helm station or for below-deck networked access to switching functions and data monitoring throughout your vessel.

EASY SYSTEM INTEGRATION

For integrated digital control on board, the TD 50 touchscreen display is compatible with NMEA 2000, third-party OneHelm™ systems, EmpirBus and the Garmin Marine Network. System connectivity couldn't be simpler.

INTUITIVE INTERFACE

Touchscreen control through an easy graphical interface lets you access multiple switching and monitoring functions for electrical components throughout your boat.

VERSATILE MOUNTING OPTIONS

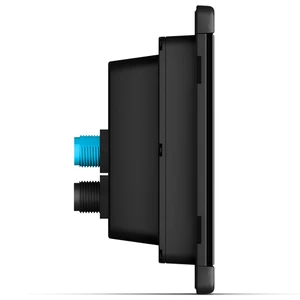

The TD 50 unit’s slimline design, minimal footprint and flat- or flush-mounting options enable installation in virtually any onboard location where auxiliary system access is needed.

RUGGED, DURABLE DESIGN

Water-rated to IPX7 standards, the TD 50 touchscreen is built for harsh marine environments. The bright LCD screen offers crisp, clear daylight visibility, adjustable backlighting and a wide viewing angle for excellent readability wherever it’s used on board.

TD 50 5" Touchscreen Display Specifications

• Dimensions without sun cover (HxWxD): 10.5 x 14.0 x 5.1 cm (4.1" x 4.5" x 2.0")
• Dimensions with sun cover (HxWxD): 11.3 x 14.4 x 5.6 cm (4.5" x 5.7" x 2.2")
• Weight without sun cover: 328 g (11.6 oz)
• Weight with sun cover: 375 g (13.2 oz)
• Temperature range: From -15° to 55° C (from 5° to 131° F)
• Compass-safe distance: 20 cm (7.9")
• Cable construction: Fully-gasketed polycarbonate
• Lens material: Glass with anti-glare and anti-fingerprint finish
• Water rating: IPX7
• Brightness: 1200 cd/m2 (NIT)
• Power Usage: 5.9 W max
• NMEA 2000® input voltage: 9 to 16 Vdc
• NMEA 2000 LEN @ 9 Vdc: 13 (650 mA)

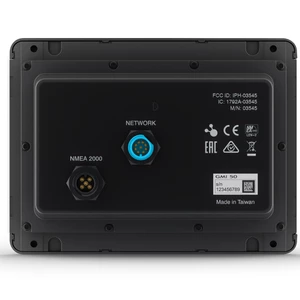

• Connections: NMEA 2000, Garmin Marine Network

In The Box

• TD50 Display
• Mounting Hardware
• Documentation
• Cut Out Template
