Garmin Reactor 40 Mechanical/Retrofit/Solenoid Autopilot Corepack With GHC 50 Autopilot Instrument

Designed for powerboats and sailboats, this core pack is compatible with a wide range of steering systems and drives.

With its solid-state 9-axis Attitude Heading Reference System (AHRS), the GHP Reactor™ autopilot series holds your course even when your boat is pitching and rolling in rough water. Offers flexible installation options and requires a minimum amount of commissioning and calibration. The result is that everyone on board enjoys a comfortable ride while heading error, course deviation, rudder movement and power consumption are minimised.

COREPACK COMPATIBILITY
This corepack works with direct or cable-actuated steering systems to support heading hold, wind hold, step turns and tack/jibe modes.

SOLID-STATE 9-AXIS AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimises heading error and more.

REACTS TO WATER CONDITIONS
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

THREE CLASS DRIVES
Choose between class A, class B compact or class B drive units for your steering system (sold separately). All Garmin linear drives include built-in rudder feedback sensing.

WIRELESS REMOTE CAPABILITIES
Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

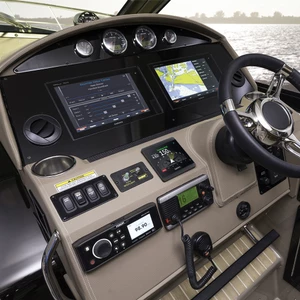

POWERBOAT AND SAILING FEATURES

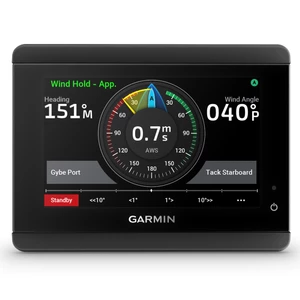

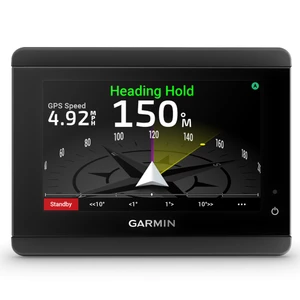

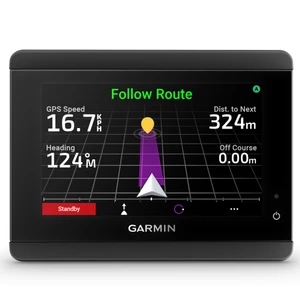

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.

GHC 50 BUNDLE
Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

GHC50

• Unit dimensions: WxHxD: 10.9 cm x 11.2 cm x 4.8 cm
• Display resolution: WxH: 320 x 240 pixels
• Display type: QVGA colour LCD display
• NMEA output: NMEA 2000
• Supply voltage: 10V to 20V

Reactor 40 CCU

• Dimensions (L × W × H) 170 × 90 × 50 mm
• Weight 200 g (7 oz.)
• Temperature range From -15° to 70°C (from 5° to 158°F)
• Material Fully gasketed, high-impact plastic
• Water rating IEC 60529 IPX7
• CCU cable length 5 m
• NMEA 2000 input voltage From 9 to 16 Vdc
• NMEA 2000 LEN 4 (200 mA)

ECU

• Dimensions (W × H × D) 168 × 117 × 51 mm (6.6 × 4.6 × 2 in.)
• Weight 680 g (24 oz.)
• Temperature range From -15° to 60°C (from 5° to 140°F)
• Material Fully gasketed, high-impact aluminium alloy
• Water rating IEC 60529 IPX71
• Power cable length 2.7 m (9 ft.)
• Input voltage From 11.5 to 30 Vdc
• Fuse 40 A, blade-type
• Main power usage 1 A (not including the pump)

Buzzer

• Dimensions (L×diameter) 23 × 25 mm
• Weight 2.4 oz. (68 g)
• Temperature range From 5°F to 140°F (from -15°C to 60°C)
• Cable length 10 ft. (3.0 m)

In The Box

• Reactor 40 CCU (Course Computer Unit)
• GHC™ 50 helm control display
• NMEA 2000® drop cables (2 metres)
• NMEA 2000 T-connectors
• Buzzer
• Male and female terminators
• Interconnect cable
• ECU (Electronic control unit)
• ECU (Electronic Control Unit) power cable
• Documentation
