b&g Vulcan 9FS Multi-function Display

Spring Offer – Purchase a C-Map Max N+ Local, Wide or Continental Chart with this unit and get a further £200 off the combined package price. Simply add the plotter and chart to your basket and the discount will be automatically applied at checkout.


DOWN IN PRICE RRP £1204.99 WAS £999.95 NOW £899.95 - SAVE AN EXTRA £100 - WHILE STOCKS LAST

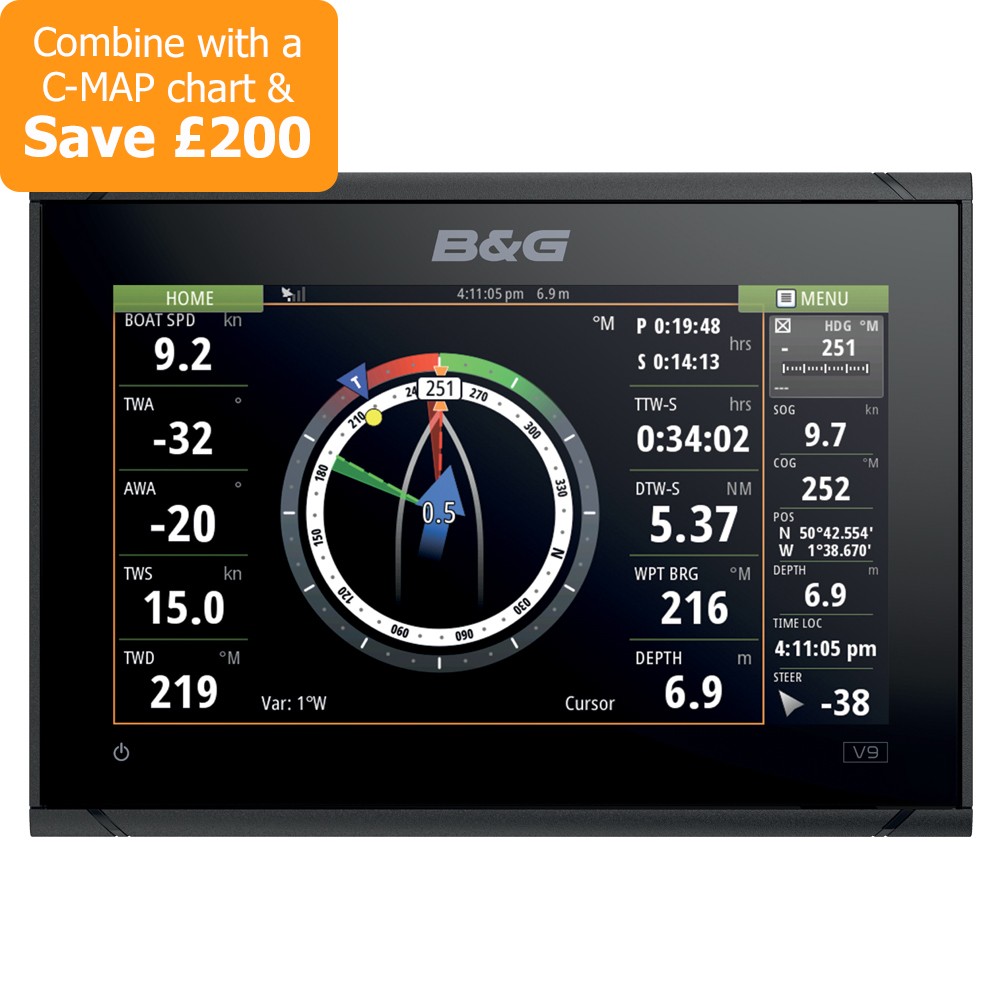

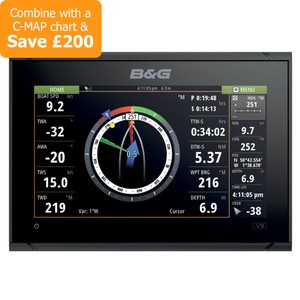

B&G Vulcan 9 FS: 9' Multifunction display. Super high-bright multi touch screen with built in NMEA 2000, GPS, Wi-Fi and ForwardScan (optional transducer required) . Integrates to 3G / 4G radar.



The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.












  • Easy to use multi-touch user interface

  • Glass dash styling

  • Super bright widescreen display

  • Radar integration

  • Built in Wi-Fi connectivity

  • Built in 10 Hz, high sensitivity GPS antenna

  • Dual Micro SD card slots

  • Built in echosounder (Broadband & Chirp)

  • Built in ForwardScan sonar

  • Operates with ZC1 and ZC2 Remote controller

  • Advanced NMEA2000 networking

  • BEP C-Zone Integration

  • Fusion Link and sonicHub2 Audio Support

  • AIS SARTs

  • NMEA Data Logging

  • GRIB Weather support

  • H5000 system integration

  • SailSteer, Laylines with Sailing Time, WindPlot

  • Adjustable page split ratios and panel layouts

  • Best in Class Cartography support







Dedicated Sail & Cruise Features

With B&G's award-winning SailSteer™ function, you can see all of your key sailing data at a glance. View data together on one handy dedicated screen, or overlaid on charts for the modern sailor's ultimate navigational view. With the addition of sailing instruments and sensors via industry-standard NMEA 2000® networking, SailSteer evolves to show Boat Speed, Wind data, Heading, Tide, Wind Shift Sectors and even Laylines – enhancing the detail on SailSteer and chart screens. It's easy to add waypoints or plot a course; with B&G SailingTime you'll see waypoint arrival times based on realistic sailing course and tidal effects, rather than a straight-line calculation.



Secondary autopilot controller

When connected to a B&G Pilot system, the Vulcan 9 acts as a secondary autopilot controller providing Intelligent Sail Steering, manual and auto steering functions, and Smart Manoeuvre functionality combined with intuitive menus for ultimate control.



Instrument Display

Integrate the Vulcan 9 with your onboard instruments to use the screen as a large, highly-visible instrument display. Create and customise single, dual and 4-way data page layouts.

Choice of Charts

Choose from C-MAP™, Navionics®, NV Digital™ or Insight charting options to make the most of your routing and planning.



Integrated Wi-Fi

Vulcan 9 features built in Wi-Fi allowing you to connect to the internet, via a marina or smartphone hotspot, and access the GoFree™ Shop where you can download charts and software updates direct to your display. You can also mirror the screen of your Vulcan 9 on a compatible smartphone or tablet, allowing you to view and control (tablet only) your chartplotter from virtually anywhere on your boat. This makes the Vulcan 9 an incredibly cost effective dual-station solution for smaller boats.



Smart NMEA 2000 networking

Easily and seamlessly connect essential kit for cruising and sailing such as sailing instruments, the B&G SonicHub marine audio server, ZG100 external GPS antenna, and DSC VHF Marine Radio. Vulcan 9 gathers data as you sail, ready when you need it.



Broadband Radar™

Add B&G Broadband 3G™ or 4G™ Radar to keep watch as you sail, with the ability to identify and track targets from 36 nautical miles away (4G) to right off the bow. Cruise safely through crowded harbours, avoid obstacles in poor visibility, and keep an eye on distant storm cells all from your Vulcan 9 display.



ForwardScan™

Add an optional ForwardScan™ transducer to see what lies ahead under the water with approaching depth information. Explore poorly-charted or unfamiliar waters confidently with a clear image of the bottom ahead of your boat.



 Specifications




  • Display Size: 9 inch Widescreen

  • Display Resolution (pixels): 800 x 480

  • GPS: Built in 10Hz

  • Operating Temperature: -15 to +55 Deg C

  • Waterproof Standard: IPX7

  • Dimensions (mm): 243W x 83D x171H

  • Weight: 1.32 kg

  • Power consumption: 12W @13.8V

  • Power Supply: 12V DC

  • Ports: NMEA2000, Radar, Sonar



In the Box




  • Vulcan 9 FS

  • Bezel

  • Gimbal Mounting Bracket

  • Dash Mounting Kit

  • 2m Power Cable

  • Suncover

  • Documentation
