Vulcan 9 & 3G
Vulcan 9 & 3G
b&g

Vulcan 9 & 3G

Catalogue Code: 220431
£ 2,149.95 In Stock
Save £ 466.04 RRP £ 2,615.99
See Product Description Add to Wish List
  • Order within the next 2 days 1 hour 34 mins for dispatch today
  • Ask a question
Optional Extras Tick to add optional extras to your basket
LMM-1 self levelling radar mount
LMM-1 self levelling radar mount £779.95 Save £126.05 RRP £906.00
SC101 Radar Pole Mount
SC101 Radar Pole Mount £769.95 Save £113.25 RRP £883.20

View all 10 optional extras

  • Description
  • Videos
  • Availability
  • Size Guide
  • Delivery & Returns
Description

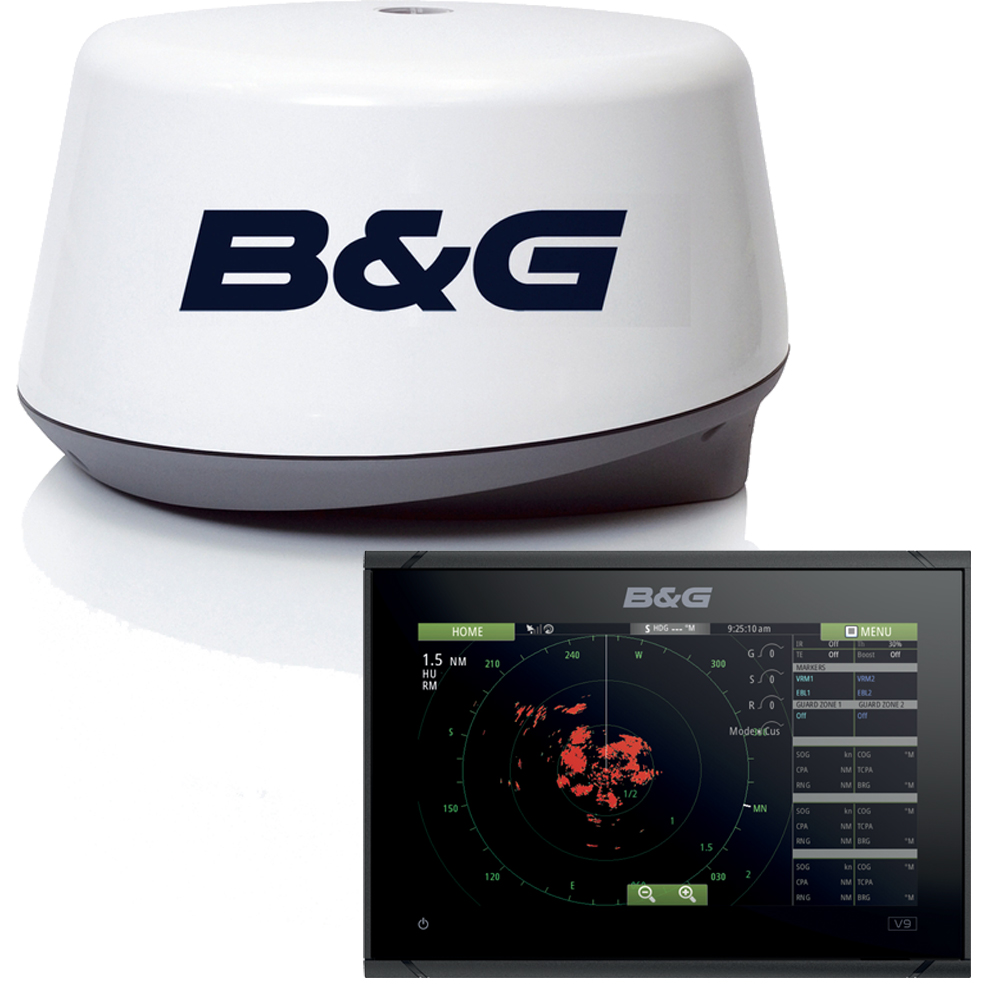

b&g Vulcan 9 & 3G

B&G Vulcan 9 FS: 9 INCH Multifunction display with 3G radar bundle. Super high-bright multi touch screen with built in NMEA 2000, GPS, Wi-Fi and ForwardScan (optional transducer required) .

The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.

The B&G 3G broadband radar offers superior target definition and unparalleled close range performance using FMCW (Frequency modulated continuous wave) technology.
Broadband radar differs to conventional pulsed radar by having separate transmit and receive antennae and almost continuously transmits (at a lower power than pulsed radar) and receives. Traditional pulsed radar uses one antenna to both transmit and receive; the radar transmits a high power short pulse, then switches off the transmitter to listen for the return pulse.




Features



  • Easy to use multi-touch user interface
  • Glass dash styling
  • Radar integration
  • Built in Wi-Fi connectivity
  • Built in 10 Hz, high sensitivity GPS antenna
  • Dual Micro SD card slots
  • Built in echosounder (Broadband & Chirp - transducer not included)
  • Built in ForwardScan sonar (transducer not included)
  • Advanced NMEA2000 networking
  • GRIB Weather support
  • H5000 system integration
  • SailSteer, Laylines with Sailing Time, WindPlot
  • Compatible with Navionics+, Navionics Platinum+ & C-map Max-N, Max-N+
  • No blind spot as associated with pulse radar transmit/receive switching
  • Superior target separation
  • Unrivalled short range performance with a 1/32nm range
  • No magnetron 2 minute warm up. Instant on in less than 16 seconds.
  • Emission safe - with less harmful x-band radiation than traditional pulse radar.
  • Low power consumption
  • MARPA Target Tracking: Track up to 10 targets. Requires a heading sensor.*
  • Radar/Chart Overlay: Merges radar with cartography in a detail-rich display.*
  • High-Speed Mode: Select 36 RPM for almost instant updating at less than 2 nm.
  • Dual Guard Zones: Protect yourself from more angles.

Specifications

Vulcan

  • Display Size: 9 inch Widescreen
  • Display Resolution (pixels): 800 x 480
  • GPS: Built in 10Hz
  • Operating Temperature: -15 to +55 Deg C
  • Waterproof Standard: IPX7
  • Dimensions (mm): 243W x 83D x171H
  • Weight: 1.32 kg
  • Power consumption: 12W @13.8V
  • Power Supply: 12V DC
  • Ports: NMEA2000, Radar, Sonar

Radar

  • Range 28nm
  • Mounting Bolts 4x30xM8 - 304 stainless steel
  • Waterproof Standard IPX6
  • Height: 280 mm \ 11 in
  • Diameter: 488 mm \ 19.2 in
  • Weight: 7.4 kg \ 16.31 lbs.
  • Humidity: +35°C (95°F) 95% RH
  • Operating Temperature -25° to +55°C (-13° to +130°F)
  • Power Supply: 9V to 31.2Vdc (12/24 Volt systems) Reverse polarity protection vDC
  • Power Consumption: 18W (Typ.) @ 13.8Vdc
  • Power Consumption Standby 2W (Typ.) @ 13.8Vdc – only 150ma

 In the Box

  • Vulcan 9 FS
  • Bezel
  • Gimbal Mounting Bracket
  • Dash Mounting Kit
  • 2m Power Cable
  • Suncover
  • B&G 3G radar
  • 20m Radar interconnection (9mm diameter) cable
  • RI10 interface box
  • 6ft ethernet cable
  • Documentation
