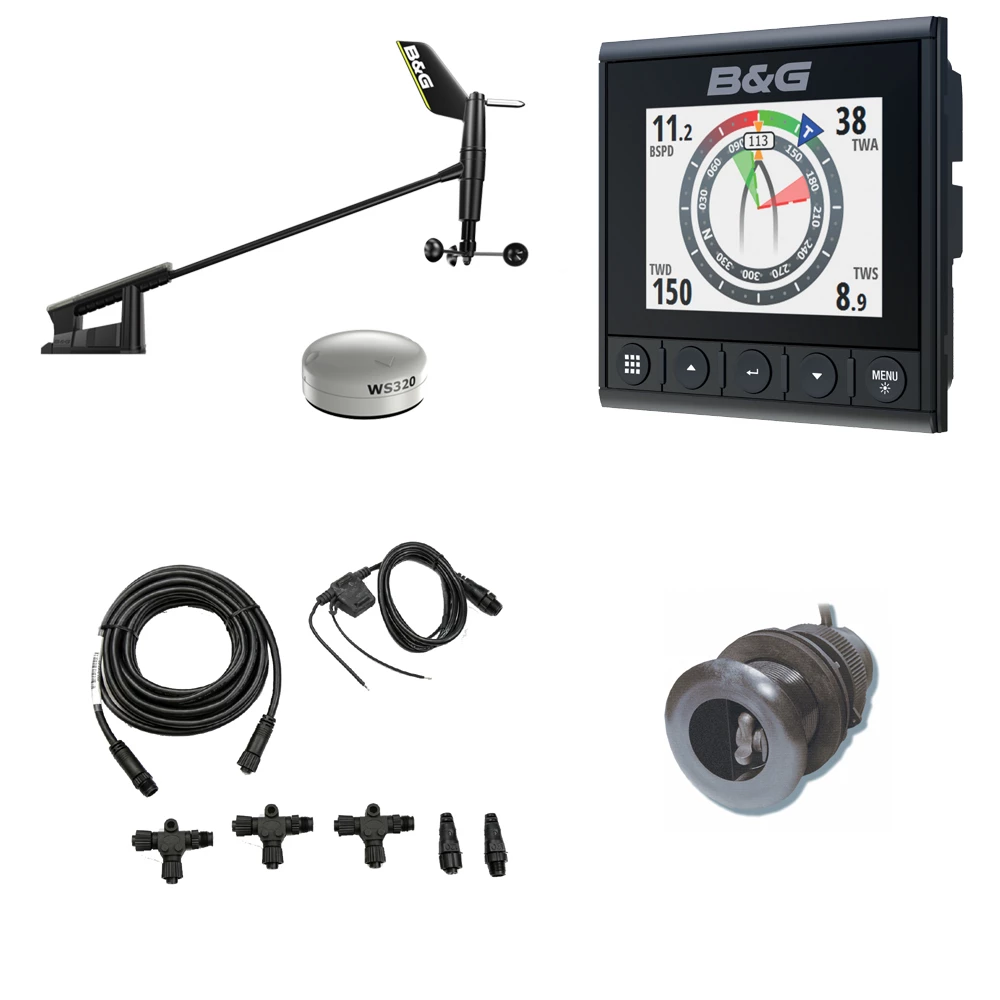

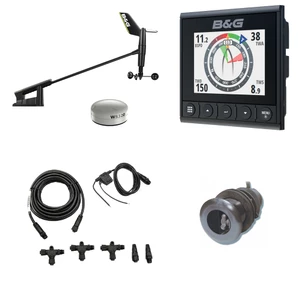

B&G Triton2 Wireless Wind Speed Depth Pack

B&G Triton2 Speed, Depth and Wind pack - A pack consisting of the B&G Triton2 display, DST810 speed/depth and temperature triducer, B&G 320 wireless wind sensor with wireless interface and a Micro-C (NMEA2000) backbone kit.

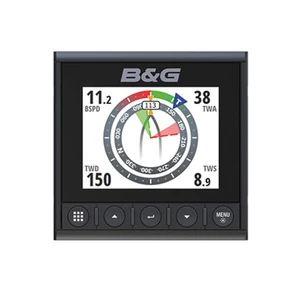

Display



Optically bonded 4.1-inch colour display Transflective LCD technology for optimum sunlight viewing Unique sailing features including SailSteer and WindPlot Display wind, speed, depth, heading, autopilot status and much more Easy to use, easy to install Low power consumption Low Profile Design: Just 8mm thin

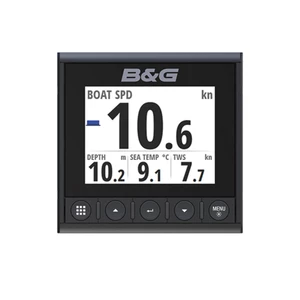

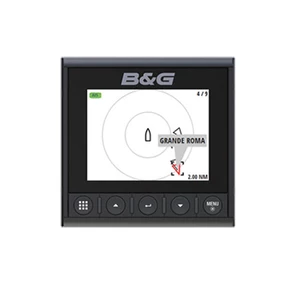

Screen modes: Single, two line, four panel, nine panel, histogram, analogue gauge, highway, AIS

Wind sensor

A wireless high precision wind sensor suitable for masts up to 25m, designed for cruising and club racing sailors. Designed to provide highly accurate wind data in all conditions at all points of sail and heel. The WS320 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.

  • Easy Installation - no mast cables
  • Solar powered wind sensor
  • Low power consumption <100mA @ 12VDC
  • Outputting wind at a super smooth 5 times per second.
  • NMEA 2000 connection from wireless interface

Triducer

A plastic smart thru-hull mount transducer that provides depth, speed and temperature data to a NMEA 2000 network. This 100 W transducer has a depth of 100 ft and operates at a frequency of 235 kHz. This frequency has been selected to eliminate interference with other echo sounders that may be fitted to the boat. The embedded digital signal processor ensures accurate speed from the paddle wheel even a speeds below 5 knots.The transducers skin fitting has a self-closing valve that minimises water flow into the boat when the transducer is removed.

Pack Functions:

Depth and depth history histogram,True wind angle, True wind speed, Apparent wind angle, Apparent wind speed, Timer, Water Temperature, Boat speed, distance

Specifications:

  • Display size: 115mm x 118mm
  • Power consumption: 133ma at 13.5V
  • Display resolution: 320 x 240 pixels
  • Triducer cut out diameter: 51mm
  • Triducer cable length: 6m
  • Triducer max hull deadrise: 22 degrees
  • Wind sensor wireless range: <=30m (98 ft)
  • Wind angle accuracy < 1 degree
  • Speed accuracy <0.2kt or 5%

In The Box

  • Triton 2 Instrument
  • Suncover
  • WS320 Wireless Wind Sensor
  • WS320 Wireless Interface
  • DST810 Triducer
  • NMEA 2000 Backbone kit
  • Documentation
Videos
Videos
Availability
Stock Availability

Stock can move quickly, so this is just a suggestion of current levels, please phone the shop to confirm.

The ship to store service is based on Head Office sending stock to a branch.

If you wish to call & collect stock, please do so over the phone using the number provided.

Store Availability Telephone
Cardiff Not currently in stock 02920 220929
Chichester Not currently in stock 01243 773788
Deacons 02380 402182
Lymington Not currently in stock 01590 673698
Plymouth Not currently in stock 01752 548301
Poole Not currently in stock 01202 723311
Port Hamble 02380 454858
Southampton Not currently in stock 02380 632 725
Gloucestershire (Distribution Hub) 0345 130 0710

- Good Availability

- Low Availability

- One item left

Delivery & Returns
Delivery

Royal Mail Service Update: Please be aware when choosing Royal Mail as your preferred delivery method, your delivery time may be impacted by ongoing strikes and may take up to 20 working days. If your order is time critical we suggest choosing a courier or Next Day Service



Our Mail Order team ship chandlery, yacht parts and sailing clothing around the world. We use the best value couriers available, and we will endeavour to get your products to you as quickly and as cost effectively as possible.

International Orders: Due to delays we have had to suspend our international delivery options.

UK Standard Delivery

  • UK Mainland 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 7-10 working days for orders under £50.00
  • UK Mainland up to 25Kg £5.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • UK Mainland 25Kg+ Price on request
  • UK Mainland Next Day 0 - 25Kg £9.95 Courier service with signature, orders must be placed before midday
  • Northern Ireland, Highlands & Islands 0 - 2Kg (small jiffy) £3.95 Royal Mail Service. Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Northern Ireland, Highlands & Islands 1 - 25Kg £10.95 Courier service with signature. Despatch within 3- 5 working days, delivery in 7-10 working days
  • Northern Ireland, Highlands & Islands 25Kg+ Price on request
  • Channel Islands 0 - 2Kg (small jiffy) £5.95 Royal Mail Service Despatch within 3- 5 working days, delivery in 5-7 working days for orders under £50.00
  • Channel Islands 1 - 25Kg £13.50 Courier service with signature. Despatch within 3- 5 working days, delivery in 5-7 working days
  • Channel Islands 25Kg+ Price on request

UK Exceptional Delivery

  • UK Mainland; Antifoul & paints £5.95
  • UK Mainland; Inflatable dinghy £10.00
  • UK Mainland; Liferafts £17.50
  • UK Mainland; Flares £49.95
  • Northern Ireland, Highlands & Islands; Antifoul & paints £9.95
  • Northern Ireland, Highlands & Islands; Inflatable dinghy price on request
  • Northern Ireland, Highlands & Islands; Liferafts price on request
  • Northern Ireland, Highlands & Islands; Flares not available to ship at this time
  • Channel Islands; Antifoul & paints £13.50
  • Channel Islands; Inflatable dinghy price on request Channel Islands; Flares not available to ship at this time

For further delivery information click here.

Returns

Standard Returns

If you are not entirely happy with your purchase, we will exchange or refund your goods in full, provided that the items are returned within 14 days of receipt.*

Please check the condition of goods on arrival - we are unable to accept goods damaged during shipping after 14 days.

Returned goods must be packaged securely, with all original packaging undamaged and in a saleable condition i.e. shoe boxes must be in the same condition as when received.

Goods must be unused and security seals intact.*

If you would like to return goods because they were ordered incorrectly or if clothing does not fit, return postage will be at your expense. If you would like us to replace the goods with another size or colour, we will charge carriage on the replacement.

Please be aware that some navigational and safety products may be dated, and as such a full refund may in some cases not be possible. If you are purchasing dated navigational charts we suggest you contact us for more information.

Faulty Goods

If you receive your goods and believe them to be faulty, please contact us straight away with a brief description of the problem. If we require you to return the product for a replacement, we will send you a pre-paid Royal Mail label for delivery back to us. Unfortuantely we cannot send the courier back to collect the items.

Returning goods to Force 4 is easy!

  1. Please contact us by ringing 0345 1300 710 or email on [email protected]. This way we'll be able to determine whether you would like to return the product for a refund or whether you'd like to exchange the product. We are unable to process the return of faulty goods that we're not expecting.
  2. We'll then give you a returns number. This returns number will need to be clearly marked on the outside of your parcel so it can be identified on arrival. Please note, failure to mark a returns reference number on the outside of your parcel may result in a delay in processing your return.
  3. Don't forget your proof of postage, just in case!
  4. Once we receive the item we'll be able to proceed with a refund or an exchange.

*this excludes faulty goods with manufacturers defects. If goods are found to be faulty during use, after the returns period, please just give us a ring on 0345 1300 710 and we'll be happy to help.

Questions & Answers
Questions & Answers
I already purchased the wireless anenometer and now want to add a wireless speed/depth transducer along with another triron 2 display, I dont see an option to purchase the wireless transducer seperately Antoinette Wilkins
Sadly the Transducer which links to the Triton 2 system is not wireless. Please look at the DST810 transducer which is connected via NMEA2000. https://www.force4.co.uk/item/bandg/DST810-Plastic-235KHz-NMEA-2000-Triducer/29UX Sadly the Transducer which links to the Triton 2 system is not wireless. Please look at the DST810 transducer which is connected via NMEA2000. https://www.force4.co.uk/item/bandg/DST810-Plastic-235KHz-NMEA-2000-Triducer/29UX

B&G Triton² wireless wind speed depth pack 1. Does this come with a transducer blanking plug? 2. Does the wireless wind interface have to be positioned near the deck in order to receive signals from the wireless wind instrument? 3. How long is the cable that comes with the Triton² display? 4. Am I right in believing the DST810 transducer comes with a 6m cable? 5. Is the backbone kit 4.5m long?

Peter Fowler
1)No it doesn't come with a blanking plug, but these can be found here: https://www.force4.co.uk/item/Airmar/DST800-Triducer-Blanking-Plug/VU1 2)It is recommended to fix this above deck, as it guarantees the strongest signal 3) Th Triton 2 comes with a N2KEXT-2RD 2ft Network Extension Cable 4) DST 810 Cable length: 6m 5) 1 x 4.55m (15ft) NMEA 2000 cable for backbone extension or drop cable to connect an additional network device 1)No it doesn't come with a blanking plug, but these can be found here: https://www.force4.co.uk/item/Airmar/DST800-Triducer-Blanking-Plug/VU1 2)It is recommended to fix this above deck, as it guarantees the strongest signal 3) Th Triton 2 comes with a N2KEXT-2RD 2ft Network Extension Cable 4) DST 810 Cable length: 6m 5) 1 x 4.55m (15ft) NMEA 2000 cable for backbone extension or drop cable to connect an additional network device
