Element 7 HV with HV-100 Transducer
Element 7 HV with HV-100 Transducer
Element 7 HV with HV-100 Transducer
Element 7 HV with HV-100 Transducer Element 7 HV with HV-100 Transducer Element 7 HV with HV-100 Transducer
Raymarine

Element 7 HV with HV-100 Transducer

Catalogue Code: 210548
£ 579.95 Available in selected stores
Save £ 215.00 RRP £ 794.95
See Product Description Add to Wish List
  • Order will be dispatched within 5 working days
  • Ask a question
Optional Extras Tick to add optional extras to your basket
Mini Kayak T Track Mount
Mini Kayak T Track Mount £19.95 Save £2.79 RRP £22.74

View all 12 optional extras

  • Description
  • Videos
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
Description

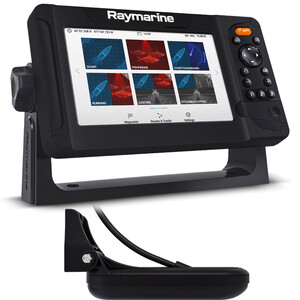

Raymarine Element 7 HV with HV-100 Transducer

Raymarine’s small & medium sized fishing boat solution that offers superior sonar technology and unrivaled quad-core processing speed. Ideal for single station boat owners who want the performance, but don’t have the need for a fully-fledged multifunctional navigation system. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.


Features

Simple LightHouse Sport Operating System - Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.

Intuitive Controls - An oversized waypoint key for marking your favorite spots and three user-programmable keys.

Make Your Own Maps Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support.

  • Rugged, high-visibility sunlight viewable 7” display with built-in GPS/GNSS receiver
  • Multi-channel 1.2 megahertz HyperVision sonar provides super high-resolution imaging up to 125’ while 350kHz DownVision delivers photo-like imaging up to 600’ and SideVision out to 300’
  • Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
  • Take 3D sonar to the next level with HyperVision mode for unprecedented 3D resolution and positional awareness
  • New compact HV-100, all-in-one transom transducer, combines Hyper, Down, Side, RealVision 3D and conventional CHIRP sonar channels into one simple installation
  • Plentiful memory for waypoints, routes and tracks
  • NMEA2000 for AIS, VHF & Engine connection
  • Compatible with Navionics+ & C-MAP 4D MAX+

Turn Up the Resolution with HyperVision™

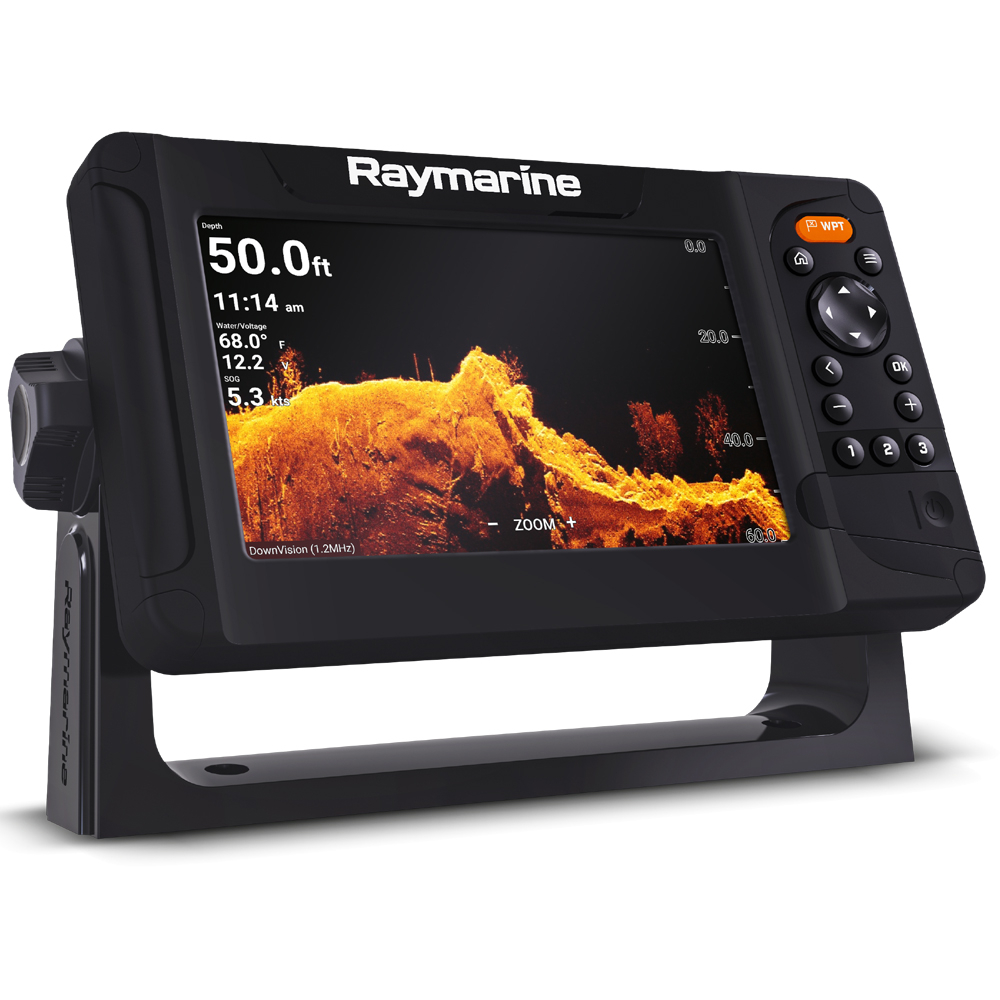

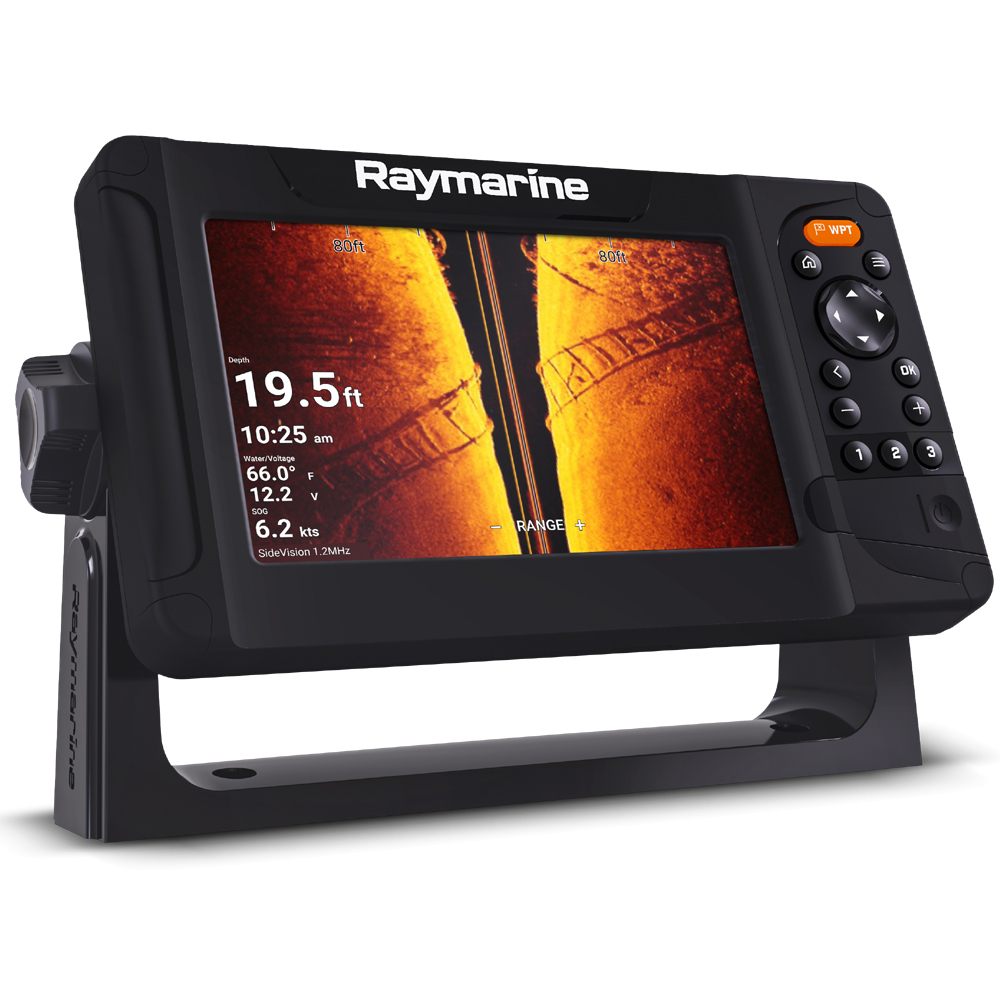

  • HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
  • 1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
  • Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
  • Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

Specifications

  • Display size: 7.0" Optically Bonded LCD
  • Display resolution: 800 x 480 WVGA
  • Display type: Non- Touch
  • Display brightness:1,500 nits
  • Viewing angle: Top 50° / Bottom 60° / Left 70° / Right 70°
  • Overall dimensions: 240 x 135  x 62mm (9.5 x 5.3 x 2.4 inches)
  • Water Ingress Protection: IPx6 and IPx7
  • Product Weight: 1.4Kg
  • Supply voltage: 12V DC (8V to 16V DC)
  • Sonar Depth: CHIRP Sonar = 274m (900 feet)
    • DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
    • SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
    • RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
  • Built-in GNSS Receiver: GPS/GLONASS
  • NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
  • Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization). OUTPUT: GPS (for VHF Distress and DSC)
  • Wi-Fi: WiFi - 802.11 b / g / n
  • BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5

In The Box

  • Element 7HV
  • Trunnion bracket with mounting hardware
  • Surface mount kit with mounting hardware
  • Sun cover
  • 1.5m Power/NMEA2000 cable
  • Documentation pack
  • HV-100 Transducer with 6m cable
  • Transom bracket with mounting hardware
  • P-clips with mounting hardware (x5)
