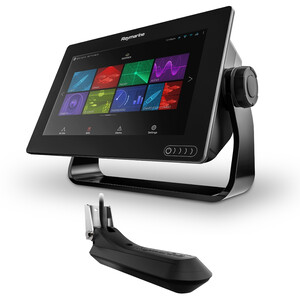

Axiom 9 RV MFD with RV-100 Transducer
Axiom 9 RV MFD with RV-100 Transducer
Raymarine

Axiom 9 RV MFD with RV-100 Transducer

Catalogue Code: 220461
£ 1,749.95 In Stock
Save £ 245.05 RRP £ 1,995.00
See Product Description Add to Wish List
  • Order within the next 11 hours 59 mins for dispatch today
  • Ask a question
Optional Extras Tick to add optional extras to your basket
EV-200 Autopilot Hydraulic Pack
EV-200 Autopilot Hydraulic Pack £2,349.95 Save £295.05 RRP £2,645.00
NGW-1 STNG NMEA0183 to Seatalk NG Gateway
NGW-1 STNG NMEA0183 to Seatalk NG Gateway £164.95 Save £5.28 RRP £170.23

View all 10 optional extras

  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
  • Questions & Answers
Description
Raymarine Axiom 9 RV MFD with RV-100 Transducer

The new Axiom MFD from Raymarine is reinventing navigation. With faster performance, intuitive operation, and leading-edge technology, Axiom delivers unmatched awareness, above and below the water line.



  • Powered by the all new, fast and fluid LightHouse 3 Operating system

  • RealVision 3D Sonar

  • Blazing-fast quad core performance

  • Rugged and sleek, all-glass construction for any helm

  • Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position updates and smooth on screen tracking


Axiom is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories, including Quantum radar,  FLIR thermal cameras,audio integration, instruments, cameras,and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connectionto the latest Raymarine apps for tablets and smartphones.


SIMPLY SUPERIOR SONAR



Gyro-Stabilized Sonar Technology - Gyro stabilization compensates for boat movement, delivering life-like 3D sonar imagery.


All-in-One Tranducers - RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.


Easy Fish Identification - Easily identify structure and locate fish with the life-like clarity of RealVision™ 3D sonar.


Wide Spectrum CHIRP Sonar - Transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting – hands down!


Powerful 4 Channel Sonar - Supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar.


New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating



Rugged, All-glass Touch Screen Display delivers a big screen experience in a small footprint. Optical bonding eliminates fogging and delivers brighter colours and great sunlight visibility


Support for the best charts from Navionics including Navionics+ and Platinum +


Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom’s waypoints, routes, and charts with Navionics mobile apps.


Radar Compatible with Quantum CHIRP Radar and Raymarine’s family of Digital, HD, and Super HD radars.


Mounting: AXIOM can be surface, bracket or rear-panel mounted using dedicated hardware options


USB Port for external drives, remote card readers and Smartphone charging.


Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.


Marine Audio Control – Turn up the volume and control NMEA2000 compatible marine audio systems


Uncluttered Radar New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays. LightHouse Live View Menu lets you see radar adjustments in real time.


User Profiles LightHouse 3 User Profiles saves your personal home screen and configuration preferences.


New Chart Modes Uncluttered menus with quick access to Simple, Detailed, and Fishing chart modes.


Specifications



  • Display Size 9" Optically Bonded LCD

  • Display Resolution 800 x 480 WVGA

  • Display Type Multitouch

  • Brightness 1,200 nits

  • Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)

  • Dimensions 244 x 158 x 77mm (9.65" x 6.22" x 3.00")

  • Weight 2.04kg (4.5lbs)

  • Mounting Top, Flush, Front, Bracket

  • Waterproof Rating IPX6 / IPX7

  • Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)

  • Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F)

  • Voltage 12V DC (8 V to 16 VDC)

  • Waterproofing IPX6

  • AIS Compatible

  • Ports: NMEA 2000, Ethernet, USB


In The Box



  • Axiom 9 RV MFD

  • RV-100 3D Transom mount transducer

  • Surface and trunnion mounting kits

  • Screen Cover

  • Mounting hardware

  • Power/data cable

  • Installation instructions
