Solix12 Mega Chirp SI G2N
Solix12 Mega Chirp SI G2N
Solix12 Mega Chirp SI G2N
Solix12 Mega Chirp SI G2N Solix12 Mega Chirp SI G2N Solix12 Mega Chirp SI G2N
Humminbird

Solix12 Mega Chirp SI G2N

Catalogue Code: 210481
£ 3,199.95 In Stock
Save £ 100.04 RRP £ 3,299.99
See Product Description Add to Wish List
  • Order now for dispatch next working day
  • Ask a question
Optional Extras Tick to add optional extras to your basket
  • Description
  • Availability
  • Size Guide
  • Delivery & Returns
Description
Humminbird Solix12 Mega Chirp SI G2N

When it comes to fishing, the larger your lure collection and the bigger your determination, the better your odds. That's why the new SOLIX™ Series has it all; every Humminbird innovation from MEGA Imaging™ and AutoChart® Live to Ethernet networking and Bluetooth® connectivity. Now showing on a massive 15" or 12" Cross Touch® display.

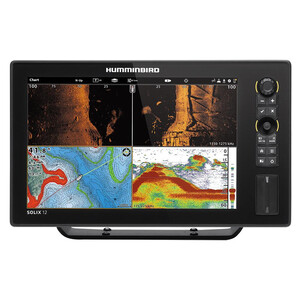

The SOLIX 12 SI features a large 12.1" display with LED backlight, CHIRP-ing MEGA Side Imaging, MEGA Down Imaging and 2D sonar. Includes GPS chartplotting, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping, and unit cover.

  • 455kHz Side Imaging provides 800 ft of side to side coverage.
  • 455kHz Down Imaging works to a depth of 400 feet.
  • 1.2 MHz Side Imaging provides 250 feet of side to side coverage.
  • 1.2 MHz Down Imaging works to a depth of 125 feet

*Optional 50 kHz transducers available for extreme deepwater.

Take command of your display like never before with Cross Touch, exclusive to the SOLIX Series. Everything you can do with the touchscreen, you can also do with the keypad-so rough conditions will never compromise your control. Some touch interfaces limit you to finger pointing. Not this one. Multi-gesture capability lets you navigate menus and activate features with a tap, swipe or pinch.

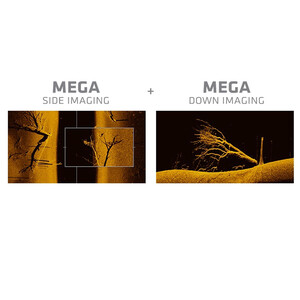

  • MEGA Side Imaging: Unprecedented under water clarity of coverage out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more output than standard Side Imaging Sonar.
  • MEGA Down Imaging: Unprecedented under water clarity of coverage up to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging Sonar.
  • CHIRP Digital Sonar: View details that other forms of sonar won't show you. Humminbird CHIRP Digital Sonar is engineered to help you see individual fish, clearly identify bait and structure, and reach greater depths and range.
  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
  • Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
  • Cross Touch® Interface: Control your fish finder using the touchscreen or the keypad—it's up to you. Cross Touch lets you quickly and intuitively access technologies on your terms, no matter your situation and conditions. Any menu navigation you can do on the touchscreen can also be done on the keypad and vice versa.
  • Humminbird Basemap Built-in: The enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, Minn Kota Talon, 360 Imaging and CHIRP Radar.
  • Bluetooth Networking: Keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. You can also take control of your most-used features with an optional Bluetooth remote (RC2).


Specifications

  • Display Size - Diagonal:12.1"
  • Display Pixel Matrix:800H x 1280V
  • Display Type:TFT Color
  • Display Colors Grayscale:16 bit
  • Sonar Standard:MEGA Side Imaging/MEGA Down Imaging, CHIRP Digital Sonar/DualBeam PLUS
  • Standard Sonar Coverage:20°, 60° & (2) 86° & (2) 55° @ -10db (Total of 180°)
  • Standard Sonar Frequency:83/200/455/800 kHz & 1.2 MHz
  • Sonar Optional:50kHz, 50/Low Airmar CHIRP and SM3000
  • Target Separation:2.5"
  • Power Output RMS:1000 Watts*
  • Power Output Peak to Peak:8000 Watts*
  • Depth Capability:125 ft(DI) 400 ft(DI-455kHz)1500 ft, 3500 ft* & 5000 ft*
  • Temperature:Built In Transducer
  • Speed:GPS Speed Included
  • Backlight:LED
  • Unit Size - Gimbal Mount:13.82"W x 9.55"H x 4.79"D
  • Mount A Type:Gimbal Mount
  • Unit Size - Indash Mount:13.82"W x 8.21"H x 4.79"D
  • Mount B Unit Size2:In-Dash
  • Mounting Options:Gimbal or Optional In-Dash

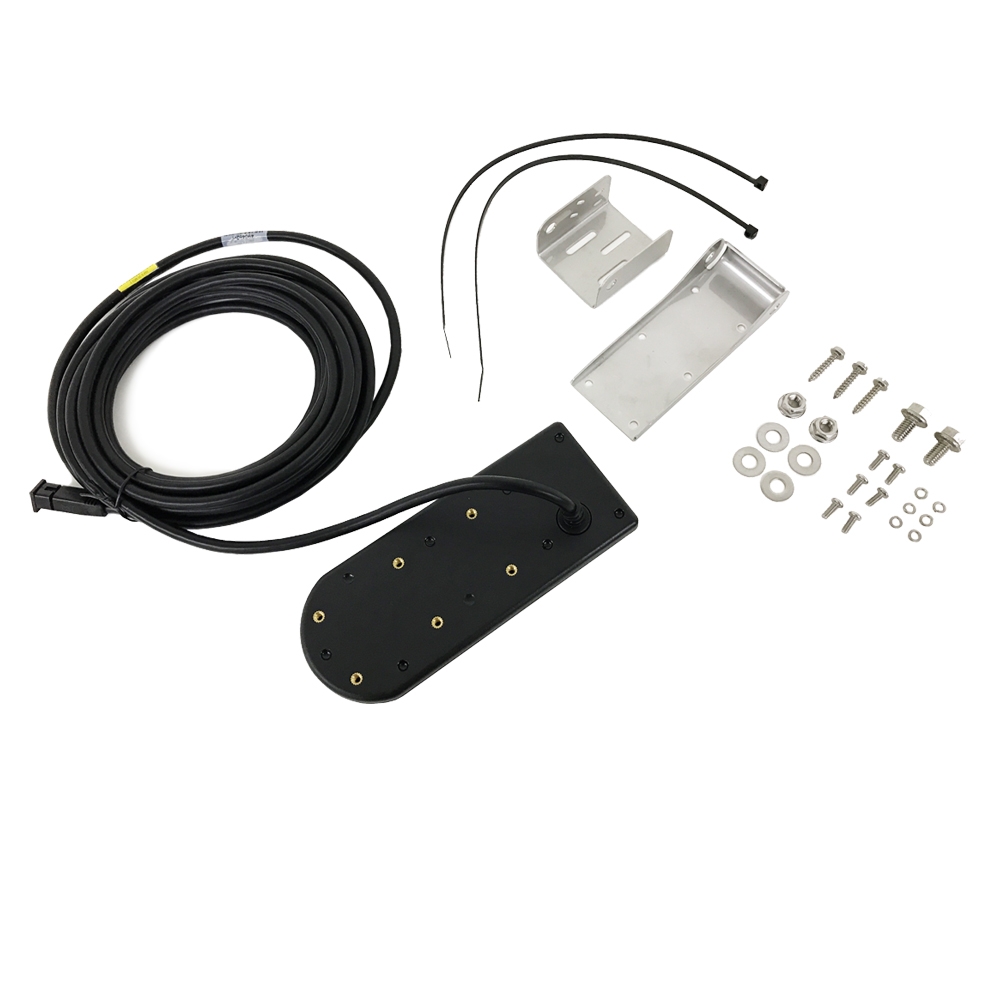

  • Transducer Standard:XM 14 20 MSI T
  • Transducer Mounting:Transom
  • Optional Sonar:50kHz, 50/Low Airmar CHIRP and SM3000
  • Power Input:10.8-20 VDC
  • Power Draw:3.9 Amps
  • GPS Receiver:Included
  • GPS Tracking:Included
  • GPS Chartplotting:Included
  • Waypoints, Routes, Tracks/Points:10,000, 50, 50/20,000
  • Humminbird Mapping:Optional
  • Navionics+:Optional
  • Navionics Platinum+:Optional
  • Platinum Capable:Optional
  • C-Map 4D:Not Supported
  • 360 Imaging:Optional
  • i-Pilot Link:Optional
  • HD Radar:Optional
  • NMEA 2000:Included
  • 5 Port Expansion Module:Optional
  • WeatherSense:Not Supported
  • Precision GPS:Included
  • Heading Sensor GPS:Optional
  • PC Connect:Not Supported
  • External GPS Receiver:Optional
  • AS Interlink:Not Supported
  • AIS Compatability:Optional
  • SwitchFire Sonar:Included
  • Screen Snap Shot:Included
  • Sonar Recording:Included
  • Humminbird PC:Included
  • Upgradable Internal Software:Included
  • Split Screen Zoom:Included
  • Split Screen Bottom Lock:Included
  • 3D Chart View:Included
  • Large Digits View:Not Supported
  • Wide/Narrow Cone Split Screen:Included
  • Custom View Selections:Included
  • Custom Digital Readout:Included
  • View Preset Keys:Not Supported
  • Temperature Graph:Included
  • Temperature Alarm:Included
  • Freeze Frame:Included
  • Instant Image Update:Included
  • Mark Structure on Sonar:Included
  • Selective Fish ID+:Included
  • Real Time Sonar:Included
  • Triplog:Included
  • X-Press Menu System:Included
  • Card Reader Available:Yes
  • # Card Slots:2
