Helix 9 Chirp Mega SI Plus GPS G3N Fishfinder chartplotter Combo
- Size Guide
- Delivery & Returns
Delivering up to 3X the output of standard Side Imaging®, MEGA Imaging technology took fish finding into the megahertz frequency for the very first time. Humminbird improved this technology even further by extending the depth range and expanding the side coverage areas, all while improving the crystal clear imagery.
See the underwater world like never before with the unprecedented clarity of new Humminbird MEGA + Imaging, available on select HELIX® models. MEGA + Side Imaging and MEGA+ Down Imaging is available on HELIX 8, 9,10 and 12 MEGA + SI CHIRP GPS combo models.
The HELIX 8 CHIRP MEGA SI+ GPS G3N features an 8" display, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS mapping, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping. Top it all off with Humminbird Basemap built-in.
- 455kHz Side Imaging provides 800 ft of side to side coverage.
- 455kHz Down Imaging works to a depth of 400 feet.
- 1.2 MHz Side Imaging provides 400 feet of side to side coverage.
- 1.2 MHz Down Imaging works to a depth of 200 feet
*Optional 50 kHz transducers available for extreme deepwater.

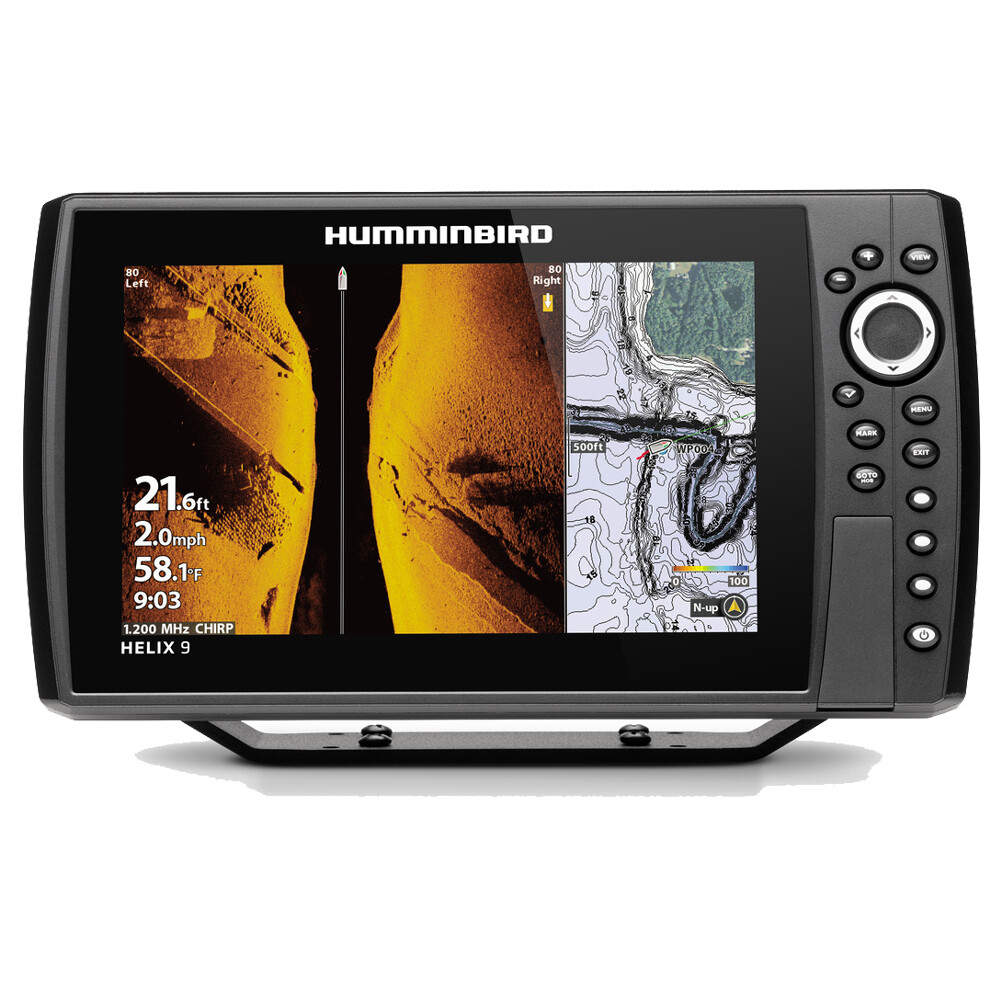

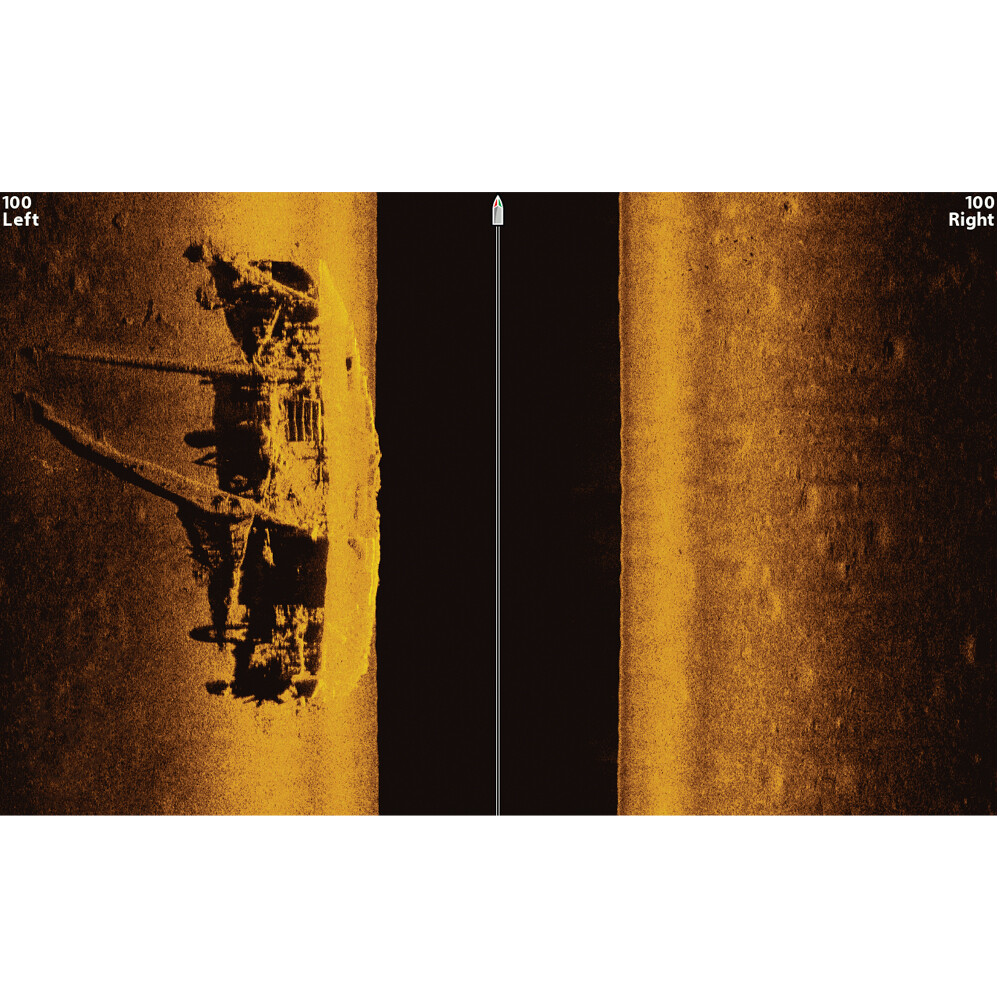

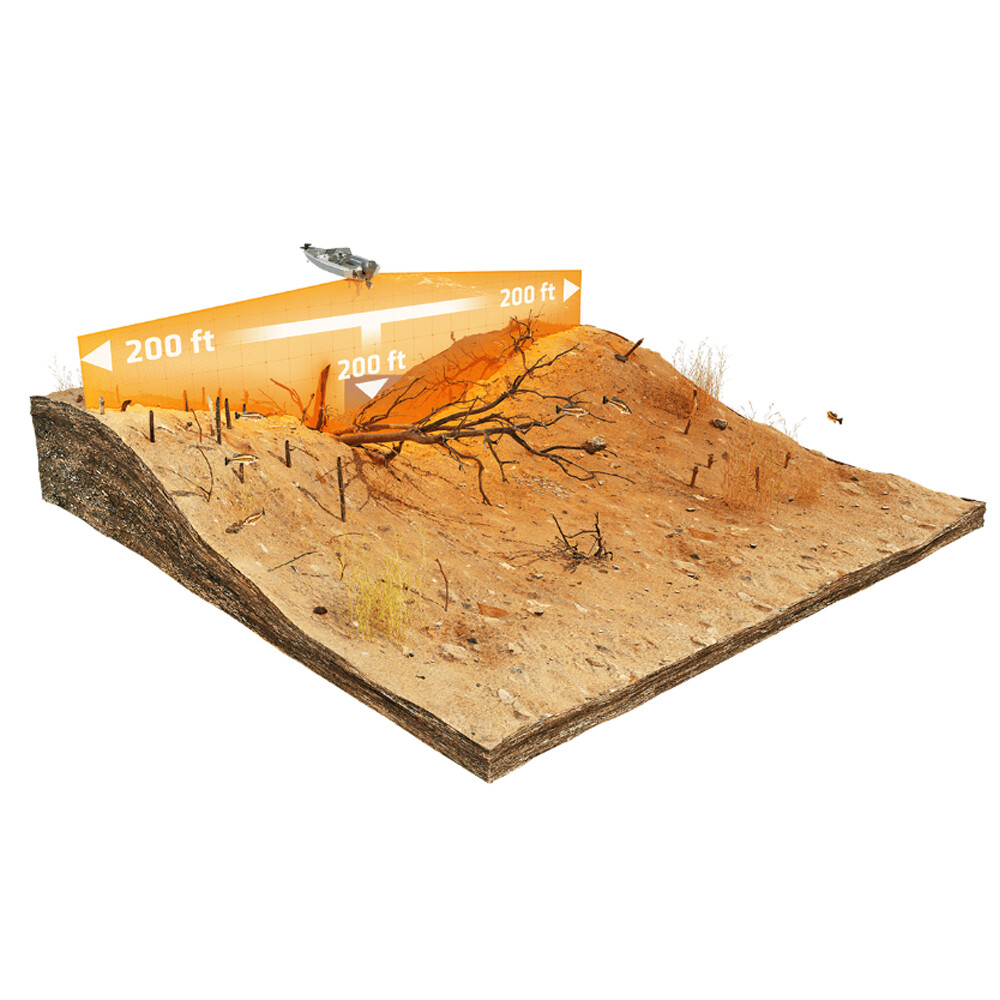

- NEW MEGA Side Imaging+: See the world below like never before with crystal-clear viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail than MEGA Side Imaging Sonar.

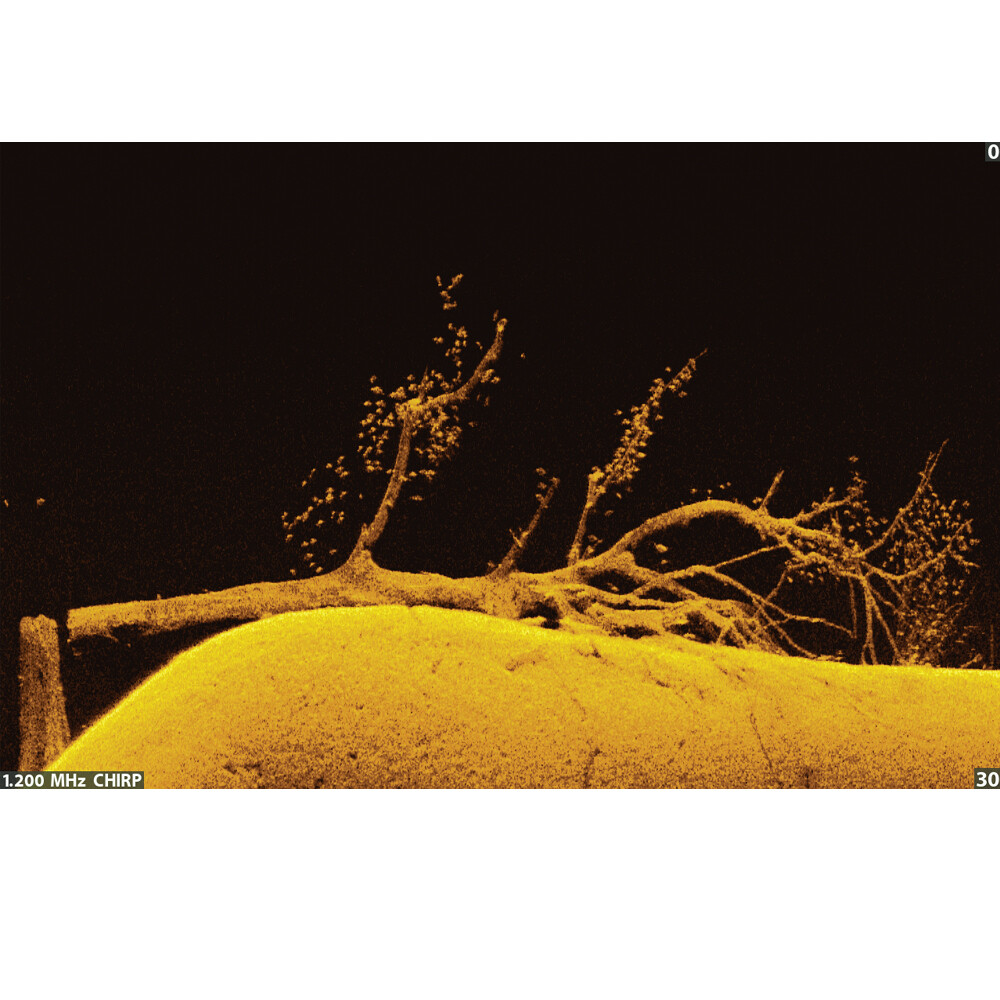

- NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.

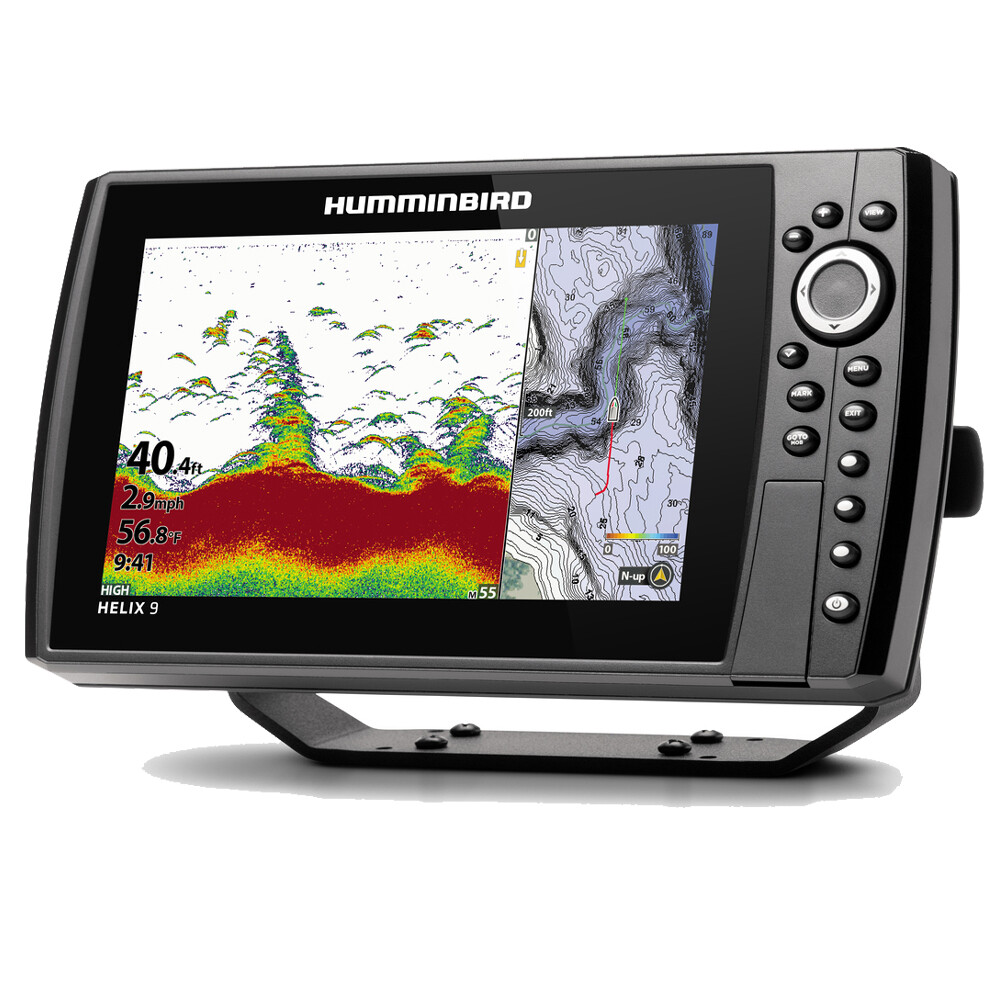

- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
- Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count

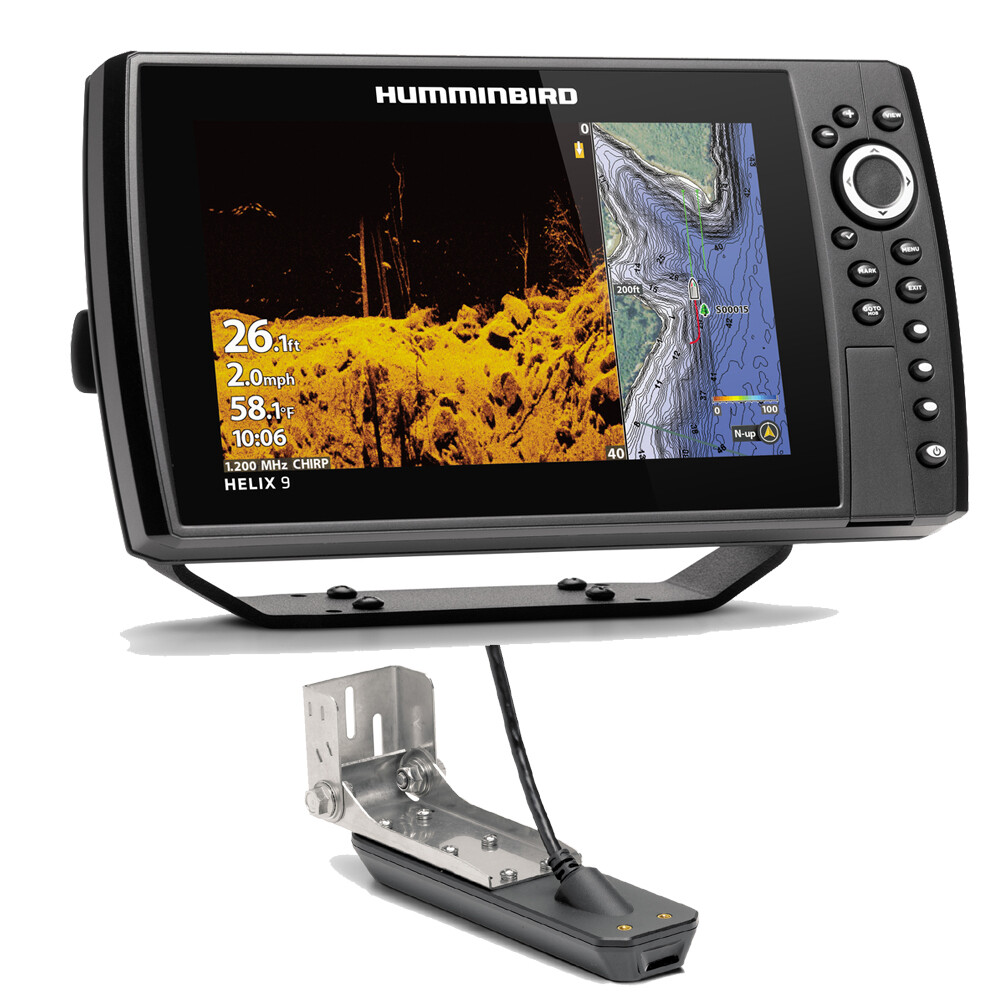

- Includes transducer and mounting hardware, power cable, gimbal mounting bracket.
- Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
- Interface Keypad Control
- Memory Card Slot Dual Micro SD
- Screen Snap Shot Included
- Sonar Recording Included
- Internal GPS Receiver
- Temperature Alarm and Graph
- Radar Compatible
- Minn Kota i-Pilot Link Compatibility
- 360 Imaging Compatibility
- Compatible with Navionics+ & Platinum+ charts
- AIS Compatible
- Call notifications when paired to a smartphone via Bluetooth
- Transom Mount Transducer Included: XM 9 HW MSI T
- Display Size – Diagonal 9"
- Display Pixel Matrix 1024H x 600V
- CHIRP - Frequencies Supported Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- CHIRP - Imaging-Frequencies Supported 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
- Depth-Down Imaging 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
- Power Draw 1 Amp
- Power Input 10.8-20 VDC
- Power Output Peak-to-Peak 8000 Watts
- Power Output RMS 1000 Watts
- Connections : NMEA 0183 (with optional cable), Ethernet, Bluetooth
- Waypoints, Routes, Tracks/Point: 2,750, 45, 50/20,000
- XM 9 HW MSI T Transom mount Transducer cable length: 20ft
- Dimensions: 168.22 H x 304.75 W x 100.03 D mm
- IPX Rating: IPX7 Waterproof/Submersible @ 1 m for 30 minutes
In the box
- Helix 9 G3N Chirp Mega+
- XM 9 HW MSI T Transom mount Transducer
- Mounting Bracket & Knobs
- Power Cable
